Gigabyte B560I AORUS PRO AX User Manual

Temperature sensors
- 4 -

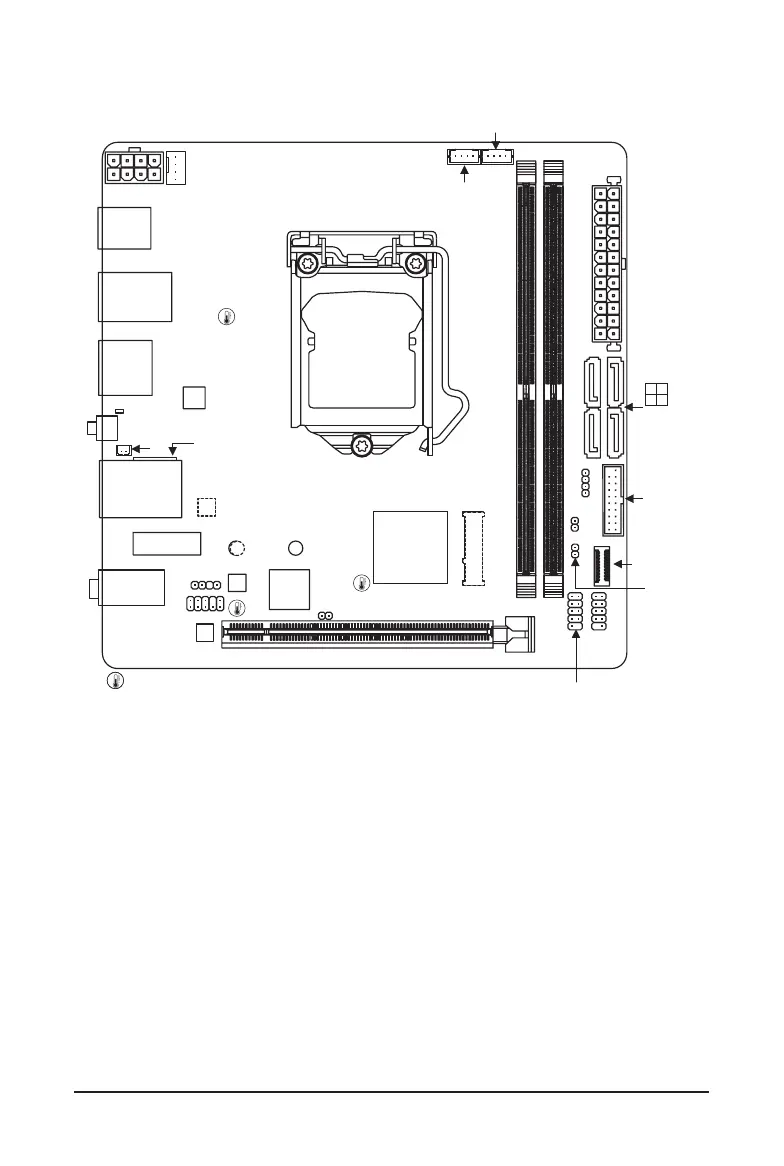

B560I AORUS PRO AX Motherboard Layout
* The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
Box Contents
5 B560I AORUS PRO AX motherboard 5 Two SATA cables
5 User's Manual 5 M.2 screw(s)/M.2 standoff(s)
5 Motherboard driver disc 5 One antenna
5 One RGB LED strip extension cable 5 Two fan header extension cables
(Note) The connector/chip is on the back of the motherboard.
U32_20
U32_LAN
RU32G2 U32C
DP_HDMI20
LGA1200
ATX
AUDIO
M2_WIFI
DDR4_A1 DDR4_B1
ATX_12V_2X4
Intel
®
B560
CLR_CMOS
LED_C
M_BIOS
PCIEX16
F_USB1
M2A_CPU
M2P_SB
(Note)
CODEC
F_PANEL
SPEAKER
F_U32G1
CI
F_AUDIO
BAT
D_LED
SYS_FAN2
SYS_FAN1
CPU_FAN
iTE
®
Super I/O
6080
SATA3
Intel
®
2.5GbE LAN
(Note)
4 5 3 2
B560I AORUS PRO AX
QFLASH_PLUS
QFLED
F_U32CG1
60
(Note)
80
(Note)
BAT
USB 3.2 Gen 1 Hub

Gigabyte B560I AORUS PRO AX Specifications

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2933, 3000, 3200 MHz
Supported storage drive types	HDD & SSD
Number of storage drives supported	6
Supported storage drive interfaces	M.2, SATA III
Maximum resolution	4096 x 2304 pixels
Parallel processing technology support	Not supported
USB 2.0 connectors	1
Number of SATA III connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Headphone outputs	3
USB connector type	USB Type-A, USB Type-C
DisplayPort version	1.2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.1
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX200
Ethernet interface type	2.5 Gigabit Ethernet
Component for	PC
Motherboard chipset	Intel B560 Express
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Windows operating systems supported	Windows 10 x64
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	256 Mbit
Desktop Management Interface (DMI) version	2.7
Bundled software	Norton Internet Security, cFosSpeed
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170 mm
