Gigabyte B650 A ELITE AX ICE User Manual

- 18 -

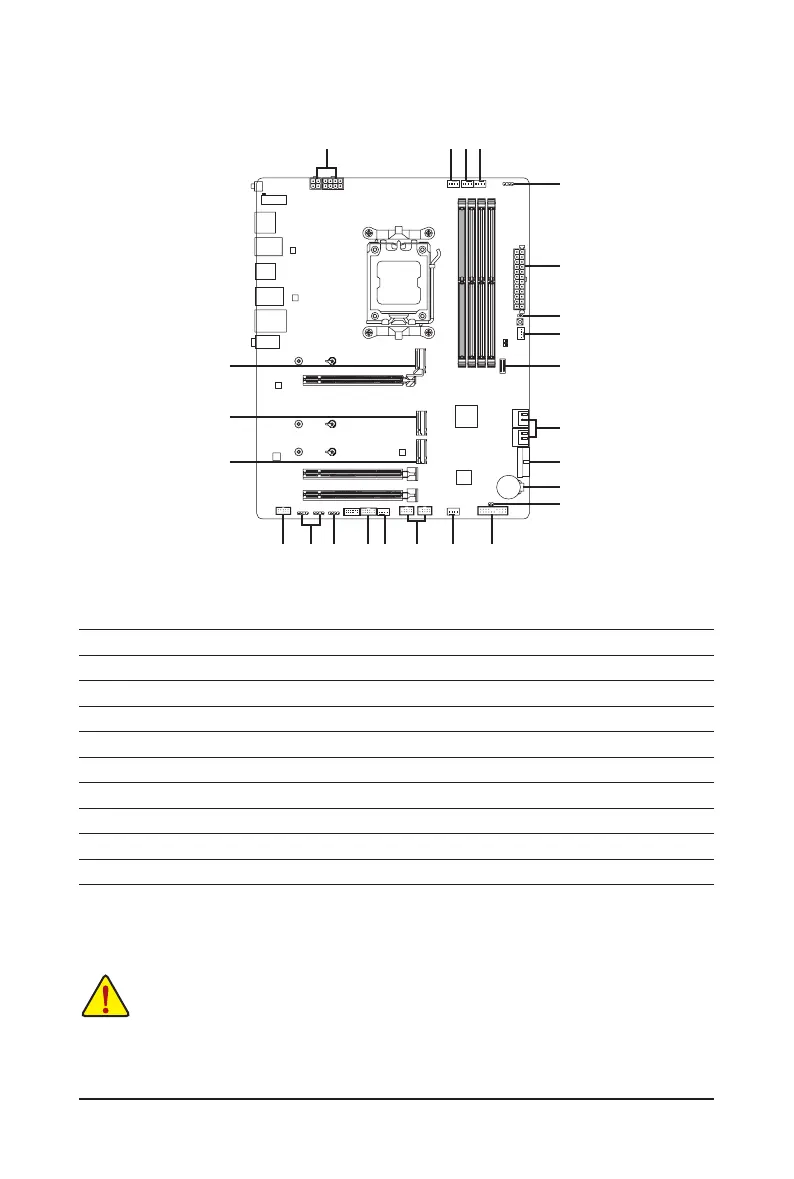

2-8 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1) ATX_12V/ATX_12V1
2) ATX
3) CPU_FAN
4) SYS_FAN1/2/3
5) SYS_FAN4_PUMP
6) CPU_OPT
7) ARGB_V2_1/ARGB_V2_2/ARGB_V2_3
8) LED_C
9) SATA3 0/1/2/3
10) M2A_CPU/M2B_CPU/M2C_SB
11) F_PANEL
12) F_AUDIO
13) F_U320G
14) F_U32
15) F_USB1/F_USB2
16) SPI_TPM
17) BAT
18) CLR_CMOS
19) RST
7
9
2
12
1 6
7
3
10
4
10
10
11
4
16
5
13
14
15
18
17
4
19
8

Gigabyte B650 A ELITE AX ICE Specifications

General

Chipset	AMD B650
Form Factor	ATX
Memory Type	DDR5
Memory Slots	4
CPU Socket	AM5
Storage Interface	4 x SATA 6Gb/s
Networking	Wi-Fi 6E
Audio	Realtek ALC1220-VB
RGB Headers	2 x Addressable LED, 2 x RGB LED
Memory Speed	DDR5 6400+(OC)
