• Be sure to connect fan cables to the fan headers to prevent your CPU and system from
overheating. Overheating may result in damage to the CPU or the system may hang.
• These fan headers are not conguration jumper blocks. Do not place a jumper cap on the headers.

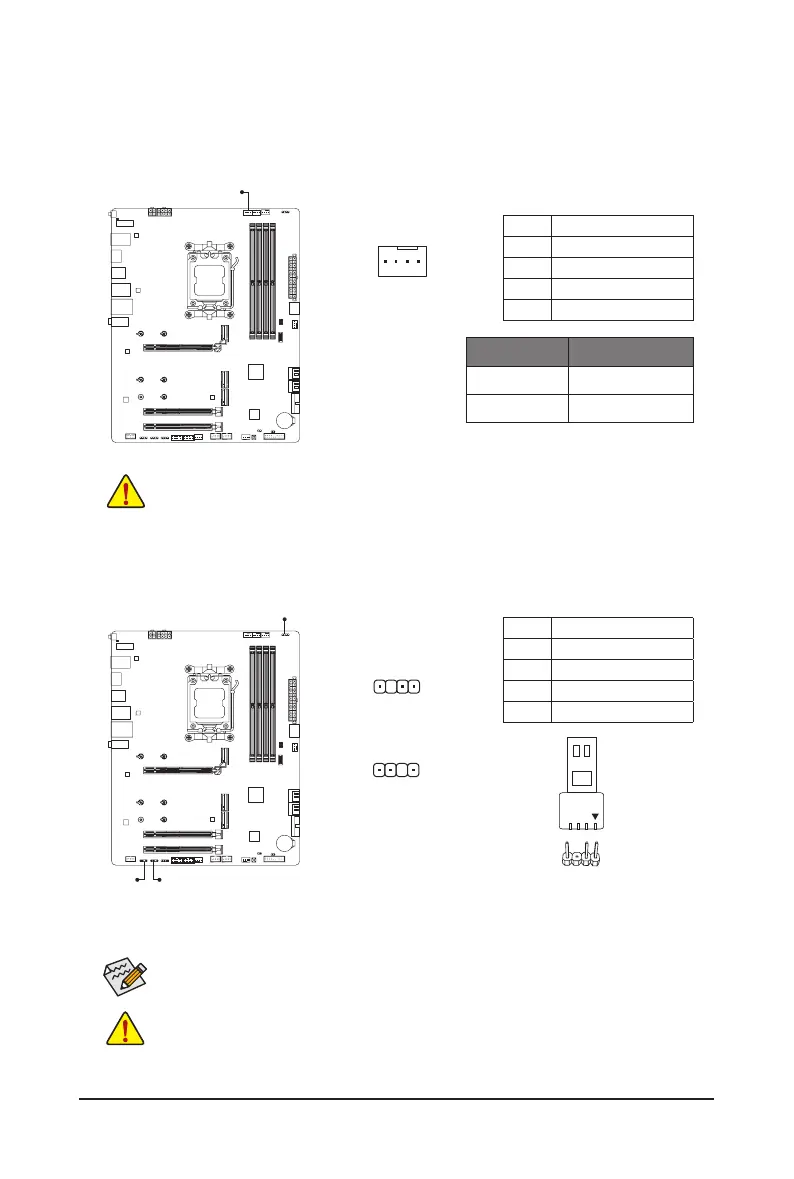

6) CPU_OPT (CPU Fan/Water Cooling Pump Header)
The fan/pump header is 4-pin and possesses a foolproof insertion design. Most fan headers possess a
foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation
(the black connector wire is the ground wire). The speed control function requires the use of a fan with fan
speed control design.
Pin No. Denition
1 GND
2 Voltage Speed Control
3 Sense
4 PWM Speed Control
DEBUG
PORT
G.QBOFM
1
Connector CPU_OPT
Maximum Current 2A
Maximum Power 24W
7) ARGB_V2_1/ARGB_V2_2/ARGB_V2_3 (Addressable RGB Gen2 LED Strip Headers)
The headers can be used to connect a standard 5050 addressable RGB Gen2 LED strip, with maximum
power rating of 3A (5V) and maximum number of 256 LEDs.
1
F_USB30
F_U B_ 
F_  F_ 
 _ B
BS_ B
SB_ B
_S  S_ _ B _U _ B
 
 
S  
 
123
 
123
 
123
 
123
1
1
1
1
BSS
S
_S 
SSU
 
1 2 3  
 S3
BSSS

U
 __ 3
F_USB3F
S  _ S  _
S  _
SF
 
B_
B_
F _0
S S
_0F
_F
_
_
__B
 
U
S  _S
_
SF_
B 
USB0_B
B_
B_
F_USB3

F_USB303

_

_3U
S_
_S
SS_F 
_
_
F 
_SB
F_
F_
ARGB_V2_1/
ARGB_V2_3
1
F_USB30
F_U B_ 
F_  F_ 
 _ B
BS_ B
SB_ B
_S  S_ _ B _U _ B
 
 
S  
 
123
 
123
 
123
 
123
1
1
1
1
BSS
S
_S 
SSU
 
1 2 3  
 S3
BSSS

U
 __ 3
F_USB3F
S  _ S  _
S  _
SF
 
B_
B_
F _0
S S
_0F
_F
_
_
__B
 
U
S  _S
_
SF_
B 
USB0_B
B_
B_
F_USB3

F_USB303

_

_3U
S_
_S
SS_F 
_
_
F 
_SB
F_
F_
ARGB_V2_2
For how to turn on/off the lights of the LED strip, please navigate to the "Unique Features" page
of GIGABYTE's website.
Connect your addressable RGB Gen2 LED strip to the header. The power pin (marked with a triangle on the
plug) of the LED strip must be connected to Pin 1 of the addressable LED strip header. Incorrect connection
may lead to the damage of the LED strip.
• To avoid abnormal LED behavior, do not connect addressable RGB Gen1 LED strips and
addressable RGB Gen2 LED strips to the same header at the same time.
• Before installing or removing the devices, be sure to turn off the devices and your computer.
Unplug the power cord from the power outlet to prevent damage to the devices.
Addressable RGB
Gen2 LED Strip
1
Pin No. Denition
1 V (5V)
2 Data
3 No Pin
4 GND
CPU_OPT
ARGB_V2_2
ARGB_V2_1
ARGB_V2_3

Gigabyte B650E AORUS ELITE X AX ICE Specifications

General

Processor socket	Socket AM5
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen™ 7
Maximum number of SMP processors	1
Maximum internal memory supported by processor	192 GB
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	8000, 7800, 7600, 7200, 7000, 6800, 6666, 6600, 6400, 6200, 6000, 5600, 5200, 4800, 4400 MHz
Supported memory clock speed (max)	8000 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 48GB
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	AMD RZ616
Ethernet interface type	2.5 Gigabit Ethernet
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
RAID levels	0, 1, 5, 10
Number of HDDs supported	3
Supported storage drive types	HDD & SSD
Number of storage drives supported	7
Supported storage drive interfaces	M.2, SATA III
Cables included	SATA
Bundled software	Norton Internet Security (OEM version) LAN bandwidth management software
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	256 Mbit
Desktop Management Interface (DMI) version	2.7
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	-
Component for	PC
Product color	White
Motherboard chipset	AMD B650
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Battery type	CR2032
Battery weight	3 g
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Country of origin	China
Quantity per shipping (inner) case	1 pc(s)
Warranty period	3 year(s)
Package depth	270 mm
Package width	335 mm
Package height	80 mm
Package weight	2190 g

Weight and Dimensions

Depth	244 mm
Width	305 mm
Height	35 mm
