Gigabyte B650I AX User Manual

- 14 -

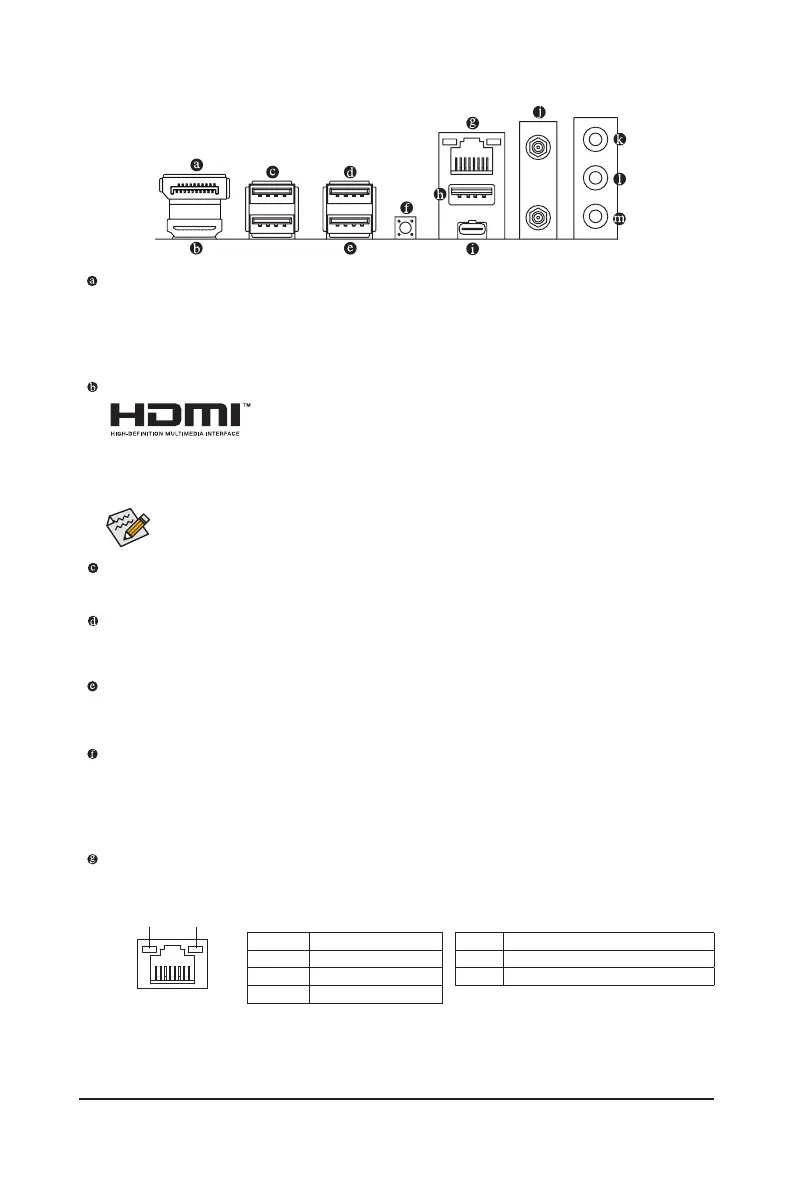

2-6 Back Panel Connectors
DisplayPort
DisplayPort delivers high quality digital imaging and audio, supporting bi-directional audio transmission.
DisplayPort can support the HDCP 2.3 content protection mechanism. You can use this port to connect
your DisplayPort-supported monitor. Note: The DisplayPort Technology can support a maximum resolution
of 3840x2160@144 Hz but the actual resolutions supported depend on the monitor being used.
HDMI Port
The HDMI port is HDCP 2.3 compliant and supports Dolby TrueHD and DTS
HD Master Audio formats. It also supports up to 192KHz/24bit 7.1-channel
LPCM audio output. You can use this port to connect your HDMI-supported monitor. The maximum
supported resolution is 4096x2160@60 Hz, but the actual resolutions supported are dependent on the
monitor being used.
USB 2.0/1.1 Port
The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices.
USB 3.2 Gen 1 Port
The USB 3.2 Gen 1 port supports the USB 3.2 Gen 1 specication and is compatible to the USB 2.0
specication. Use this port for USB devices.
USB 2.0/1.1 Port (Q-Flash Plus Port)
The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices. Before using Q-Flash
Plus
(Note)
, make sure to insert the USB ash drive into this port rst.
Q-Flash Plus Button
(Note)
Q-Flash Plus allows you to update the BIOS when your system is off (S5 shutdown state). Save the latest
BIOS on a USB thumb drive and plug it into the dedicated port, and then you can now ash the BIOS
automatically by simply pressing the Q-Flash Plus button. The QFLED will ash when the BIOS matching
and ashing activities start and will stop ashing when the main BIOS ashing is complete.
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 2.5 Gbps data rate. The following
describes the states of the LAN port LEDs.
After installing the DisplayPort/HDMI device, make sure to set the default sound playback device
to DisplayPort/HDMI. (The item name may differ depending on your operating system.)
(Note) To enable the Q-Flash Plus function, please navigate to the "Unique Features" page of GIGABYTE's
website for more information.
Activity LED
Speed LED
LAN Port
Speed LED:
State Description
Orange 2.5 Gbps data rate
Green 1 Gbps data rate
Off 100 Mbps data rate
Activity LED:
State Description
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring

Gigabyte B650I AX Specifications

General

Warranty period	3 year(s)
Processor socket	Socket AM5
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen™ 7
Maximum number of SMP processors	1
Maximum internal memory supported by processor	96 GB
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	4400, 4800, 5200, 5600, 6000, 6200, 6400 MHz
Supported memory clock speed (max)	6400 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
LAN controller	Realtek RTL8125
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Realtek RTL8852CE
Ethernet interface type	2.5 Gigabit Ethernet
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB connector type	USB Type-A, USB Type-C
DisplayPort version	1.4
USB 2.0 ports quantity	3
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Package depth	180 mm
Package width	222 mm
Package height	65 mm
Package weight	790 g
Cables included	SATA
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	256 Mbit
Desktop Management Interface (DMI) version	2.7
Battery type	CR2032
Battery weight	3 g
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
DirectX version	12.0
Maximum resolution	7680 x 4320 pixels
Parallel processing technology support	Not supported
Audio chip	Realtek ALC897
Component for	PC
Product color	Brown
Motherboard chipset	AMD B650
PC health monitoring	FAN, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Country of origin	China
Quantity per shipping (inner) case	1 pc(s)

Weight and Dimensions

Width	170 mm
Height	35 mm
