Gigabyte B650I AX User Manual

- 18 -

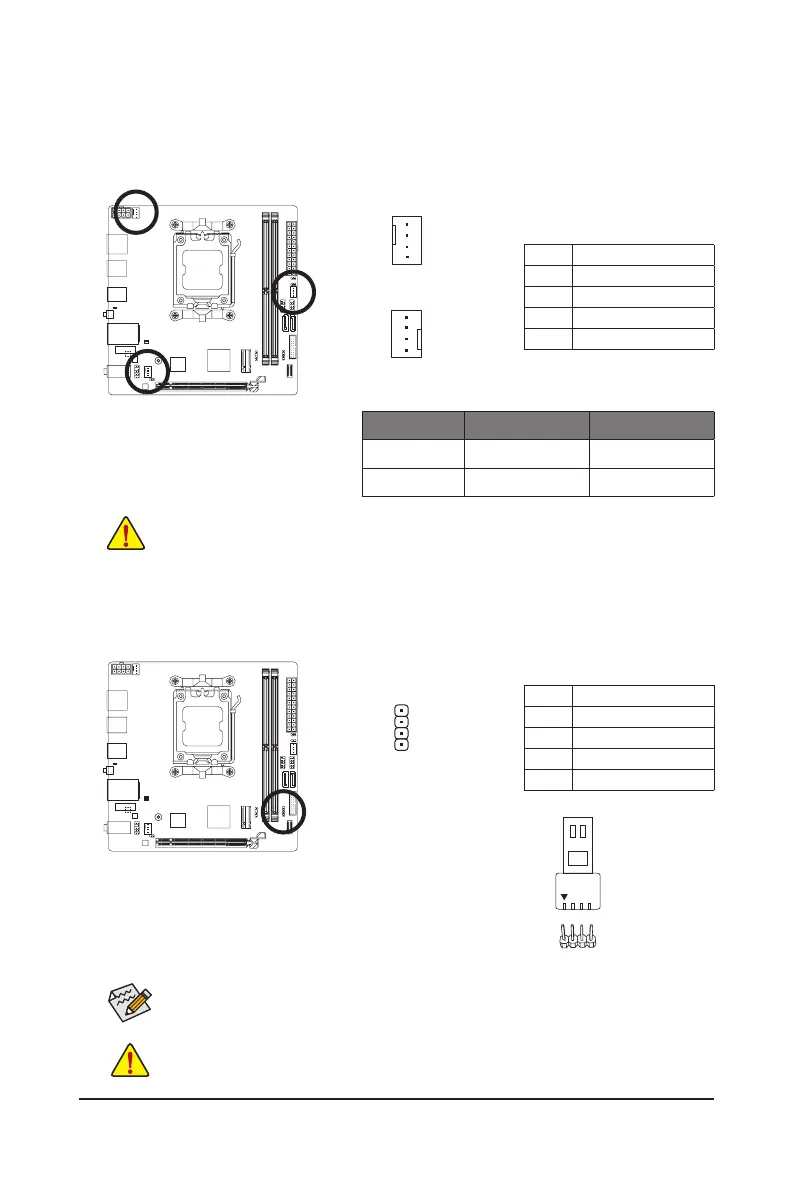

3/4) CPU_FAN/SYS_FAN1/2 (Fan Headers)
All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design.
When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is
the ground wire). The speed control function requires the use of a fan with fan speed control design. For
optimum heat dissipation, it is recommended that a system fan be installed inside the chassis.
Pin No. Denition
1 GND
2 Voltage Speed Control
3 Sense
4 PWM Speed Control
• Be sure to connect fan cables to the fan headers to prevent your CPU and system from
overheating. Overheating may result in damage to the CPU or the system may hang.
• These fan headers are not conguration jumper blocks. Do not place a jumper cap on the headers.
Connector CPU_FAN SYS_FAN1/2
Maximum Current 2A 2A
Maximum Power 24W 24W
5) LED_C (RGB LED Strip Header)
The header can be used to connect a standard 5050 RGB LED strip (12V/G/R/B), with maximum power
rating of 2A (12V) and maximum length of 2m.
Pin No. Denition
1 12V
2 G
3 R
4 B
Connect your RGB LED strip to the header. The power pin (marked with a
triangle on the plug) of the LED strip must be connected to Pin 1 (12V) of
this header. Incorrect connection may lead to the damage of the LED strip.
RGB LED Strip
1
12V
Before installing or removing the devices, be sure to turn off the devices and your computer. Unplug
the power cord from the power outlet to prevent damage to the devices.
For how to turn on/off the lights of the LED strip, please navigate to the "Unique Features" page
of GIGABYTE's website.
SYS_FAN1
DEBUG PORT
G.QBOFM
1
DEBUG PORT
G.QBOFM
1
CPU_FAN/SYS_FAN2
1
DEBUG PORT
G.QBOFM

Gigabyte B650I AX Specifications

General

Warranty period	3 year(s)
Processor socket	Socket AM5
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen™ 7
Maximum number of SMP processors	1
Maximum internal memory supported by processor	96 GB
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	4400, 4800, 5200, 5600, 6000, 6200, 6400 MHz
Supported memory clock speed (max)	6400 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
LAN controller	Realtek RTL8125
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Realtek RTL8852CE
Ethernet interface type	2.5 Gigabit Ethernet
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB connector type	USB Type-A, USB Type-C
DisplayPort version	1.4
USB 2.0 ports quantity	3
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Package depth	180 mm
Package width	222 mm
Package height	65 mm
Package weight	790 g
Cables included	SATA
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	256 Mbit
Desktop Management Interface (DMI) version	2.7
Battery type	CR2032
Battery weight	3 g
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
DirectX version	12.0
Maximum resolution	7680 x 4320 pixels
Parallel processing technology support	Not supported
Audio chip	Realtek ALC897
Component for	PC
Product color	Brown
Motherboard chipset	AMD B650
PC health monitoring	FAN, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Country of origin	China
Quantity per shipping (inner) case	1 pc(s)

Weight and Dimensions

Width	170 mm
Height	35 mm
