Gigabyte B650M C User Manual

- 4 -

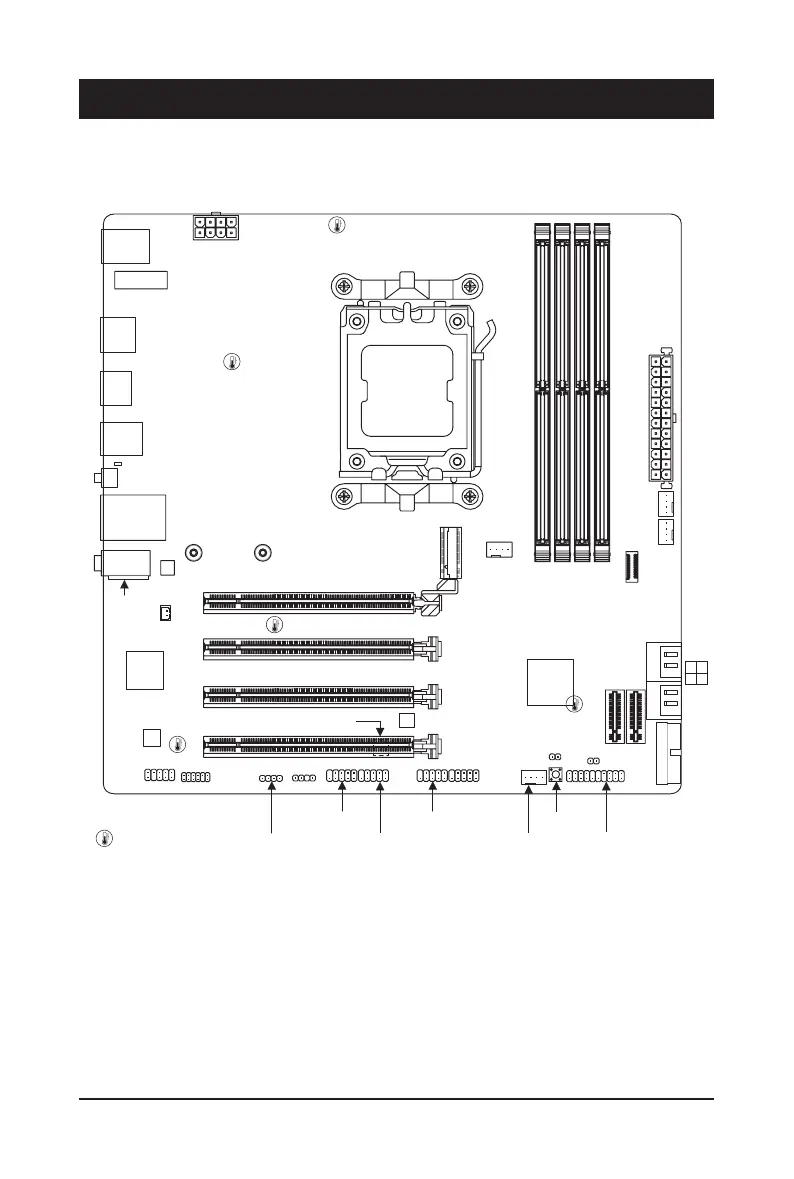

1-1 Motherboard Layout
Chapter 1 Product Introduction
Temperature sensor
U32G2
HDMI
USB30_LAN
SOCKET AM5
ATX
AUDIO
DDR5_A1 DDR5_A2 DDR5_B1 DDR5_B2
BAT
AMD
Chipset
CLR_CMOS
M_BIOS
CODEC
PCIEX16
PCIEX1_1
PCIEX1_2
F_U32C
F_U32
B650M C
SYS_FAN1
F_USB2
D_LED1
F_AUDIO
F_USB1
LED_C1
ESPI_DB
F_PANEL
CPU_FAN
ATX_12V
KB_MS_USB30
SATA3
2 0 3 1
SYS_FAN2
RST
R_USB
QFLASH_PLUS
QFLED
80
110
M2A_CPU
Realtek
®
GbE LAN
iTE
®
Super I/O
U32C
M2_WIFI
SYS_FAN3
PCIEX1_3
F_USB3
F_USB4 RST_SW
BAT
M2X_SB M2Y_SB
USB 2.0 Hub

Gigabyte B650M C Specifications

General

Form Factor	Micro ATX
Chipset	AMD B650
Socket	AM5
Memory Type	DDR5
Maximum Memory	128 GB
Memory Slots	4
PCIe Slots	1 x PCIe 4.0 x16
Audio	Realtek ALC897
PCIe x1 Slots	1
Storage Interface	SATA 6Gb/s
M.2 Slots	2
USB Ports	USB 2.0
Network	2.5GbE LAN
Memory Speed	6400(OC)
