Gigabyte B760 GAMING X AX User Manual

- 4 -

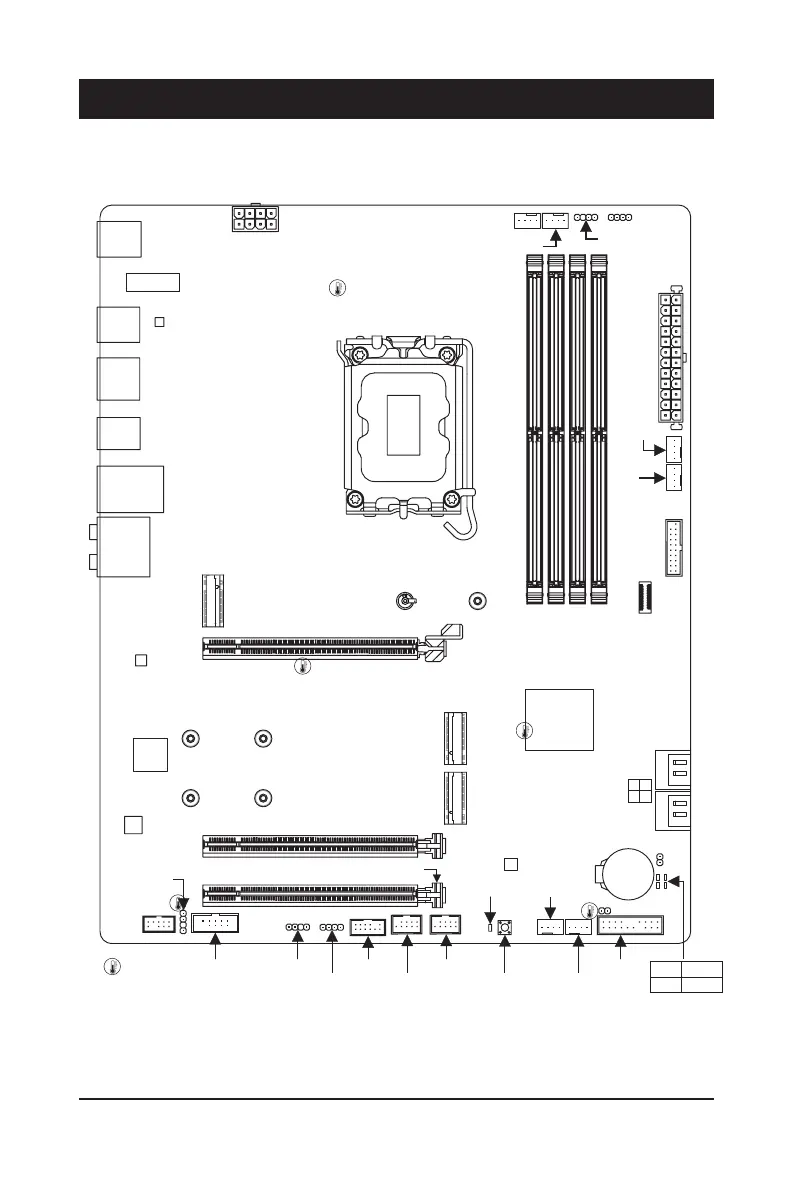

1-1 Motherboard Layout
Chapter 1 Product Introduction
M2_WIFI j
R_USB20_1
R_USB20_2
CPU_OPT
CPU_FAN
LGA1700
ATX
SPDIF_O
AUDIO
BAT
ATX_12V_2X4
F_U32
F_U32C
CODEC
CLR_CMOS
M_BIOS
U32G2_LAN
PCIEX1_1
PCIEX1_2
PCIEX16
iTE
®
Super I/O
Realtek
®
2.5GbE LAN
F_USB2 QFLASH_
PLUS
SYS_FAN4_
PUMP
LED_C1
F_USB1SPI_TPMCOM
F_AUDIO
F_PANELD_LED1
CPU DRAM
VGA BOOT
D_LED2
LED_C2
SYS_FAN1
SYS_FAN2
USB 2.0 Hub
USB 2.0 Hub
QFLED SYS_FAN3
Intel
®
B760
DDR5_A1 DDR5_A2 DDR5_B1 DDR5_B2
SATA3
5 7 4 6
B760 GAMING X AX B760 GAMING X
M2P_SB
80110
M2M_SB
80110
M2A_CPU
80 110
j Only for B760 GAMING X AX.
Temperature
sensor
U32C
U32
DP_HDMI
RST

Gigabyte B760 GAMING X AX Specifications

General

Chipset	Intel B760
Form Factor	ATX
Socket	LGA 1700
Memory Slots	4
Maximum Memory Supported	128 GB
M.2 Slots	3
SATA Ports	4
Audio	Realtek ALC897
Memory Support	DDR4
Memory Speed	DDR4 5333(O.C.)
PCIe Slots	1 x PCIe 5.0 x16
USB Ports	1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1, 4 x USB 2.0
Networking	2.5GbE LAN, Wi-Fi 6E
RGB Headers	2 x RGB, 2 x ARGB
