- 11 -
Do not force to engage the CPU socket locking lever when the CPU is not installed correctly
as this would damage the CPU and CPU socket.

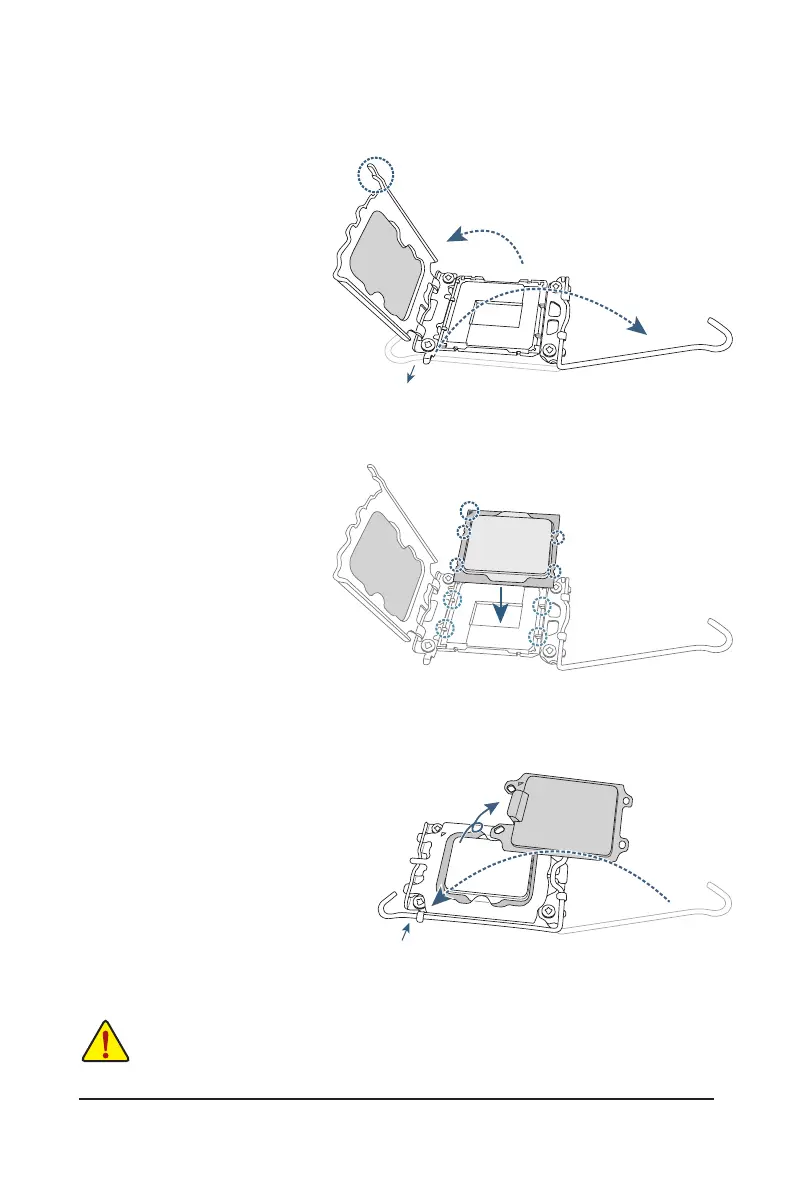

B. Installing the CPU
Follow the steps below to correctly install the CPU into the motherboard CPU socket.
w
u
v
jGently press the CPU socket lever handle
down and away from the socket.
kCompletely lift up the CPU socket lock-
ing lever.
lUse the finger tab on the side of the
metal load plate to lift open the metal
load plate with the plastic protective cover
attached to it.
Hold the CPU with your ngers by the edges.
Align the CPU pin one marking (triangle) with
the pin one corner of the CPU socket (or you
may align the CPU notches with the socket
alignment keys) and gently insert the CPU
into position.
Make sure the CPU is properly installed and
then close the load plate. The plastic protec-
tive cover will pop off, just remove it. Secure
the lever under its retention tab to complete
the installation of the CPU.
* Always replace the plastic protective cover
when the CPU is not installed to protect the
CPU socket.
j
k
l
Finger Tab
Pin One
j
k
l

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Gigabyte B760M AORUS ELITE X AX and is the answer not in the manual?

Gigabyte B760M AORUS ELITE X AX Specifications

General IconGeneral
Warranty period3 year(s)
Processor manufacturerIntel
Compatible processor seriesIntel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Gold
Supported processor socketsLGA 1700
Maximum number of SMP processors1
Maximum internal memory supported by processor192 GB
ECCYes
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR5-SDRAM
Maximum internal memory128 GB
Supported memory clock speeds4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266 MHz
Supported memory clock speed (max)8266 MHz
Supported memory module capacities1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth version5.3
Top Wi-Fi standardWi-Fi 6E (802.11ax)
WLAN controller modelIntel Wi-Fi 6E AX211
Ethernet interface type5 Gigabit Ethernet
USB 2.0 connectors2
USB connector typeUSB Type-A, USB Type-C
DisplayPort version1.2
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity0
RAID levels0, 1, 5, 10
Supported storage drive typesHDD & SSD
Number of storage drives supported6
Supported storage drive interfacesM.2, SATA III
Package depth268 mm
Package width270 mm
Package height68 mm
Package weight1660 g
Cables includedSATA
Bundled softwareNorton Internet Security
BIOS typeUEFI AMI
ACPI version5.0
BIOS memory size256 Mbit
Desktop Management Interface (DMI) version2.7
Battery typeCR2032
Battery weight3 g
Battery technologyLithium-Manganese Dioxide (LiMnO2)
DirectX version12.0
Maximum resolution4096 x 2304 pixels
Parallel processing technology supportNot supported
Audio chipRealtek ALC897
Component forPC
Product colorWhite
Power source typeATX
Motherboard chipsetIntel B760 Express
PC health monitoringFAN, Temperature, Voltage, Water cooling
Audio output channels7.1 channels
Motherboard form factormicro ATX
Windows operating systems supportedWindows 11 x64
Country of originChina
Quantity per shipping (inner) case1 pc(s)
Weight and Dimensions IconWeight and Dimensions
Width244 mm
Height35 mm
