- 19 -

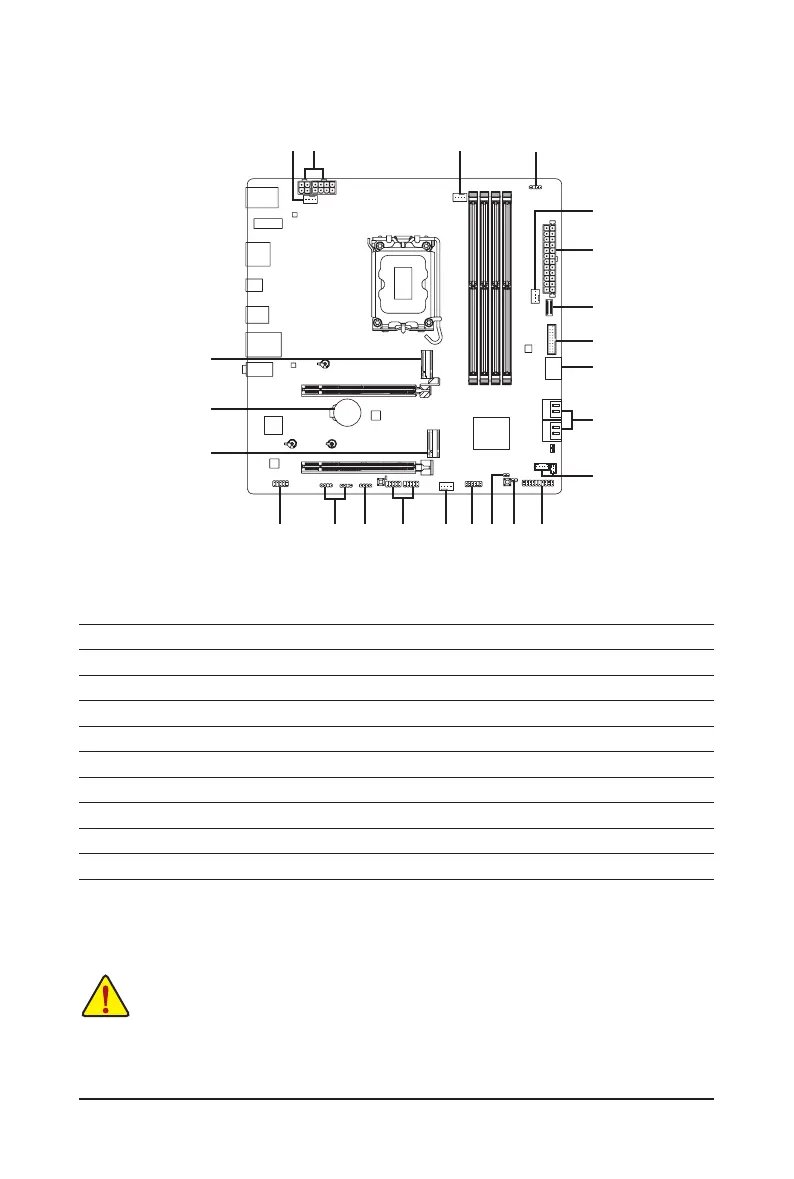

2-8 Internal Connectors
913 15
12
2
11
7
4
5
14
410
8
8
53
1) ATX_12V_2X2/ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/SYS_FAN2/SYS_FAN3
5) ARGB_V2_1/ARGB_V2_2/ARGB_V2_3
6) LED_C
7) SATA3 4/5/6/7
8) M2A_CPU/M2P_SB
9) F_PANEL
10) F_AUDIO
11) F_U32C
12) F_U32
13) F_USB1/F_USB2
14) F_HDMI
15) SPI_TPM
16) THB_C1/THB_C2
17) CLR_CMOS
18) RST
19) BAT
Read the following guidelines before connecting external devices:
First make sure your devices are compliant with the connectors you wish to connect.
Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
6
16
17
18
19
14

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Gigabyte B760M AORUS ELITE X AX and is the answer not in the manual?

Gigabyte B760M AORUS ELITE X AX Specifications

General IconGeneral
Warranty period3 year(s)
Processor manufacturerIntel
Compatible processor seriesIntel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Gold
Supported processor socketsLGA 1700
Maximum number of SMP processors1
Maximum internal memory supported by processor192 GB
ECCYes
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR5-SDRAM
Maximum internal memory128 GB
Supported memory clock speeds4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266 MHz
Supported memory clock speed (max)8266 MHz
Supported memory module capacities1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth version5.3
Top Wi-Fi standardWi-Fi 6E (802.11ax)
WLAN controller modelIntel Wi-Fi 6E AX211
Ethernet interface type5 Gigabit Ethernet
USB 2.0 connectors2
USB connector typeUSB Type-A, USB Type-C
DisplayPort version1.2
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity0
RAID levels0, 1, 5, 10
Supported storage drive typesHDD & SSD
Number of storage drives supported6
Supported storage drive interfacesM.2, SATA III
Package depth268 mm
Package width270 mm
Package height68 mm
Package weight1660 g
Cables includedSATA
Bundled softwareNorton Internet Security
BIOS typeUEFI AMI
ACPI version5.0
BIOS memory size256 Mbit
Desktop Management Interface (DMI) version2.7
Battery typeCR2032
Battery weight3 g
Battery technologyLithium-Manganese Dioxide (LiMnO2)
DirectX version12.0
Maximum resolution4096 x 2304 pixels
Parallel processing technology supportNot supported
Audio chipRealtek ALC897
Component forPC
Product colorWhite
Power source typeATX
Motherboard chipsetIntel B760 Express
PC health monitoringFAN, Temperature, Voltage, Water cooling
Audio output channels7.1 channels
Motherboard form factormicro ATX
Windows operating systems supportedWindows 11 x64
Country of originChina
Quantity per shipping (inner) case1 pc(s)
Weight and Dimensions IconWeight and Dimensions
Width244 mm
Height35 mm
