Gigabyte B760M AORUS PRO AX User Manual

- 4 -

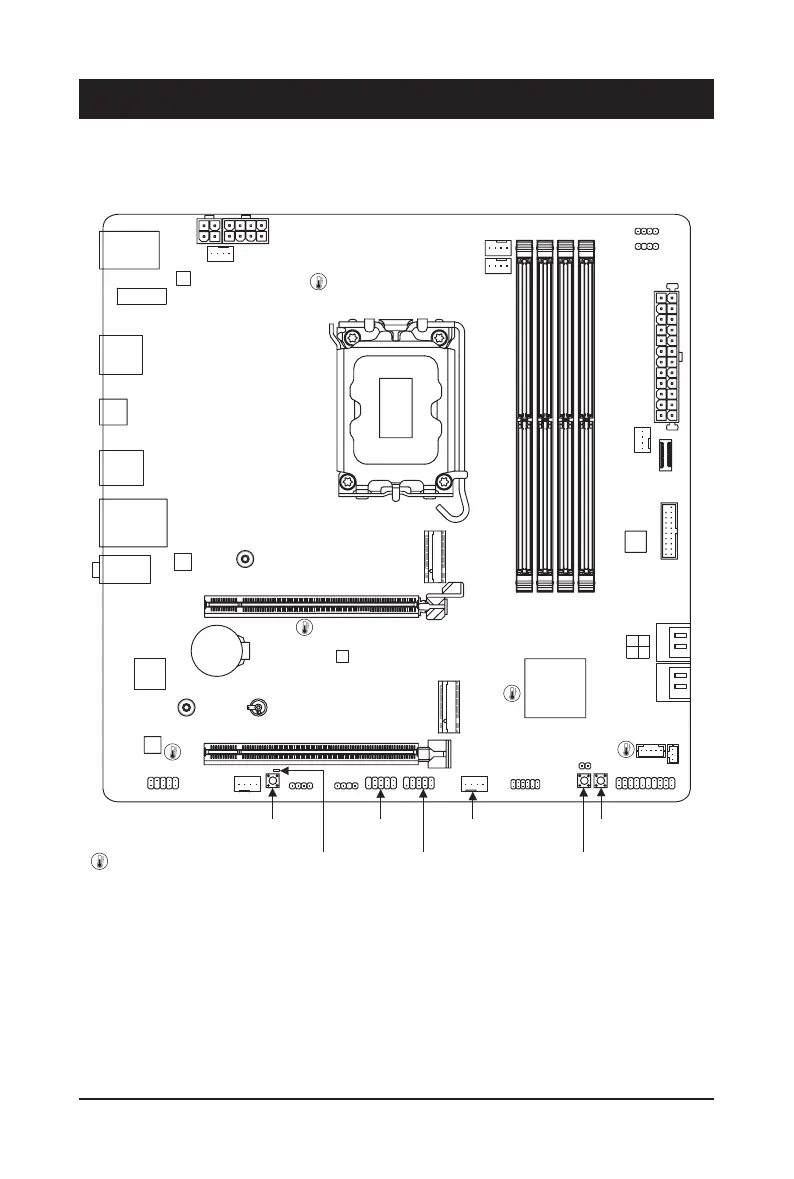

1-1 Motherboard Layout
Chapter 1 Product Introduction
M2_WIFIj
DP_HDMI
U32
U32_LAN
LGA1700
ATX
AUDIO
DDR5_A1 DDR5_A2 DDR5_B1 DDR5_B2
BAT
Intel
®
B760
THB_C1
M_BIOS
CODEC
PCIEX16
PCIEX4
F_U32C
F_U32
R_USB20
B760M AORUS PRO AX B760M AORUS PRO
SYS_FAN1
F_USB2
D_LED1
F_AUDIO
F_USB1
LED_C1
SPI_TPM
F_PANEL
CPU_FAN
iTE
®
Super I/O
D_LED2
LED_C2
ATX_12V_2X4
USB 2.0 Hub
SATA3
5 7 4 6
Temperature sensor
Realtek
®
2.5GbE LAN
RST_SW
RST
QFLED
QFLASH_PLUS
j Only for B760M AORUS PRO AX.
80
M2A_CPU
ATX_12V_2X2
CPU_OPT
U320G
80
M2P_SB
110
SYS_FAN2
SYS_FAN4_PUMP
SYS_FAN3
USB 3.2
Gen 1 Hub
CLR_SW
THB_C2

Gigabyte B760M AORUS PRO AX Specifications

General

Form Factor	Micro ATX
Chipset	Intel B760
Socket	LGA 1700
Memory Type	DDR5
Maximum Memory	128GB
Memory Slots	4
Audio	Realtek ALC897
PCIe Slots	1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1
Storage Interface	4 x SATA 6Gb/s
USB Ports	1 x USB Type-C
Networking	Intel Wi-Fi 6E AX211, Intel 2.5GbE LAN
RGB Headers	2 x addressable LED strip headers 2 x RGB LED strip headers
Memory Speed	DDR5-7600+ (OC)
