Gigabyte B760M C User Manual

- 17 -

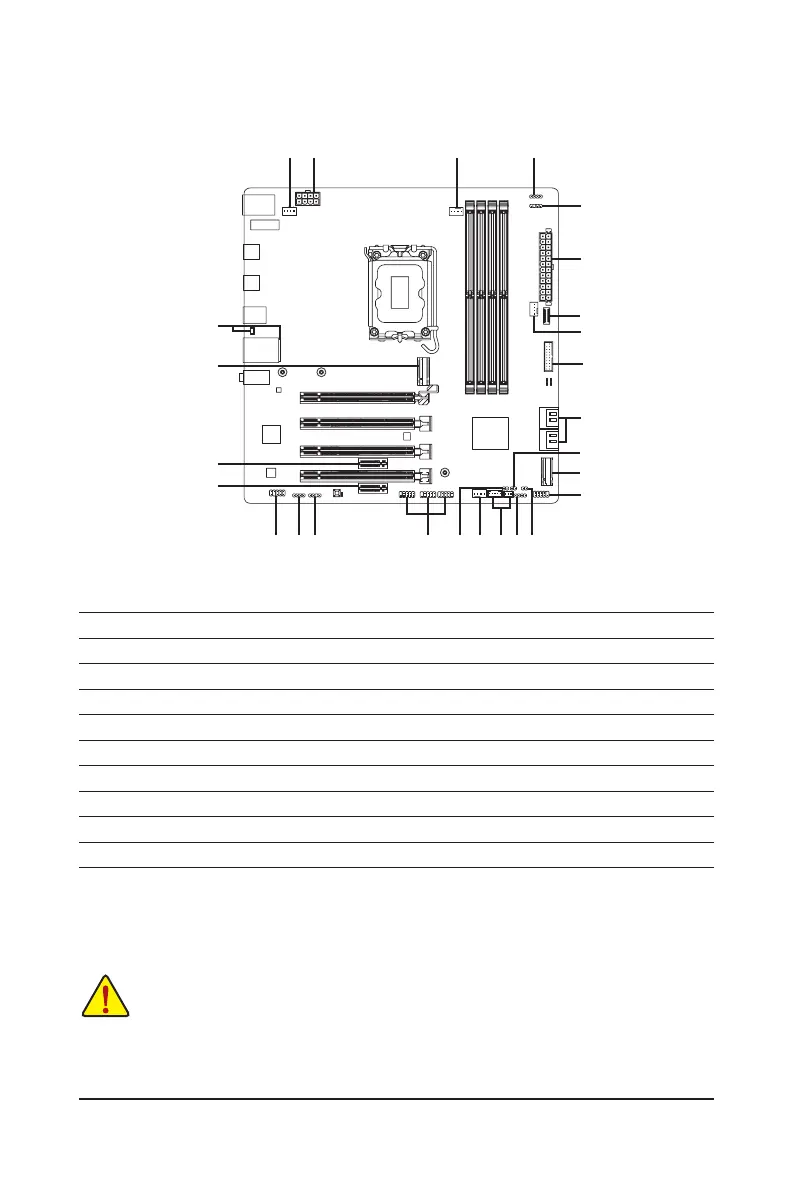

2-8 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/SYS_FAN2/SYS_FAN3
5) D_LED1/D_LED2
6) LED_C1/LED_C2
7) SATA3 4/5/6/7
8) M2A_CPU/M2P_SB/M2Y_SB/M2X_SB
9) CI
10) F_PANEL
11) F_AUDIO
12) SPEAKER
13) F_U32C
14) F_U32
15) F_USB1/F_USB2/F_USB3
16) THB_C1/THB_C2
17) CLR_CMOS
18) RST
19) BAT
4
5
2
7
15
1211
14
5
19
8
8
3
4
8
8
9
10
13
14
16
18
17
6
6

Gigabyte B760M C Specifications

General

Form Factor	Micro ATX
Chipset	Intel B760
Socket	LGA 1700
Memory Type	DDR5
Maximum Memory	128 GB
Memory Slots	4
Video Outputs	1 x HDMI, 1 x DisplayPort
PCIe Slots	1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1
Storage Interface	4 x SATA 6Gb/s
USB Ports	1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1
LAN	2.5GbE
Audio	Realtek ALC897
Wireless	No
Memory Speed	7600(O.C.)/7400(O.C.)/7200(O.C.)/7000(O.C.)/6800(O.C.)/6600(O.C.)/6400(O.C.)/6200(O.C.)/6000(O.C.)/5800(O.C.)/5600(O.C.)/5400/5200/4800 MHz
