- 17 -

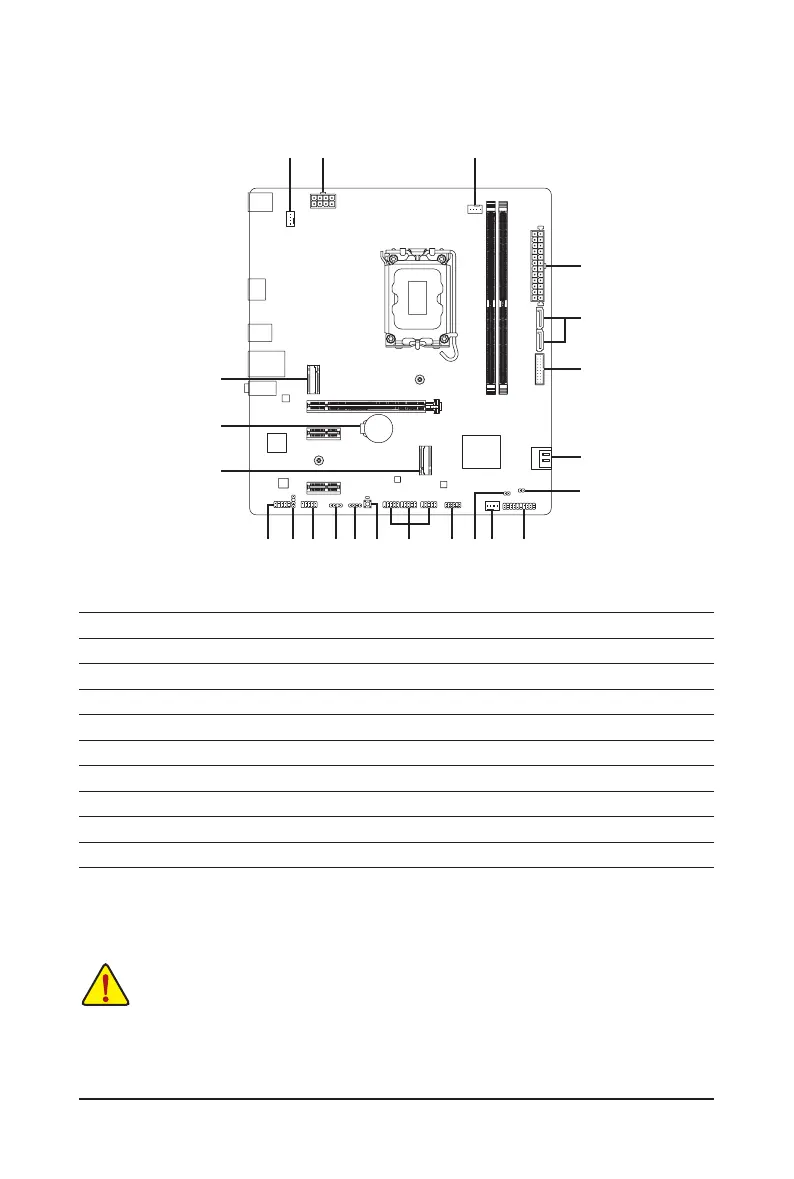

2-7 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
941614
12
2
7
7
17
13151110
14
65
18
8
8
3
1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/SYS_FAN2
5) D_LED
6) LED_C
7) SATA3 4/5/6/7
8) M2A_CPU/M2P_SB
9) F_PANEL
10) F_AUDIO
11) SPDIF_O
12) F_U32
13) F_USB1/F_USB2/F_USB3
14) SPI_TPM
15) COM
16) CLR_CMOS
17) RST
18) BAT
19) QFLASH_PLUS
19
