Gigabyte GA-770TA-UD3 User Manual

- 107 - Appendix
5-2-2 Conguring S/PDIF In/Out
A. S/PDIF In

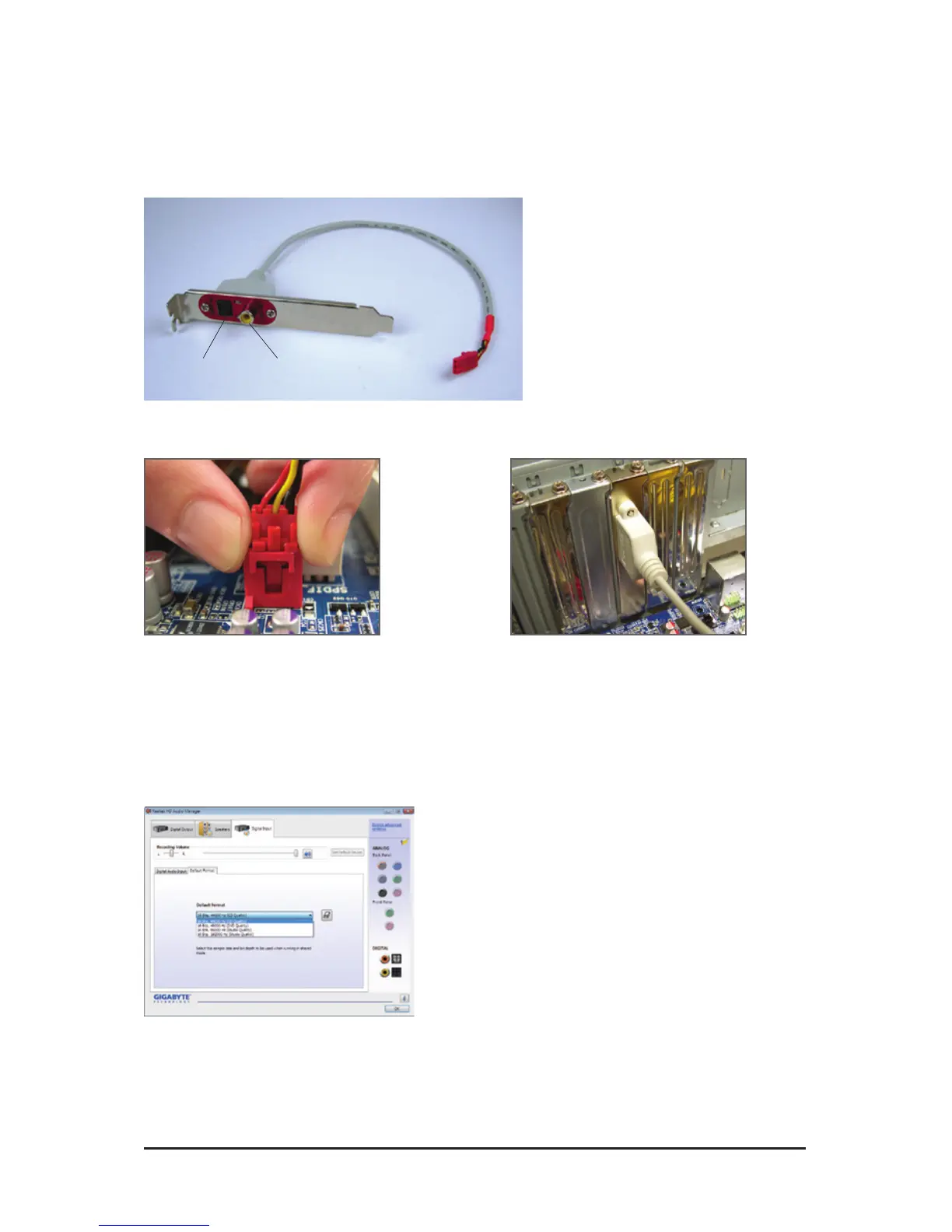

The S/PDIF In cable (optional) allows you to input digital audio signals to the computer for audio processing.
1. Installing the S/PDIF In Cable:
(Note) The actual locations of the S/PDIF In and S/PDIF Out connectors may differ by model.
S/PDIF In Cable
Optical
S/PDIF In
Coaxial
S/PDIF In
Step 1:
First, attach the connector at the end of the cable
to the SPDIF_I header on your motherboard.
Step 2:
Secure the metal bracket to the chassis back
panel with a screw.
2. Conguring S/PDIF In:
On the Digital Input screen, click the Default Format tab to select the default format. Click OK to complete.

Gigabyte GA-770TA-UD3 Specifications

General

Memory voltage	1.5 V
Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	2
Power fan connector	Yes
Number of SATA connectors	8
I/O ports	1 x IDE 1 x 24-pin ATX 1 x 8-pin ATX 12V 2 x system fan 1 x North Bridge fan 1 x front panel 1 x CMOS jumper
Special features	@BIOS Q-Flash Xpress BIOS Rescue Download Center Xpress Install Xpress Recovery2 EasyTune Easy Energy Saver Time Repair Q-Share
Dimensions (WxDxH)	305 x 230 x 0 mm
Controller interface type	Marvell 9128, JMB362, iTE IT8720
Controller 2nd interface type	ATA-133/100/66/33
USB 2.0 ports quantity	6
VGA (D-Sub) ports quantity	0
Audio chip	Realtek ALC888
Motherboard chipset	AMD 770
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	MS Windows 7/Vista/XP
RAID levels	0, 1, 5, 10, JBOD
Bundled software	Norton Internet Security (OEM)
Networking features	10/100/1000 Mbit

Weight and Dimensions

Depth	230 mm
Width	305 mm
