Gigabyte GA-945PL-S3 User Manual

- 8 -

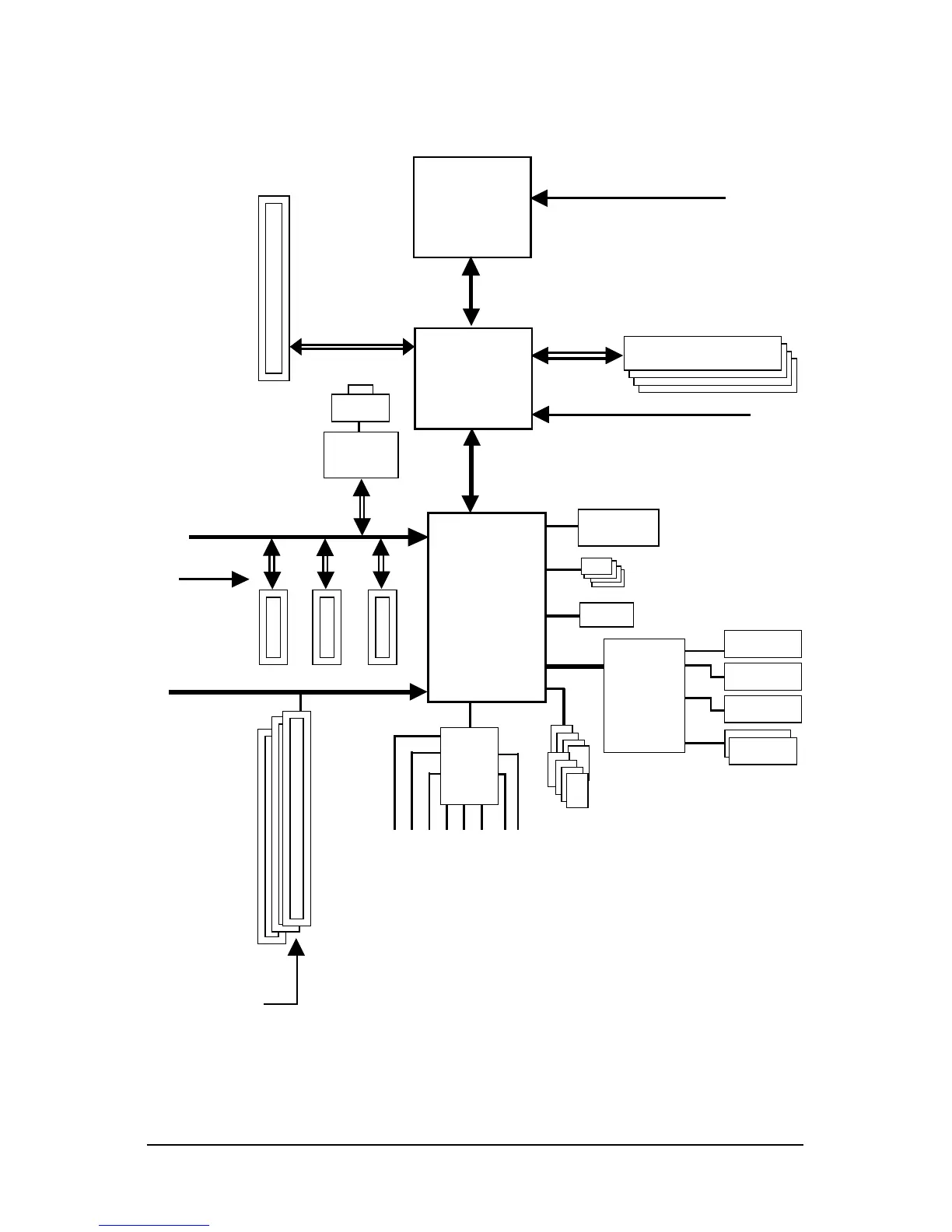

Block Diagram
LGA775
Processor
CPU CLK+/-(200/133 MHz)
PCI Express x16
Host
Interface
Intel
®
945PL
MCH CLK(200/133 MHz)
DDRII 400/533 MHz DIMM
Floppy
PS/2 KB/Mouse
4 SATA 3Gb/s
ATA33/66/100
IDE1 Channel
BIOS
8 USB
Ports
PCI CLK
(33 MHz)
3 PCI
PCI Bus
LPT Port
PCIe CLK
(100 MHz)
RJ45
RTL
8111B
Line-Out
MIC
CODEC
Line-In
SPDIF In
SPDIF Out
Center/Subwoofer Speaker Out
Side Speaker Out
Surround Speaker Out
PCI Express Bus
IT8718
Intel
®
ICH7
x1
3 PCI Express x1
PCIe CLK
(100 MHz)
x1
x1
x1
Dual Channel Memory
COM Port

Gigabyte GA-945PL-S3 Specifications

General

Number of memory slots	4
Maximum internal memory	2 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
USB 2.0 connectors	2
S/PDIF out connector	Yes
Number of Parallel ATA connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Motherboard form factor	ATX
LAN controller	Realtek RTL8111B
Networking features	Gigabit Ethernet

Weight and Dimensions

Depth	190 mm
Width	305 mm
