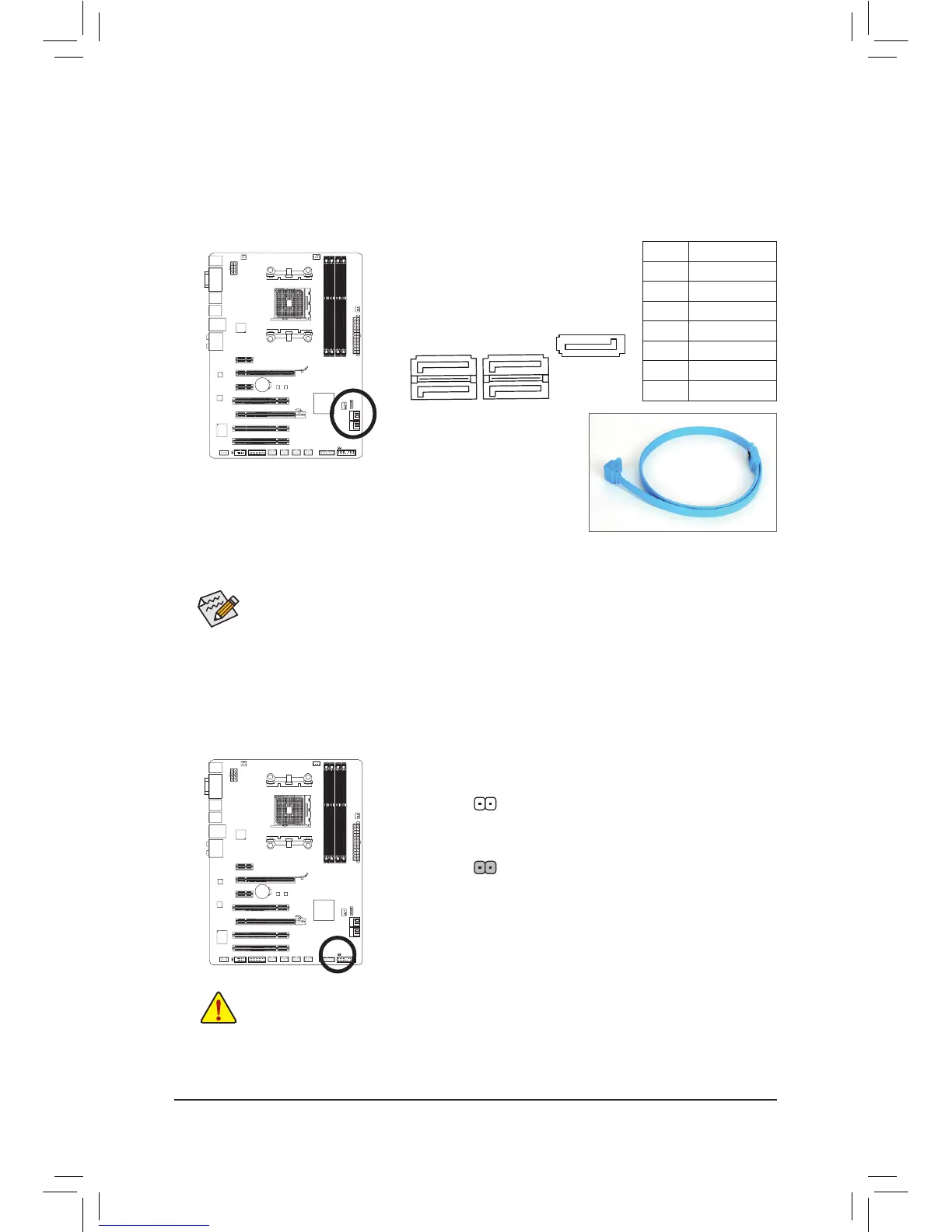

7) SATA3_0/1/2/3/4 (SATA 6Gb/s Connectors, Controlled by AMD A75 Chipset)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA
1.5Gb/s standards. Each SATA connector supports a single SATA device. The AMD A75 Chipset sup-
ports RAID 0, RAID 1, RAID 10, and JBOD. Refer to Chapter 5, "Conguring SATA Hard Drive(s)," for
instructions on conguring a RAID array.
Please connect the L-shaped end of
the SATA cable to your SATA hard
drive.
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
• A RAID 0 or RAID 1 conguration requires at least two hard drives. If more than two hard
drives are to be used, the total number of hard drives must be an even number.
• A RAID 10 conguration requires four hard drives.
1
DEBUG
PORT
G.QBOFM
SATA3_4
7
1
1
7
7
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
SATA3_2
SATA3_0
SATA3_3
SATA3_1
8) CLR_CMOS (Clearing CMOS Jumper)
Use this jumper to clear the CMOS values (e.g. date information and BIOS congurations) and reset
the CMOS values to factory defaults. To clear the CMOS values, place a jumper cap on the two pins to
temporarily short the two pins or use a metal object like a screwdriver to touch the two pins for a few
seconds.
Open: Normal
Short: Clear CMOS Values
Always turn off your computer and unplug the power cord from the power outlet before clearing the CMOS •
values.
After clearing the CMOS values and before turning on your computer, be sure to remove the jumper cap •
from the jumper. Failure to do so may cause damage to the motherboard.
After system restart, go to BIOS Setup to load factory defaults (select Load Optimized Defaults) or manually •
congure the BIOS settings (refer to Chapter 2, "BIOS Setup," for BIOS congurations).
