Gigabyte GA-B85M-D2V Plus - GA-B85 M-D2 V Plus Motherboard Block Diagram

- 5 -

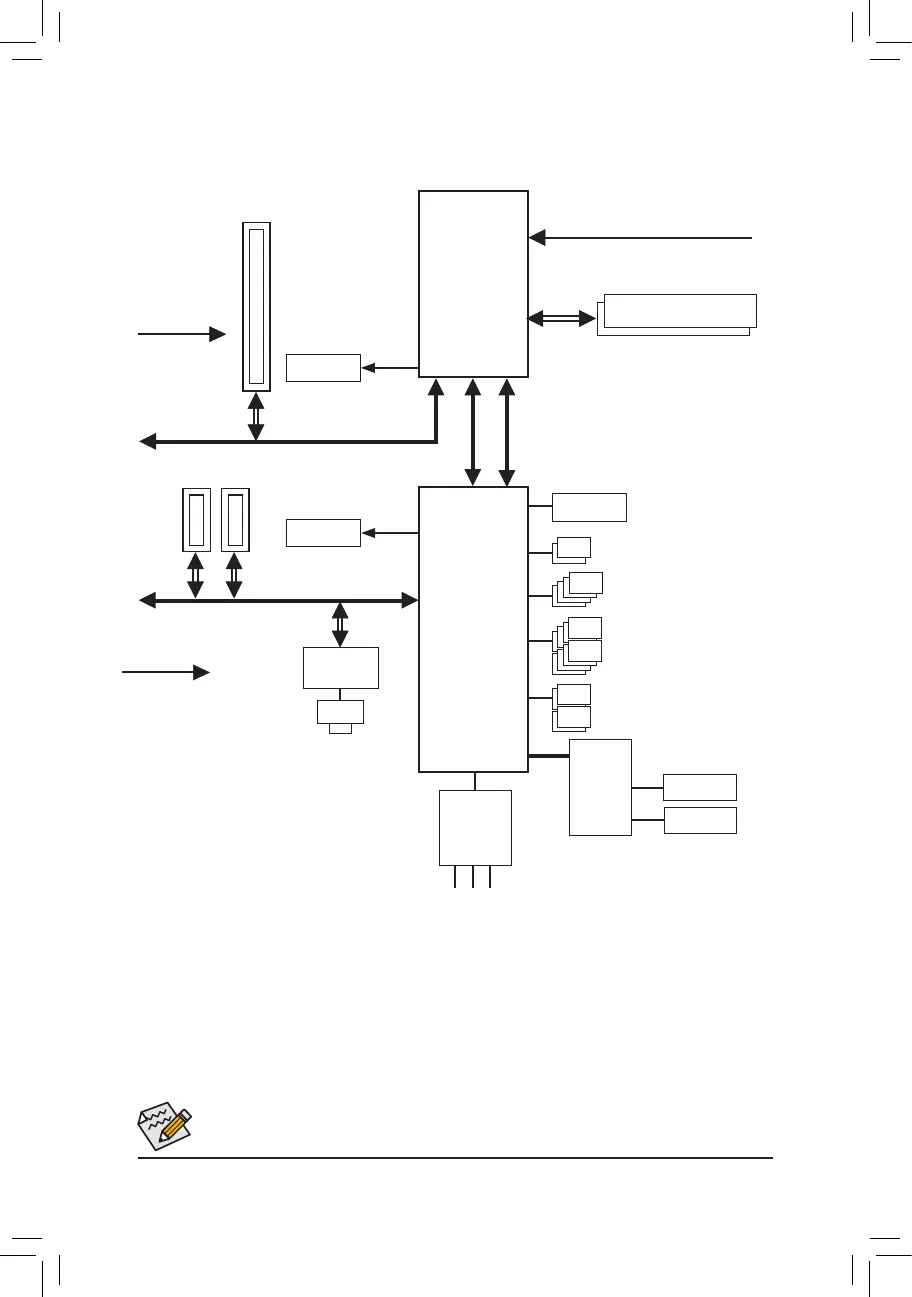

GA-B85M-D2V Plus Motherboard Block Diagram
For detailed product information/limitation(s), refer to "1-2 Product Specications."
iTE
®
Super I/O
PS/2 KB/Mouse
LGA1150
CPU
Intel
®
B85
PCIe CLK
(100 MHz)
PCI Express Bus
CPU CLK+/- (100 MHz)
1 PCI Express x16
COM
8 USB 2.0/1.1
4 USB 3.0/2.0
DDR3 1600/1333 MHz
PCI Express Bus
PCIe CLK
(100 MHz)
2 PCI Express x1
4 SATA 6Gb/s
D-Sub
DVI-D
2 SATA 3Gb/s
DMI 2.0
FDI
x16
Dual Channel Memory
x1 x1
x1
LPC
Bus
Line Out (Front Speaker Out)
MIC (Center/Subwoofer
Speaker Out)
Line In (Rear Speaker Out)
CODEC
LAN
RJ45
Realtek
®
GbE LAN
BIOS
