Gigabyte GA-H61M-S1 Manual

- 4 -
English

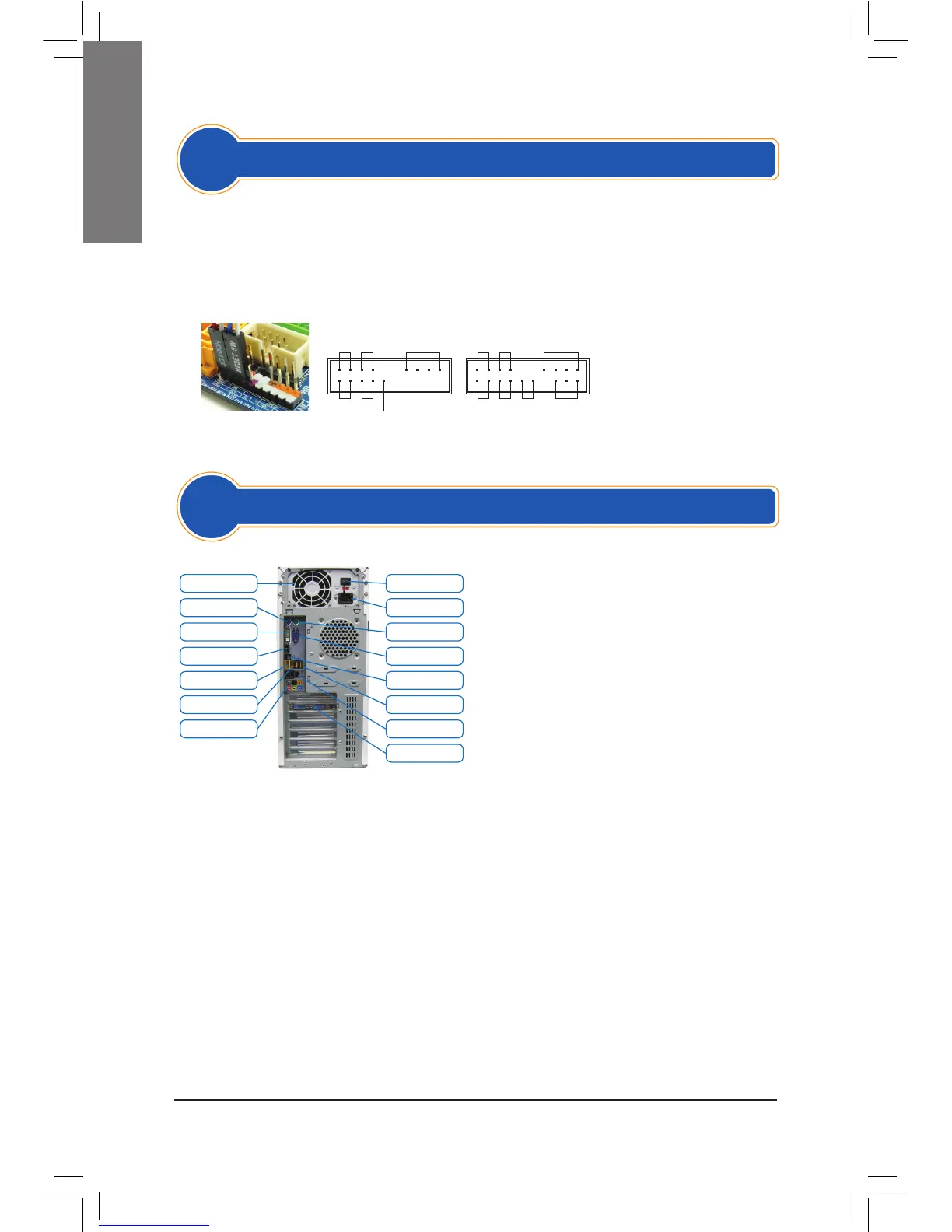

7-1 Connect cables to internal connectors and headers on the motherboard, including IDE/SATA
connectors, and front panel audio, USB, IEEE 1394 headers, etc.
7-2 Attach the front panel module (differs depending on the case design, consisting of power
indicator, hard drive activity indicator, speakers, reset switch, power switch, etc.) from the case
to the front panel header (F_PANEL) on the motherboard.
Front Panel Header
MSG: Message/Power/Sleep LED
PWR: Power LED
PW: Power Switch
SPEAK: Speaker
HD: Hard Drive Activity LED
RES: Reset Switch
CI: Chassis Intrusion Header
Once the steps above have been completed, connect
the peripheral devices to the computer, such as the
keyboard, mouse, monitor, etc. Then connect the power,
turn on the system, and install all required software.
Power Supply Power Switch
PS/2 Keyboard Port Power Cord Connector
DVI-D Port PS/2 Mouse Port
HDMI Port D-Sub Port
eSATA Port S/PDIF Connector
IEEE 1394 Port USB Ports
Audio Jacks RJ-45 LAN Port
External Graphics Card
Step
7
Connecting Cables to Internal Connectors
Step
8
Connecting Peripherals
Back Panel of the Case
(Note) The pin assignments for the front panel header may differ by model. Refer
to the motherboard user's manual for the actual pin assignments.
1
2
PinAssignmentsA:
19
20
+MSG-
+HD-
+PW-
-CI+-RES+ +PWR-
+SPEAK-
PinAssignmentsB:
+MSG-
+HD- -RES+
NC
+PW- +SPEAK-

Gigabyte GA-H61M-S1 Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	800, 1066, 1333, 2200 MHz
Supported memory module capacities	2GB, 4GB, 8GB
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
Number of SATA II connectors	4
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component for	-
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows 7/Vista/XP
Supported storage drive interfaces	SATA II
On-board graphics card	No
Parallel processing technology support	Not supported
PCI Express slots version	3.0
LAN controller	Realtek RTL8111F
Networking features	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a

Weight and Dimensions

Depth	174 mm
Width	226 mm
