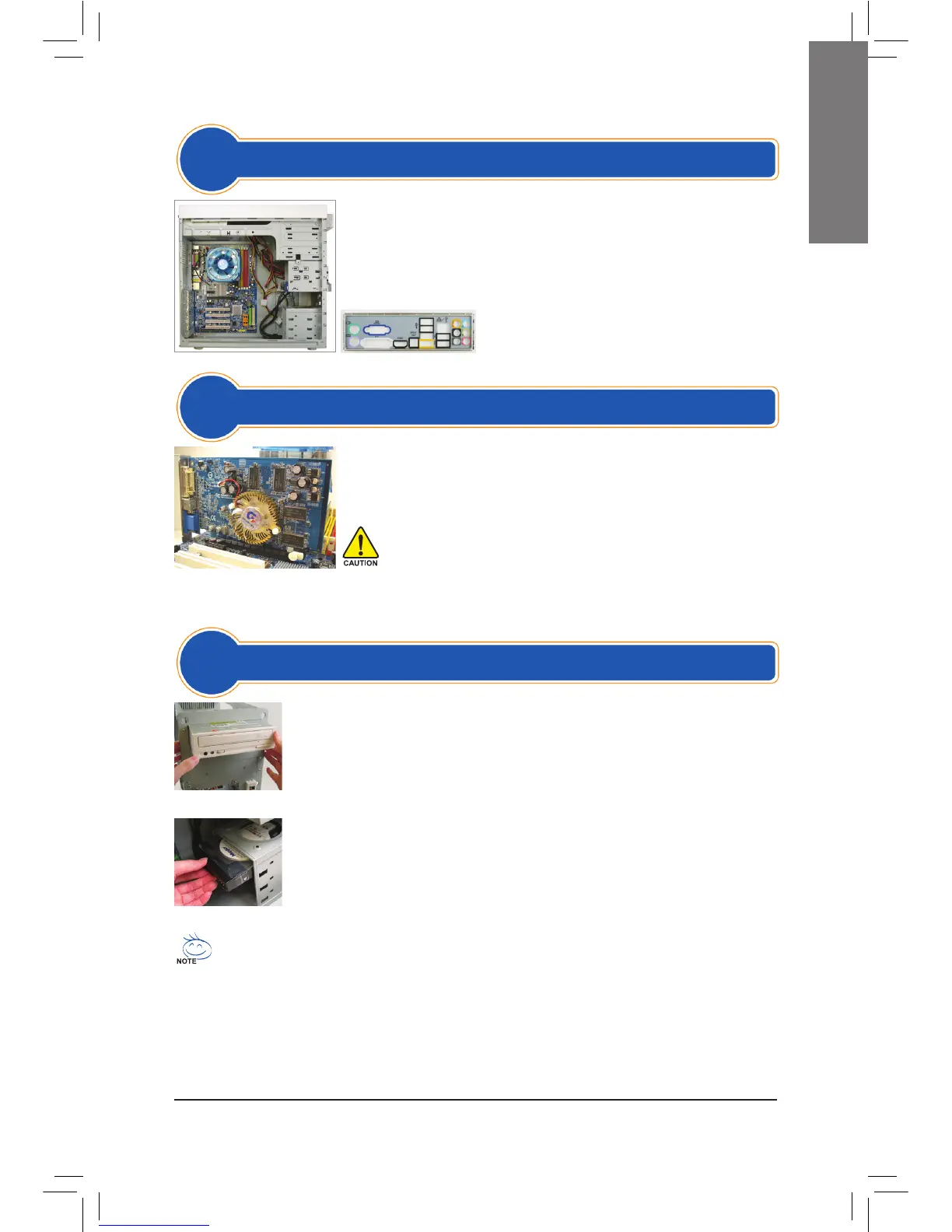

Remove the original I/O shield from the back of the case and replace it with the
motherboard I/O shield. Place the motherboard within the case by positioning it
into its I/O shield. Align the mounting screw holes on the motherboard with their
corresponding mounting holes on the case. Secure the motherboard in place
with screws.
Locate an expansion slot that supports your card and remove the slot cover from
the case back panel. Then insert the expansion card into the slot. Secure the
expansion card's bracket to the case back panel with a screw.
I/O Shield
• Before purchasing an expansion card, check the length of the card, making
sure it can t into your case.
• Make sure that the expansion card is fully seated in its slot.
Step
4
Installing the Motherboard
Step
5
Installing an Expansion Card
PCI Express Graphics Card
6-1 Install your optical drives, such as DVD-ROM and CD-ROM drives.
Remove the 5.25" drive bay cover from the front of the case. Mount the optical drive
in the 5.25" drive bay and secure it with screws.
6-2 Install your IDE and SATA hard drives.
Install the hard drive into a drive bay within the case and secure it with screws.
• One motherboard IDE connector can connect up to two IDE devices. Prior to installation, check the jumper
settings (master and slave) on your IDE devices.
• If more than one hard drive is installed, enter system BIOS Setup to set the hard drive boot sequence.
Installing an Optical Drive
Installing a Hard Drive
Step
6
Installing IDE and SATA Devices

Gigabyte GA-H61M-S1 Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	800, 1066, 1333, 2200 MHz
Supported memory module capacities	2GB, 4GB, 8GB
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
Number of SATA II connectors	4
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component for	-
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows 7/Vista/XP
Supported storage drive interfaces	SATA II
On-board graphics card	No
Parallel processing technology support	Not supported
PCI Express slots version	3.0
LAN controller	Realtek RTL8111F
Networking features	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a

Weight and Dimensions

Depth	174 mm
Width	226 mm
