Hardware Installation- 27 -

English

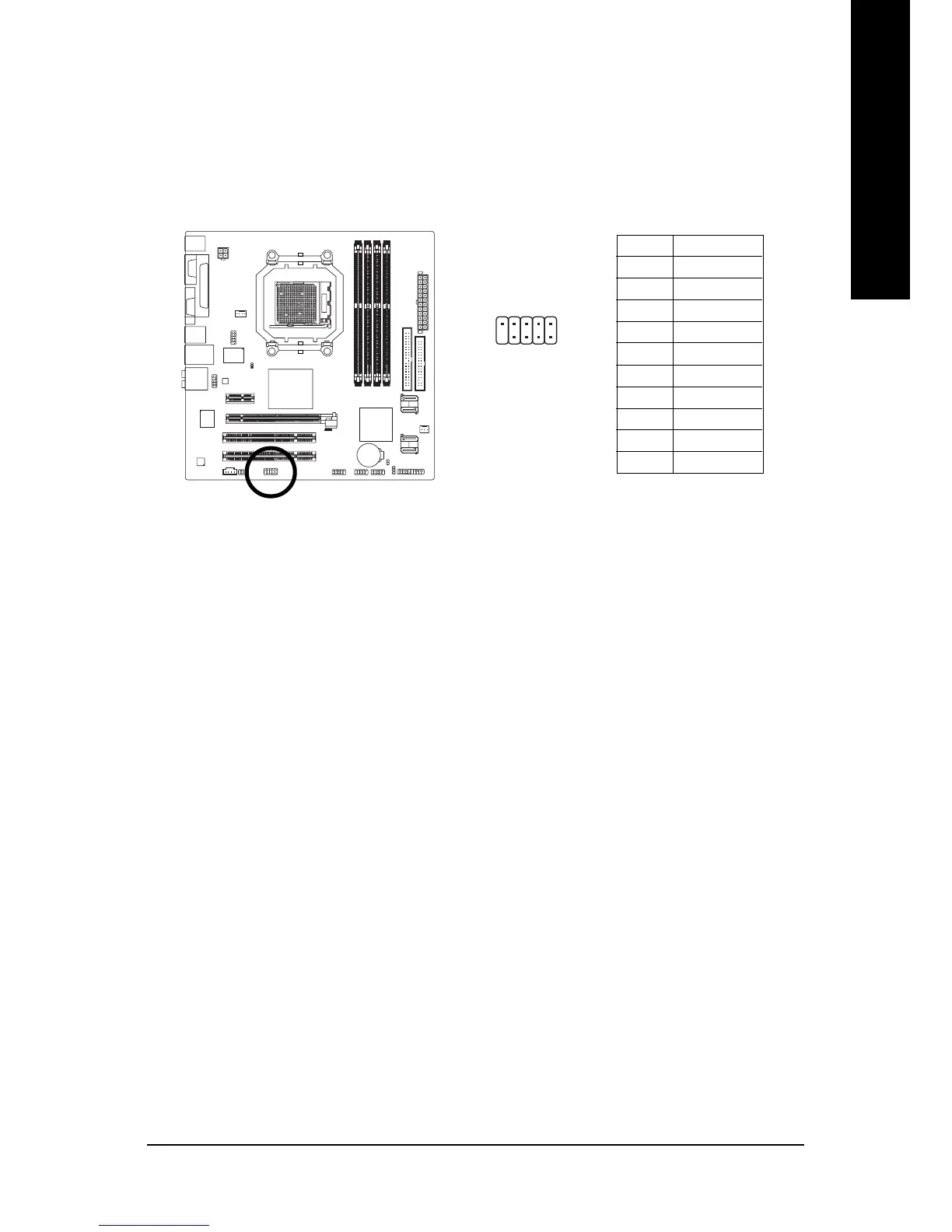

18) COMB (COMB Connector)

Be careful with the polarity of the COMB connector. Check the pin assignment carefully while you

connect the COMB cable, incorrect connection between the cable and connector will make the

device unable to work or even damage it. For optional COMB cable, please contact your local

dealer.

Pin No. Definition

1 NDCDB-

2 NSINB

3 NSOUTB

4 NDTRB-

5 GND

6 NDSRB-

7 NRTSB-

8 NCTSB-

9 NRIB-

10 No Pin

Gigabyte GA-MA69VM-S2 User Manual
