Gigabyte GA-Z270N-WIFI User Manual

2-5 Peripherals

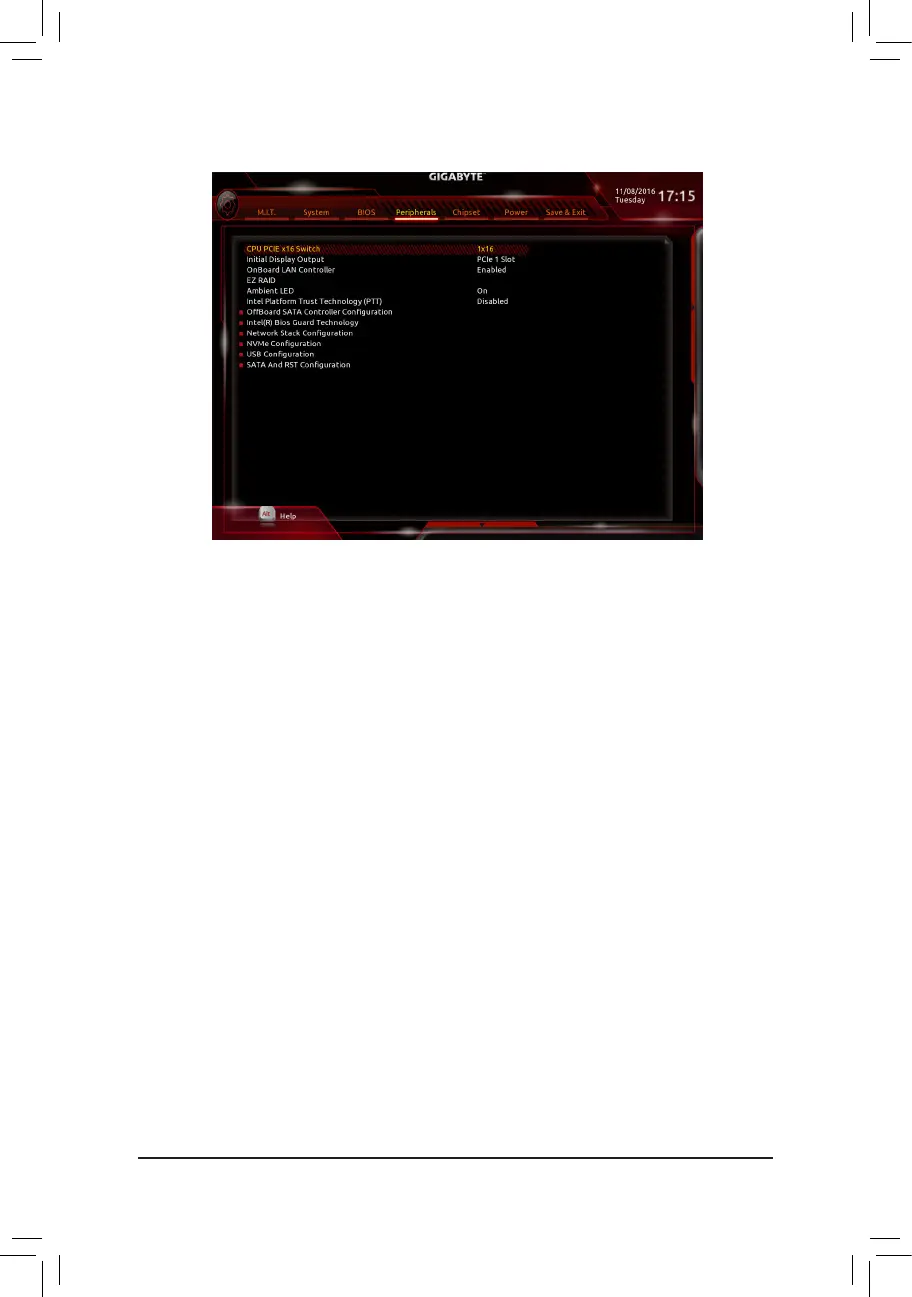

& CPU PCIE x16 SwitchM
Allows you to divide the bandwidth of the PCIEX16 slot. (Default: 1x16)
& Initial Display Output
Species the rst initiation of the monitor display from the installed PCI Express graphics card or the onboard
graphics.
IGFX Sets the onboard graphics as the rst display.
PCIe 1 Slot Sets the graphics card on the PCIEX16 slot as the rst display. (Default)
& OnBoard LAN Controller (LAN2)
Enables or disables the onboard LAN function. (Default: Enabled)
If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to
Disabled.
& EZ RAID
Allows you to quickly set up a RAID array. Refer to Chapter 3, "Conguring a RAID Set," for instructions
on conguring a RAID array.
& Ambient LED
Enables or disables the onboard audio LED function. (Default: On)
& Intel Platform Trust Technology (PTT)
Enables or disables Intel
®
PTT Technology. (Default: Disabled)
` OffBoardSATAControllerConguration
Displays information on your M.2 PCIe SSD if installed.
` Intel(R) Bios Guard Technology
Enables or disables the Intel
®
BIOS Guard feature, which protects the BIOS from malicious attacks.
M Only for GA-Z270N-WIFI.
- 31 -

Gigabyte GA-Z270N-WIFI Specifications

General

Non-ECC	Yes
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000 MHz
Supported memory module capacities	16GB
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Ethernet interface type	Gigabit Ethernet
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® Z270
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	16 Mbit
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Number of SATA II connectors	0
Number of SATA III connectors	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
