Gigabyte GA-Z97M-D3H User Manual

Copyright
© 2014 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.
No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by
any means without GIGABYTE's prior written permission.
 In order to assist in the use of this product, carefully read the User's Manual.
 For product-related information, check on our website at: http://www.gigabyte.com

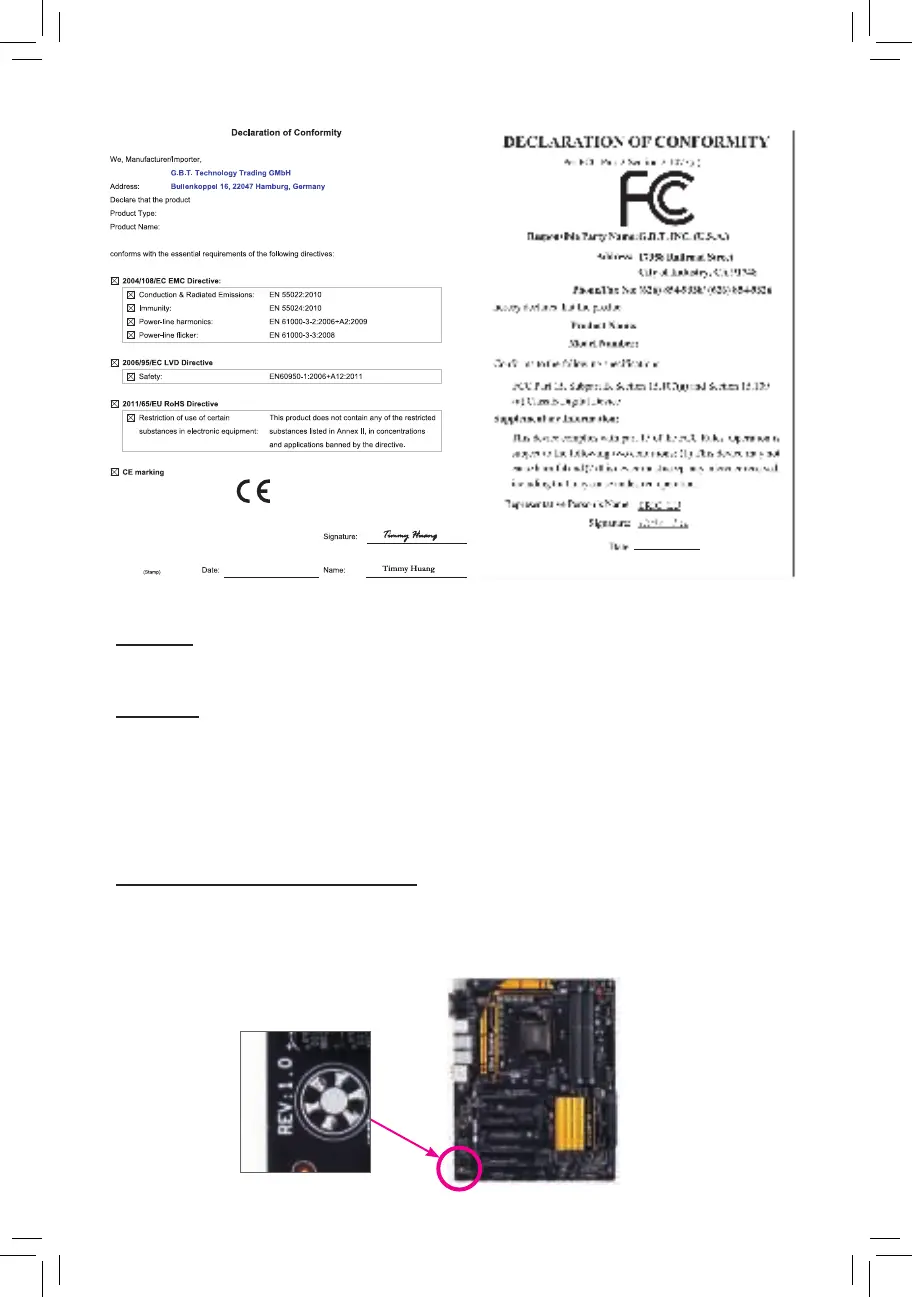

Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means the
revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard BIOS,
drivers, or when looking for technical information.
Example:
Motherboard
GA-Z97M-D3H
GA-H97M-D3H
Apr. 11, 2014
Apr. 11, 2014
Motherboard
GA-Z97M-D3H
GA-H97M-D3H

Gigabyte GA-Z97M-D3H Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®
USB 2.0 connectors	3
Number of SATA connectors	6
Number of SATA II connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA
USB 2.0 ports quantity	2
Bluetooth	No
Audio chip	Realtek ALC892
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® Z97
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	1000 MB
Parallel processing technology support	2-Way CrossFireX
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	64 Mbit
Bundled software	Norton Internet Security (OEM version)\\r Intel Rapid Start Technology\\r Intel Smart Connect Technology\\r Intel Smart Response Technology

Weight and Dimensions

Depth	225 mm
Width	244 mm
