- 41 - System Hardware Installation

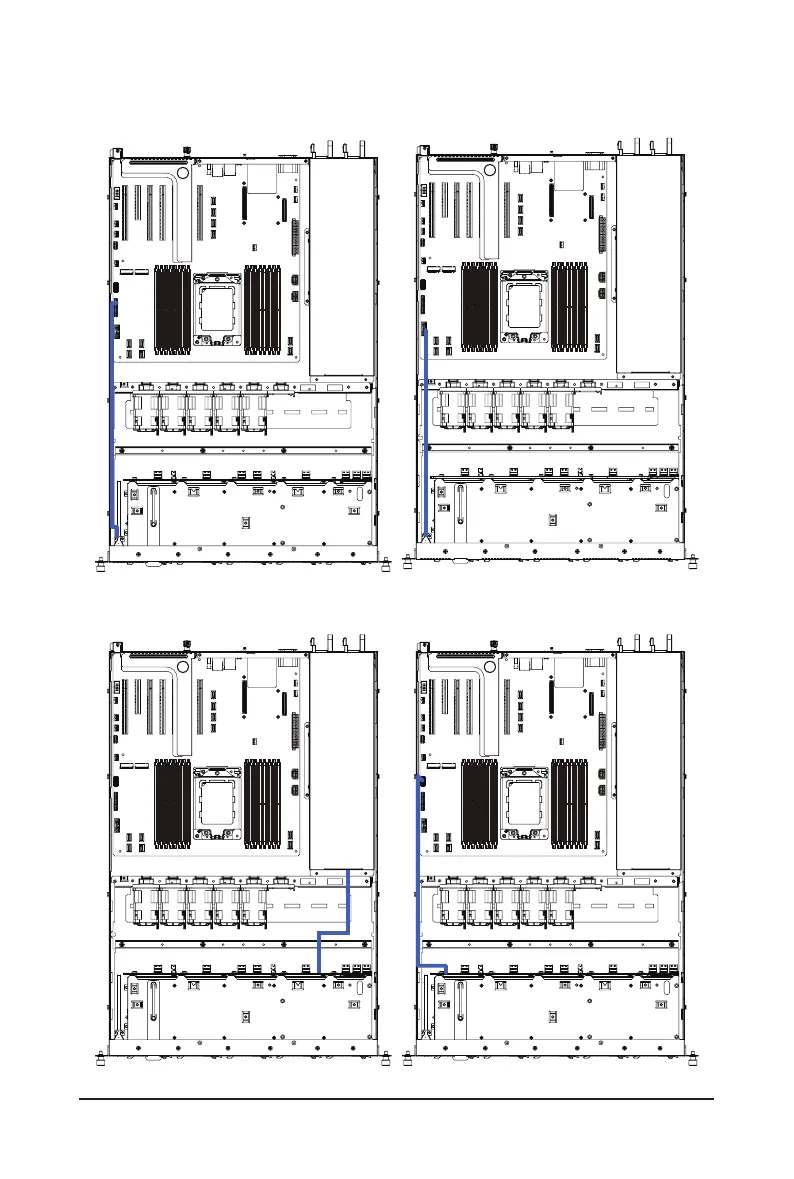

3-11-2 R152-Z31 Cable Routing
HDD Back Plane Board Power Cable HDD Back Plane Board Signal Cable
Front Panel USB 3.0 CableFront Switch Cable/Front LED Cable
