Gigabyte TRX40 AORUS PRO WIFI User Manual

- 5 -

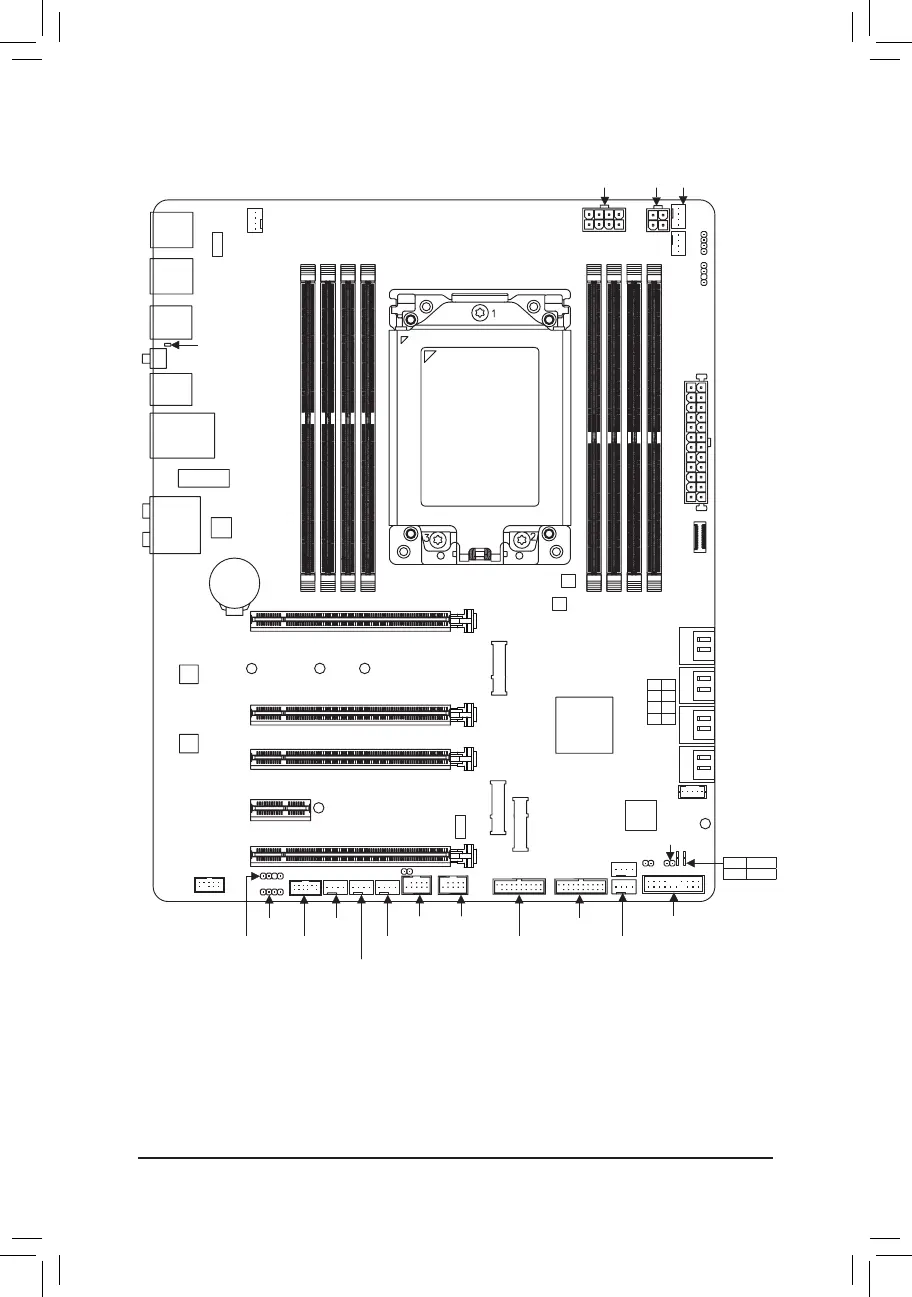

TRX40 AORUS PRO WIFI Motherboard Layout
Box Contents
5 TRX40 AORUS PRO WIFI motherboard 5 Four SATA cables
5 Motherboard driver disc 5 One antenna
5 User's Manual 5 M.2 screw(s)/M.2 standoff(s)
5 Quick Installation Guide 5 One G Connector
5 One RGB LED strip extension cable 5 One thermistor cable
5 One addressable LED strip adapter cable
* The box contents above are for reference only and the actual items shall depend on the product package you
obtain. The box contents are subject to change without notice.
USB1
U32G2C
U32G2_2
AMD Socket sTRX4
AUDIO
QFLASH_PLUS
QFLED
BAT
AMD TRX40
CLR_CMOS
THB_C
M_BIOS
B_BIOS
PCIEX16_1
PCIEX8_1
M2M
6080110
TRX40 AORUS PRO WIFI
F_PANELF_USB1
SYS_FAN5A_PUMP
SYS_FAN2 F_U32_1
SYS_FAN6A_PUMP
SYS_FAN6B_PUMP
F_U32_2TPM
CPU_FAN
iTE
®
Super I/O
SATA3
6 4 2 0 7 5 3 1
U32G2_LAN
USB2
LED_C2
F_U32C
M2P
80
EC_TEMP1
EC_TEMP2
F_USB2
USB 2.0 Hub
USB 2.0 Hub
SYS_FAN5B_PUMP
LED_C1
D_LED2
D_LED1
F_AUDIO
PCIEX1
CODEC
CODEC
U32G2_1
CPU_OPT
SYS_FAN1
ATX
M2Q
DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2
80
ATX_12V_1 ATX_12V_2
DDR4_D2 DDR4_D1 DDR4_C2 DDR4_C1
PCIEX16_2
PCIEX8_2
Intel
®
GbE LAN
CPU DRAM
VGA BOOT
M2_WIFI

Gigabyte TRX40 AORUS PRO WIFI Specifications

General

PCI Express x1 slots	1
PCI Express x16 slots	4
Number of M.2 (M) slots	3
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI
Cables included	SATA
Bundled software	Norton Internet Security cFosSpeed XSplit Gamecaster + Broadcaster
Drivers included	Yes
Component for	PC
Motherboard chipset	AMD TRX40
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard chipset family	AMD
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.0
Ethernet interface type	Gigabit Ethernet
USB connector type	USB Type-A, USB Type-C
DVI-D ports quantity	0
WiFi-AP antenna jack	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
Memory channels	Quad-channel
Memory slots type	DIMM
Number of memory slots	8
Supported memory types	DDR4-SDRAM
Maximum internal memory	256 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400 MHz
Supported memory module capacities	32GB
Processor socket	Socket sTRX4
Compatible processor series	3rd Gen AMD Ryzen™ Threadripper™
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	244 mm
Width	305 mm
