Gigabyte X470 AORUS GAMING 7 WIFI User Manual

- 5 -

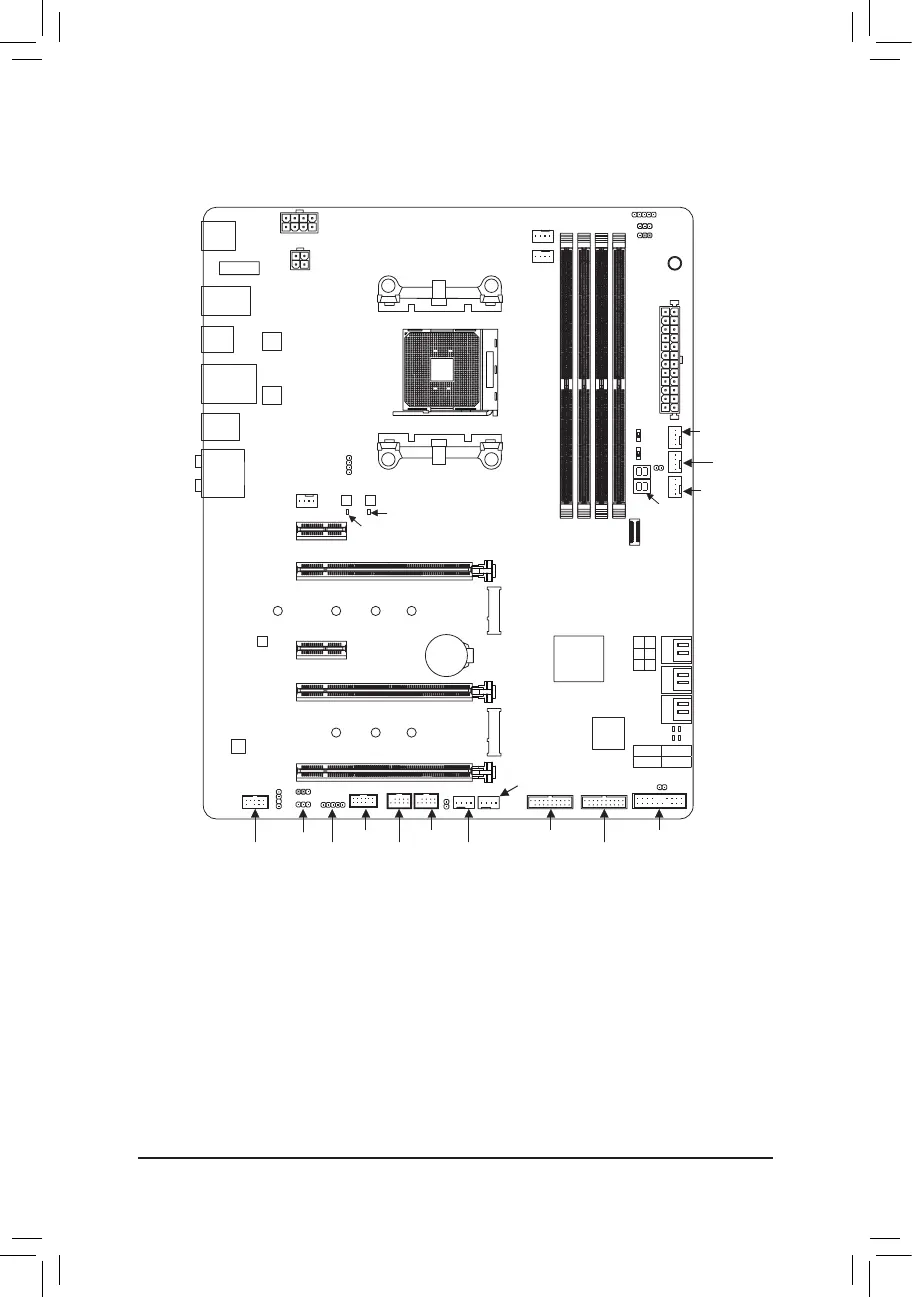

X470 AORUS GAMING 7 WIFI Motherboard Layout
Box Contents
5 X470 AORUS GAMING 7 WIFI motherboard 5 M.2 screw(s)/M.2 standoff(s)
5 Motherboard driver disk 5 One Wi-Fi antenna
5 Wireless module driver disk 5 One GC-SLI2PL bridge connector
5 User's Manual 5 One digital LED strip adapter cable
5 Quick Installation Guide 5 One RGB (RGBW) LED strip extension cable
5 Four SATA cables 5 One G Connector
5 Two Velcro Cable Ties 5 Two thermistor cables
* The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
(Note) For debug code information, please refer to Chapter 3.
REAR_BUTTON CPU_FAN
SYS_FAN1
ATX
X470 AORUS GAMING 7 WIFI
DDR4_4
DDR4_1
BAT
ATX_12V1
AMD X470
R_USB30
USB_LAN
CODEC
M2_WIFI
PCIEX16
PCIEX1_2
iTE
®
Super I/O
Intel
®
GbE
LAN
F_USB30_2 F_PANEL
F_USB30_1
AUDIO
Socket AM4
R_USB30_1
CLR_CMOS
80
60 42
DDR4_2
DDR4_3
EC_TEMP2
PCIEX8
SYS_FAN6_PUMP
TPM
D_LED1
SPDIF_O
DLED_V_SW1
LED_C1F_AUDIO
SATA3
0 2 4 1 3 5
ATX_12V
CPU_OPT
SYS_FAN3
F_USB1
F_USB2
TYPEC
USB31
LED_CPU
PCIEX1_1
M2A_SOCKET
80
60 42110
PCIEX4
M2B_SOCKET
F_USB31C
D_LED2
DLED_V_SW2
LED_C2
EC_TEMP1 BIOS_SW
SB
OC_BUTTON
SYS_FAN5_PUMP
SYS_FAN2
SYS_FAN4
B_BIOS M_BIOS
ES9018Q2C
CPU DRAM
VGA BOOT
MBIOS_LED
BBIOS_LED
Debug LED
(Note)
ASMedia
®
USB 3.1
Gen 2 Controller

Gigabyte X470 AORUS GAMING 7 WIFI Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3000, 3200, 3333, 3400, 3600 MHz
Supported memory module capacities	16GB
Component for	PC
Motherboard chipset	AMD X470
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard chipset family	AMD
Processor socket	Socket AM4
Compatible processor series	AMD A, AMD Athlon, AMD Athlon X4, AMD Ryzen 3, AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
PCI Express x1 slots	2
PCI Express x16 slots	3
Number of Parallel ATA connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
BIOS type	UEFI AMI
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	5.0
Ethernet interface type	Gigabit Ethernet
RAID levels	0, 1, 10

Weight and Dimensions

Depth	305 mm
Width	244 mm
