- 5 -

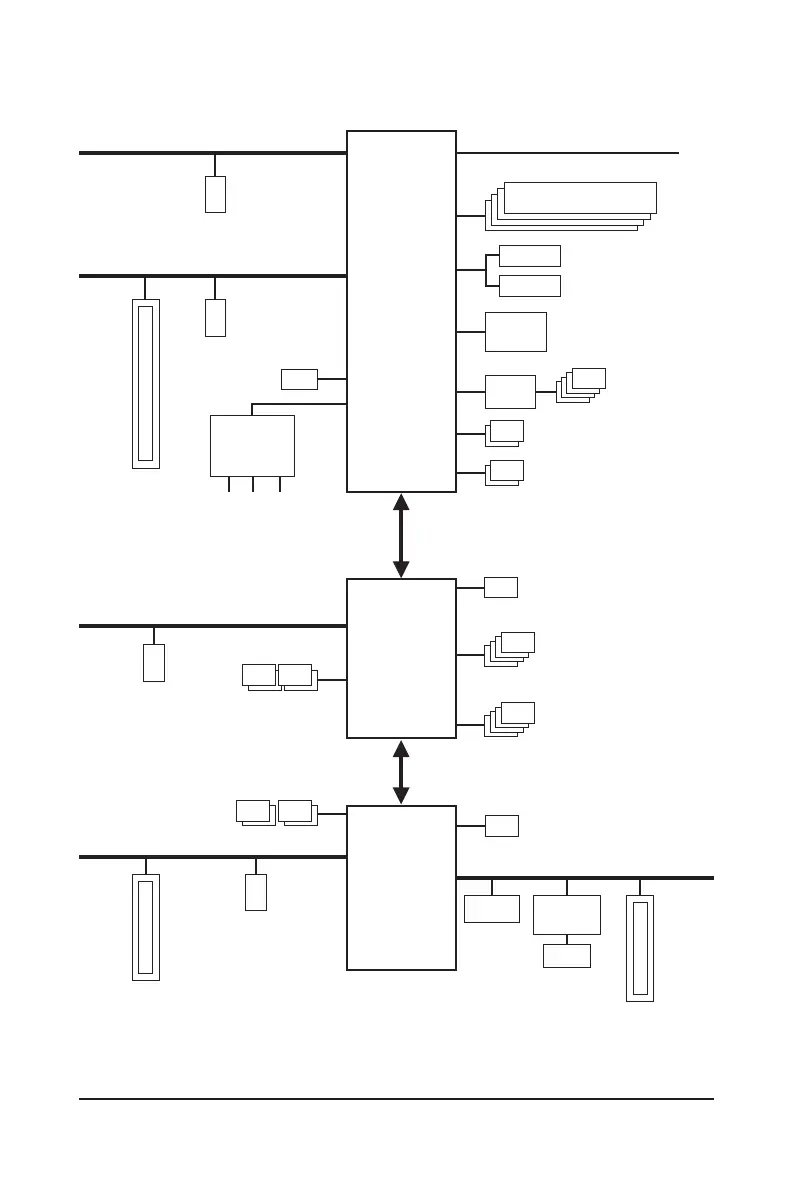

1-2 Motherboard Block Diagram
(Note) Actual support may vary by CPU.
j Only for X670 AORUS ELITE AX.
k Only for X670 GAMING X AX.
AM5 CPU
CPU CLK+/- (100 MHz)
LAN
RJ45
4 SATA 6Gb/s
PCI Express 4.0 Bus
PCI Express 4.0 Bus
PCI Express 3.0 Bus
2 USB 3.2 Gen 2 Type-A
x4 x4
x1x1
M.2 WIFI
jk
1 M.2 Socket 3
(M2C_SB)
1 M.2 Socket 3
(M2D_SB)
Realtek
®
2.5GbE LAN
DDR5 5200/4800/4400 MHz
PCIe x4PCIe x4
eSPI
Bus
SPI
Bus
iTE
®
Super I/O
BIOS
TPM
AMD Chipset
AMD Chipset
1 PCI Express x4
(PCIEX4)
x4
2 USB 3.2 Gen 1
x2
1 PCI Express x2
(PCIEX2)
PCI Express 5.0
(Note)
Bus
1 M.2 Socket 3
(M2A_CPU)
x4
Line Out
MIC
Line In
CODEC
1 HDMI 2.0
PCI Express 4.0 Bus
1 M.2 Socket 3
(M2B_CPU)
x16 x4
1 PCI Express x16
1 USB Type-C
®
,
with USB 3.2 Gen 2x2 support
4 USB 3.2 Gen 1
USB 2.0
Hub
4 USB 2.0/1.1
4 USB 2.0/1.1
1 USB Type-C
®
,
with USB 3.2 Gen 2x2 support
4 USB 3.2 Gen 1
