Gigabyte X670E AORUS XTREME User Manual

- 5 -
CPU CLK+/- (100 MHz)
DDR5 5200/4800/4400 MHz
4 SATA 6Gb/s
(SATA3 0~3)
eSPI
Bus
SPI
Bus
iTE
®
Super I/O
4 USB 2.0/1.1
1 USB Type-C
®
,
with USB 3.2 Gen 2x2 support
4 USB 3.2 Gen 2 Type-A
BIOS
TPM
PCI Express 5.0
(Note)
Bus

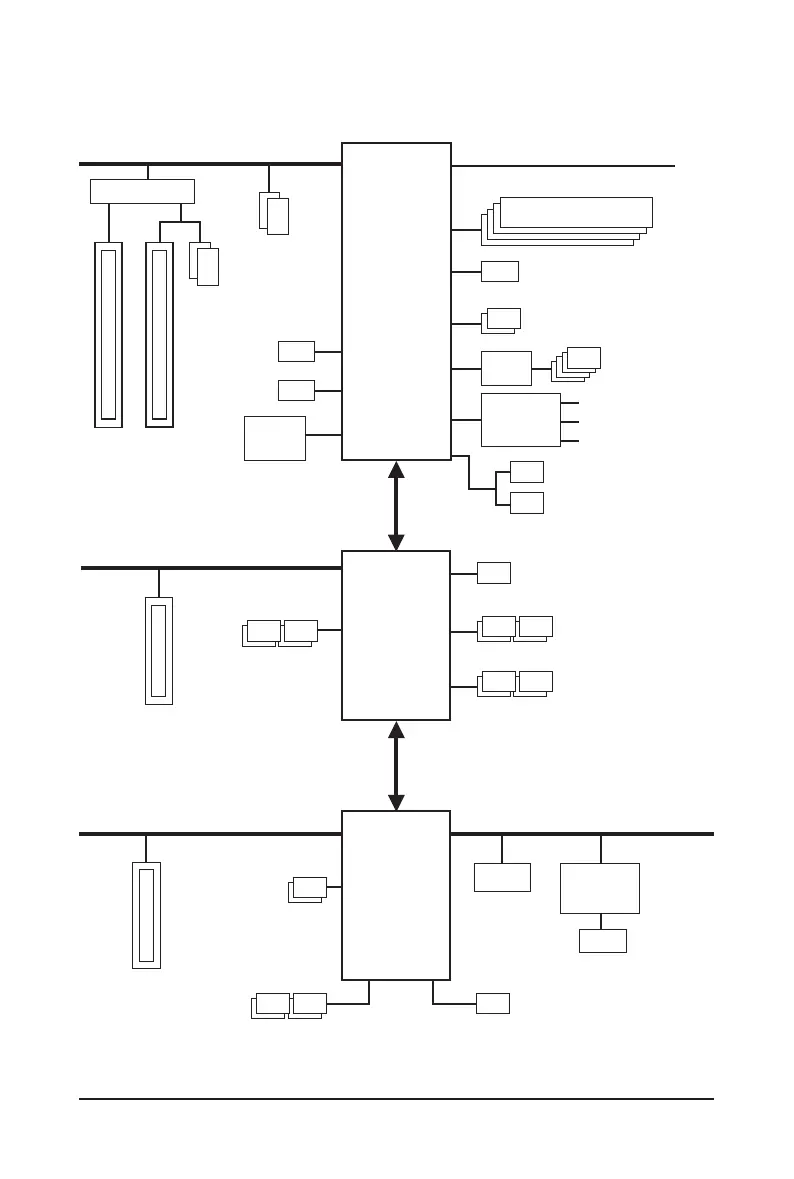

1-2 Motherboard Block Diagram
USB 2.0
Hub
Line Out
MIC
S/PDIF Out
CODEC
+
ESS ES9118
PCI Express 4.0 Bus
x4
x2
1 PCI Express x4
1 USB Type-C
®
,
with USB 3.2 Gen 2 support
2 M.2 Socket 3
(M2B_CPU, M2C_CPU)
x16
x8
Switch
or
1 PCI Express x16
2 M.2 Socket 3
(M2A_CPU, M2D_CPU)
1 PCI Express x16
AM5 CPU
2 USB 3.2 Gen 2 Type-A
(Note) Actual support may vary by CPU.
4 USB 2.0/1.1
PCI Express 3.0 Bus
x2
1 PCI Express x2
1 USB Type-C
®
,
with USB 3.2 Gen 2x2 support
LAN
RJ45
Marvell
®
AQtion
AQC113C
10GbE LAN
PCIe x4
AMD Chipset
PCIe x4
4 USB 3.2 Gen 1
2 SATA 6Gb/s
(SATA3 4~5)
PCI Express 4.0 Bus
x1
M.2 WIFI
AMD Chipset
x4
x4
1 DisplayPort 1.4
1 HDMI 2.0

Gigabyte X670E AORUS XTREME Specifications

General

Chipset	AMD X670E
CPU Socket	AM5
Form Factor	E-ATX
SATA Ports	6 x SATA 6Gb/s
Wi-Fi	Wi-Fi 6E
Bluetooth	Bluetooth 5.2
Audio Codec	Realtek ALC1220-VB
Memory Support	DDR5
M.2 Slots	5 x M.2
LAN	10GbE
RGB Headers	2 x addressable LED strip headers 2 x RGB LED strip headers
USB Ports	Rear: 12 x USB (including USB-C), Internal: 9 x USB headers
