Gigabyte Z390 M User Manual

Gigabyte Z390 M
48 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Page #2 background imageLoading...
Page #2 background image

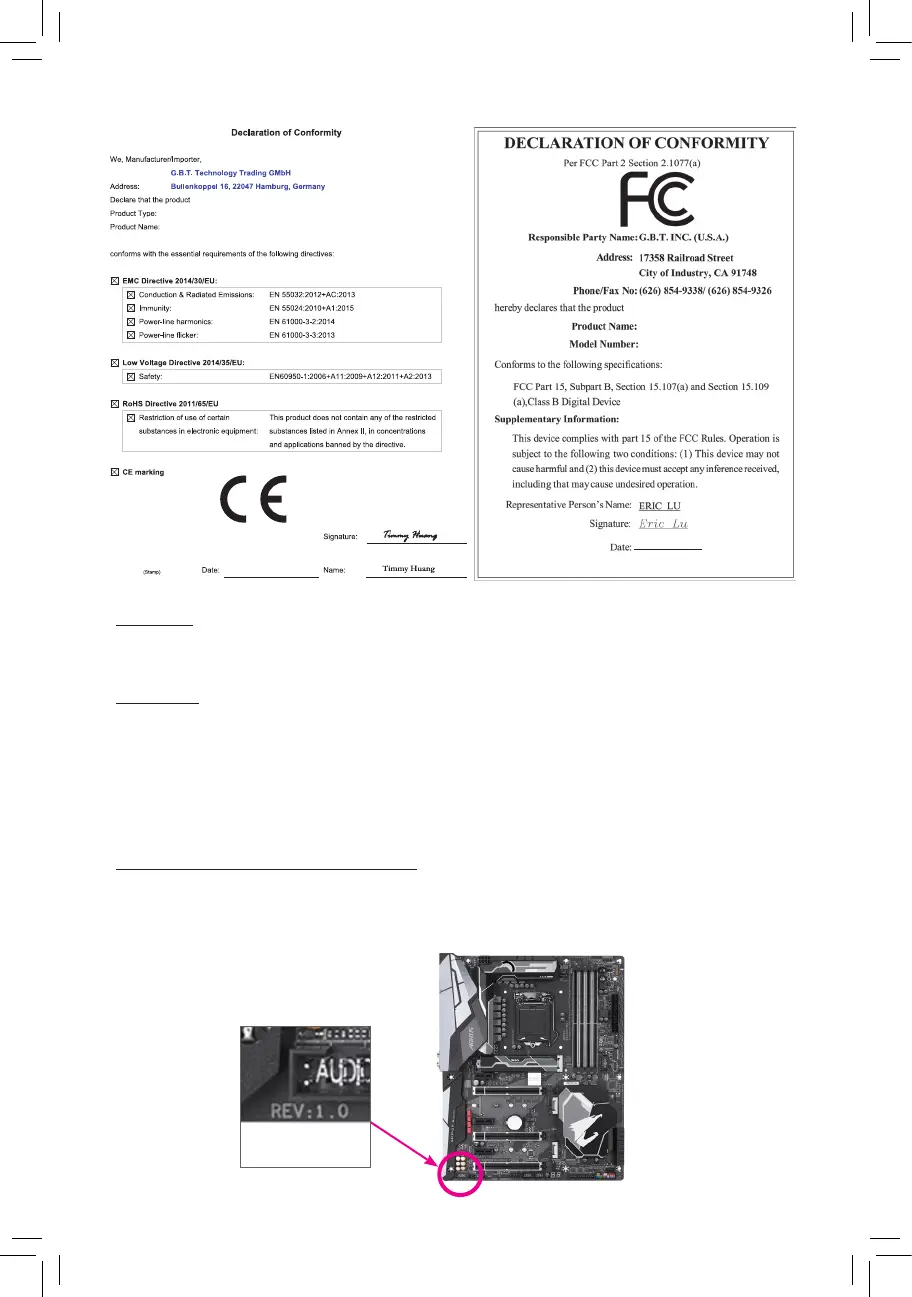

Copyright
© 2018 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.
No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or
by any means without GIGABYTE's prior written permission.
In order to assist in the use of this product, carefully read the User's Manual.
For product-related information, check on our website at: https://www.gigabyte.com
Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means
the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard
BIOS, drivers, or when looking for technical information.
Example:
Motherboard
Z390 M
Nov. 16, 2018
Nov. 16, 2018
Motherboard
Z390 M

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Gigabyte Z390 M and is the answer not in the manual?

Gigabyte Z390 M Specifications

General IconGeneral
Processor socketLGA 1151 (Socket H4)
Processor manufacturerIntel
Compatible processor seriesIntel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
ECCNo
Non-ECCYes
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR4-SDRAM
Maximum internal memory128 GB
Supported memory clock speeds4266, 4133, 4000, 3866, 3800, 3733, 3666, 3600, 3466, 3400, 3333, 3300, 3200, 3000, 2800, 2666, 2400, 2133 MHz
Supported memory module capacities4GB, 8GB, 16GB, 32GB
RAID levels0, 1, 5, 10
Supported storage drive typesHDD & SSD
Supported storage drive interfacesPCI Express 3.0, SATA III
Parallel processing technology support2-Way CrossFireX, Quad-GPU CrossFireX
USB 2.0 connectors2
Number of SATA II connectors0
Number of SATA III connectors6
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
BIOS typeUEFI AMI
ACPI version5.0
BIOS memory size128 Mbit
Desktop Management Interface (DMI) version2.7
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface typeGigabit Ethernet
Audio chipRealtek ALC892
Component forPC
Power source typeATX
Motherboard chipsetIntel Z390
Audio output channels7.1 channels
Motherboard form factormicro ATX
Windows operating systems supportedWindows 10
Weight and Dimensions IconWeight and Dimensions
Width244 mm
