- 4 -

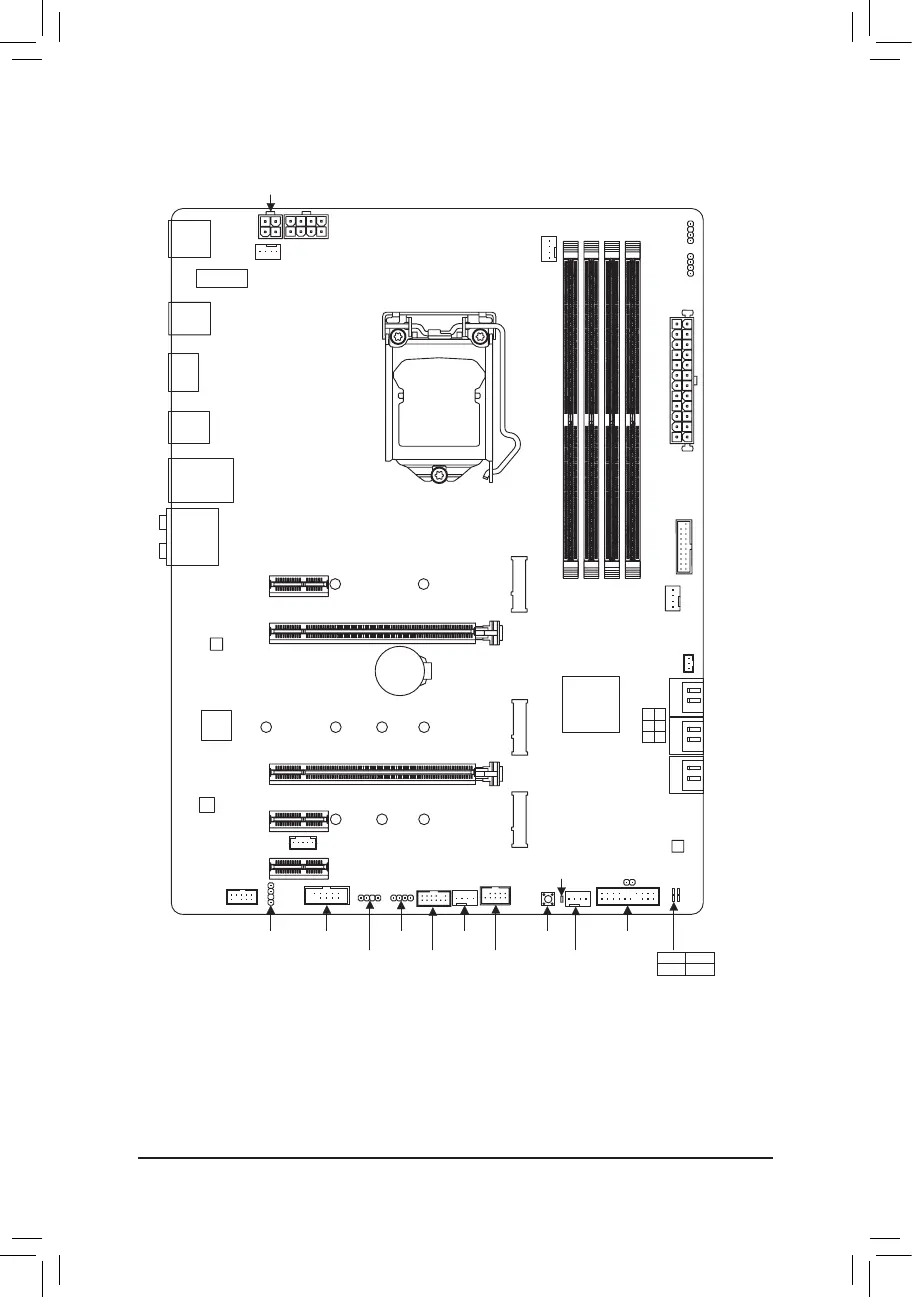

Z490 GAMING X (AX) Motherboard Layout

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

(Note) The M.2 connector is reserved only. No functionalities.

Box Contents

5 Z490 GAMING X AX or Z490 GAMING X motherboard

5 Motherboard driver disc 5 Two SATA cables

5 User's Manual 5 One antennaj

KB_MS_USB

HDMI

U32

U32_LAN

LGA1200

ATX

AUDIO

ATX_12V_2X4

Intel

Z490

CLR_CMOS

M_BIOS

PCIEX1_1

PCIEX4

PCIEX1_3

PCIEX16

PCIEX1_2

F_U32

M2A_SB M2P_CPU

(Note)

CODEC

Z490 GAMING X (AX)

F_PANEL

F_USB

LED_C1

LED_C2

D_LED1

D_LED2

F_AUDIO

COMSPDIF_O

SYS_FAN3

SYS_FAN4 QFLASH_PLUS

SPI_TPM

SYS_FAN1

SYS_FAN2

CPU_FAN

iTE

Super I/O

6080

110

SATA3

5 3 1

4 2 0

BAT

Intel

GbE LAN

CPU DRAM

VGA BOOT

U32_G2

THB_C1

THB_C2

M2M_SB

426080

ATX_12V_2X2

QFLED

DDR4_A1

DDR4_A2

DDR4_B1

DDR4_B2

CNVI j

j Only for the Z490 GAMING X AX.

Questions and Answers:

Need help?

Do you have a question about the Gigabyte Z490 GAMING X AX and is the answer not in the manual?

Gigabyte Z490 GAMING X AX Specifications

General

Audio chip	Realtek ALC1200
Component for	PC
Motherboard chipset	Intel Z490 Express
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10 x64
Bundled software	Norton Internet Security (OEM) cFosSpeed
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Desktop Management Interface (DMI) version	2.7
HDMI version	1.4
PS/2 ports quantity	1
DVI-D ports quantity	0
WiFi-AP antenna jack	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
Number of SATA III connectors	6
PCI Express x1 (Gen 3.x) slots	3
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA III
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	512 MB
Parallel processing technology support	2-Way CrossFireX, Quad-GPU CrossFireX
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet interface type	Gigabit Ethernet
Processor socket	LGA 1200 (Socket H5)
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600 MHz
