- 15 -

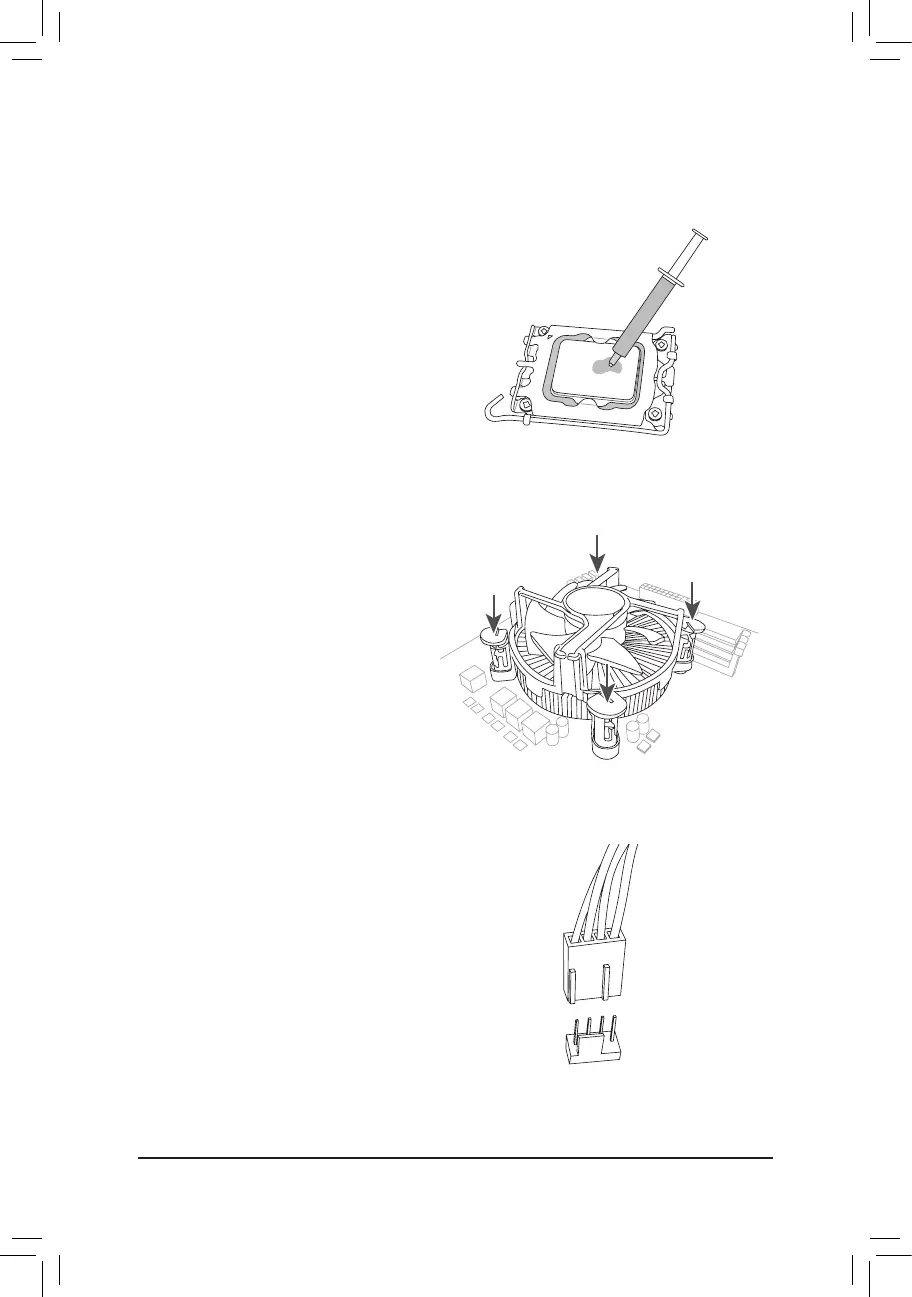

C. Installing the CPU Cooler
Be sure to install the CPU cooler after installing the CPU. (Actual installation process may differ depending the
CPU cooler to be used. Refer to the user's manual for your CPU cooler.)
u
v
Apply an even and thin layer of thermal
grease on the surface of the installed CPU.
Place the cooler atop the CPU, aligning the
four push pins through the pin holes on the
motherboard. Push down on the push pins
diagonally.
j
j
k
k
w
Finally, attach the power connector of
the CPU cooler to the CPU fan header
(CPU_FAN) on the motherboard.
CPU_FAN

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Gigabyte Z690 AORUS ELITE DDR4 and is the answer not in the manual?

Gigabyte Z690 AORUS ELITE DDR4 Specifications

General IconGeneral
ChipsetIntel Z690
CPU SocketLGA 1700
Memory TypeDDR4
Memory Slots4
Max Memory128 GB
PCIe x1 Slots1
Storage Interface6 x SATA 6Gb/s
USB 3.2 Gen 2x2 Ports1
USB 3.2 Gen 2 Ports3
USB 3.2 Gen 1 Ports4
USB 2.0 Ports8
Form FactorATX
NetworkIntel 2.5GbE LAN
RAID SupportRAID 0, 1, 5, 10
M.2 Slots3
AudioRealtek ALC1220-VB
LAN2.5GbE
PCIe Slots1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16 (x4 mode)
