Gigabyte Z690 AORUS ELITE DDR4 User Manual

- 20 -

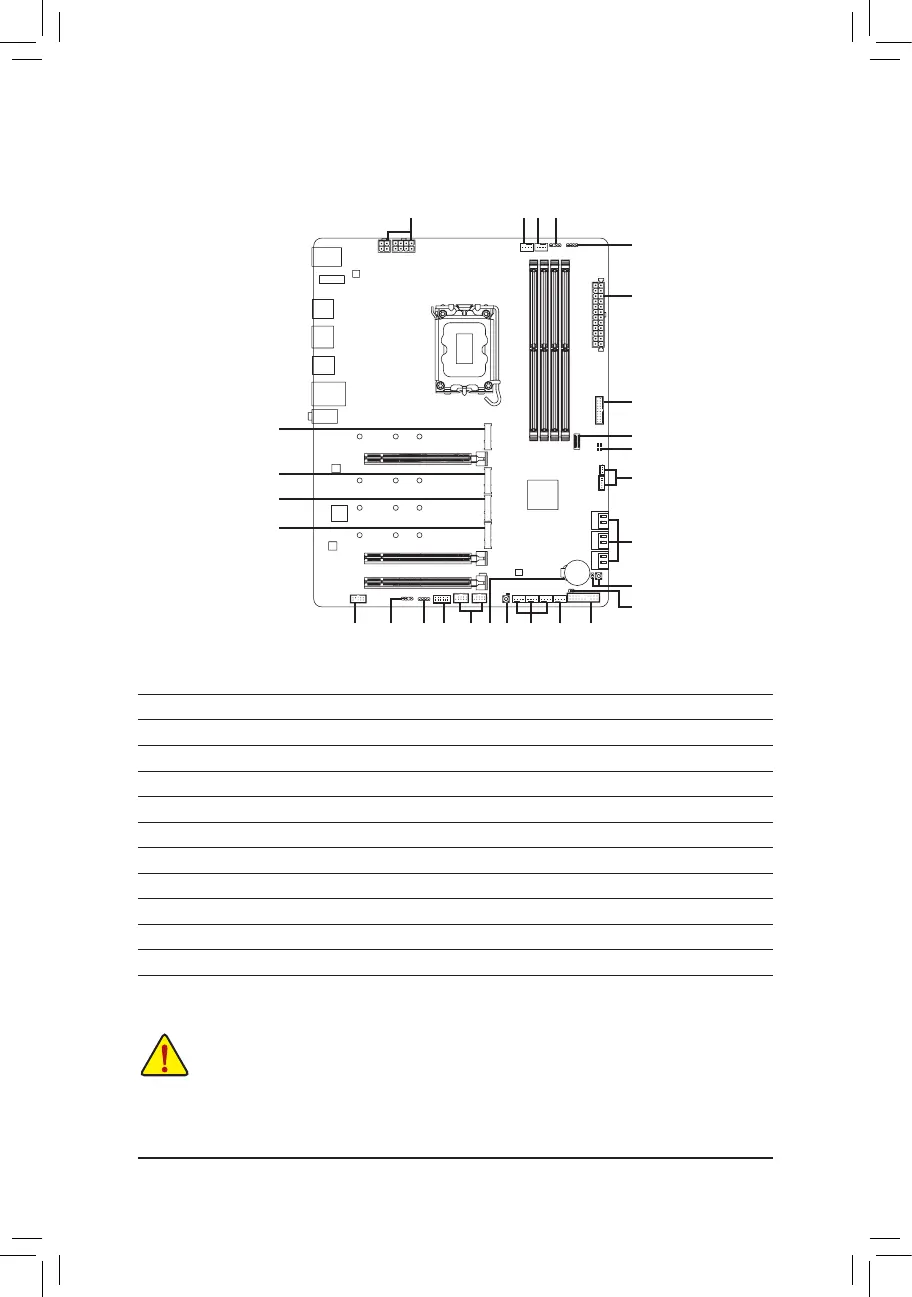

2-7 Internal Connectors
1) ATX_12V_2X2/ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/2/3
5) SYS_FAN4_PUMP
6) CPU_OPT
7) LED_C1/LED_C2
8) D_LED1/D_LED2
9) SATA3 2/3/4/5/6/7
10) M2A_CPU/M2P_SB/M2Q_SB/M2M_SB
11) F_PANEL
12) F_AUDIO
13) F_U32C
14) F_U32
15) F_USB1/F_USB2
16) SPI_TPM
17) THB_C1/THB_C2
18) CLR_CMOS
19) BAT
20) RST_SW/RST
21) QFLASH_PLUS
22) CPU/DRAM/VGA/BOOT
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1119
14
13
2
7
17
9
15 412 16
81
8 7
18
20
36
10
10
10
10
521
22

Gigabyte Z690 AORUS ELITE DDR4 Specifications

General

Chipset	Intel Z690
CPU Socket	LGA 1700
Memory Type	DDR4
Memory Slots	4
Max Memory	128 GB
PCIe x1 Slots	1
Storage Interface	6 x SATA 6Gb/s
USB 3.2 Gen 2x2 Ports	1
USB 3.2 Gen 2 Ports	3
USB 3.2 Gen 1 Ports	4
USB 2.0 Ports	8
Form Factor	ATX
Network	Intel 2.5GbE LAN
RAID Support	RAID 0, 1, 5, 10
M.2 Slots	3
Audio	Realtek ALC1220-VB
LAN	2.5GbE
PCIe Slots	1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16 (x4 mode)
