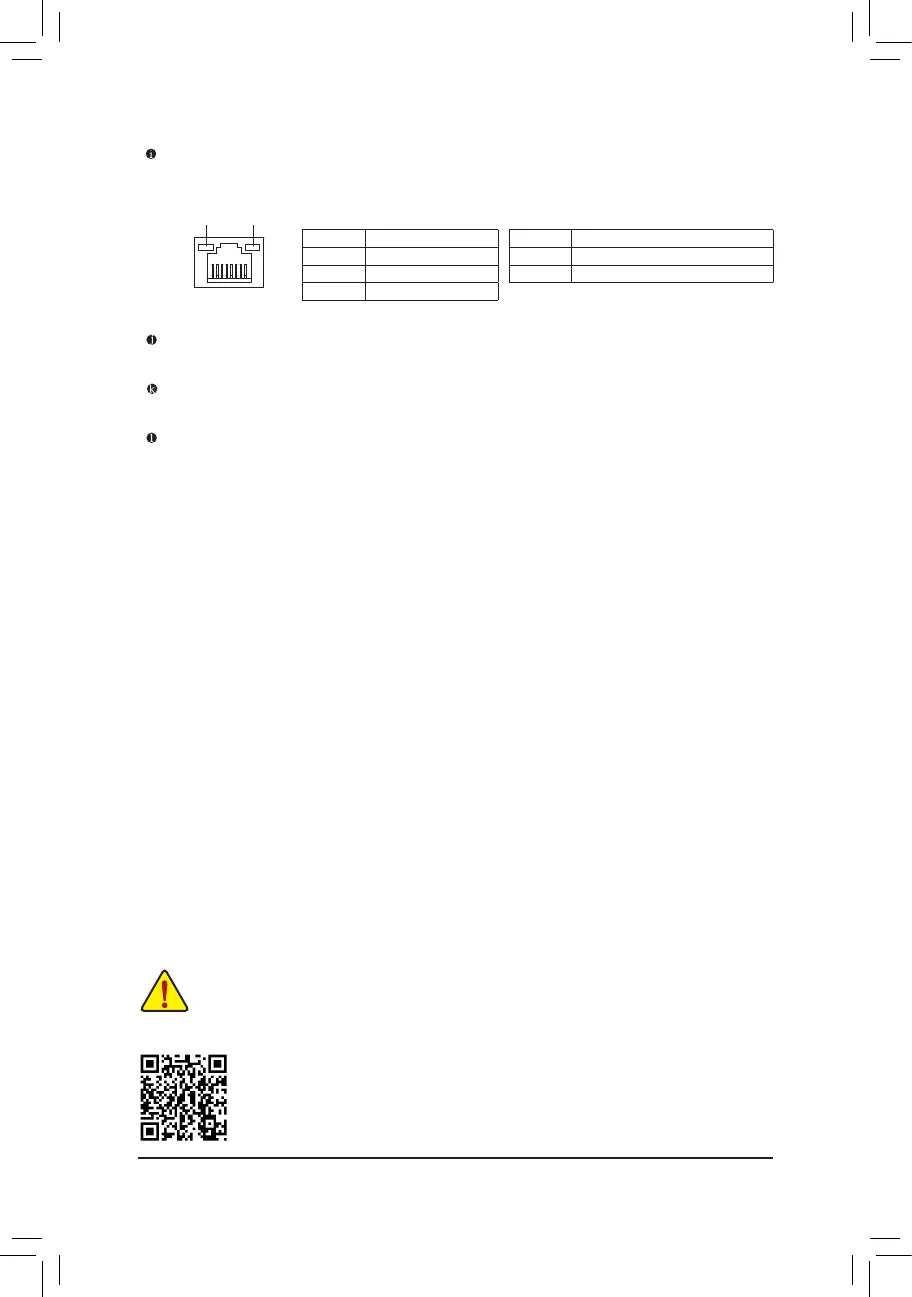

- 19 -
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 2.5 Gbps data rate. The following
describes the states of the LAN port LEDs.
Please visit GIGABYTE's website for details on conguring the audio software.
Activity LED
Speed LED
LAN Port
Speed LED:
State Description
Orange 2.5 Gbps data rate
Green 1 Gbps data rate
Off 100 Mbps data rate
Activity LED:
State Description
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
Line Out
The line out jack.
Mic In
The Mic in jack.
Optical S/PDIF Out Connector
This connector provides digital audio out to an external audio system that supports digital optical audio.
Before using this feature, ensure that your audio system provides an optical digital audio in connector.
When removing the cable connected to a back panel connector, rst remove the cable from your
device and then remove it from the motherboard.
When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Gigabyte Z690 AORUS ELITE DDR4 and is the answer not in the manual?

Gigabyte Z690 AORUS ELITE DDR4 Specifications

General IconGeneral
ChipsetIntel Z690
CPU SocketLGA 1700
Memory TypeDDR4
Memory Slots4
Max Memory128 GB
PCIe x1 Slots1
Storage Interface6 x SATA 6Gb/s
USB 3.2 Gen 2x2 Ports1
USB 3.2 Gen 2 Ports3
USB 3.2 Gen 1 Ports4
USB 2.0 Ports8
Form FactorATX
NetworkIntel 2.5GbE LAN
RAID SupportRAID 0, 1, 5, 10
M.2 Slots3
AudioRealtek ALC1220-VB
LAN2.5GbE
PCIe Slots1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16 (x4 mode)
