Gigabyte Z790M AORUS ELITE AX User Manual

- 19 -

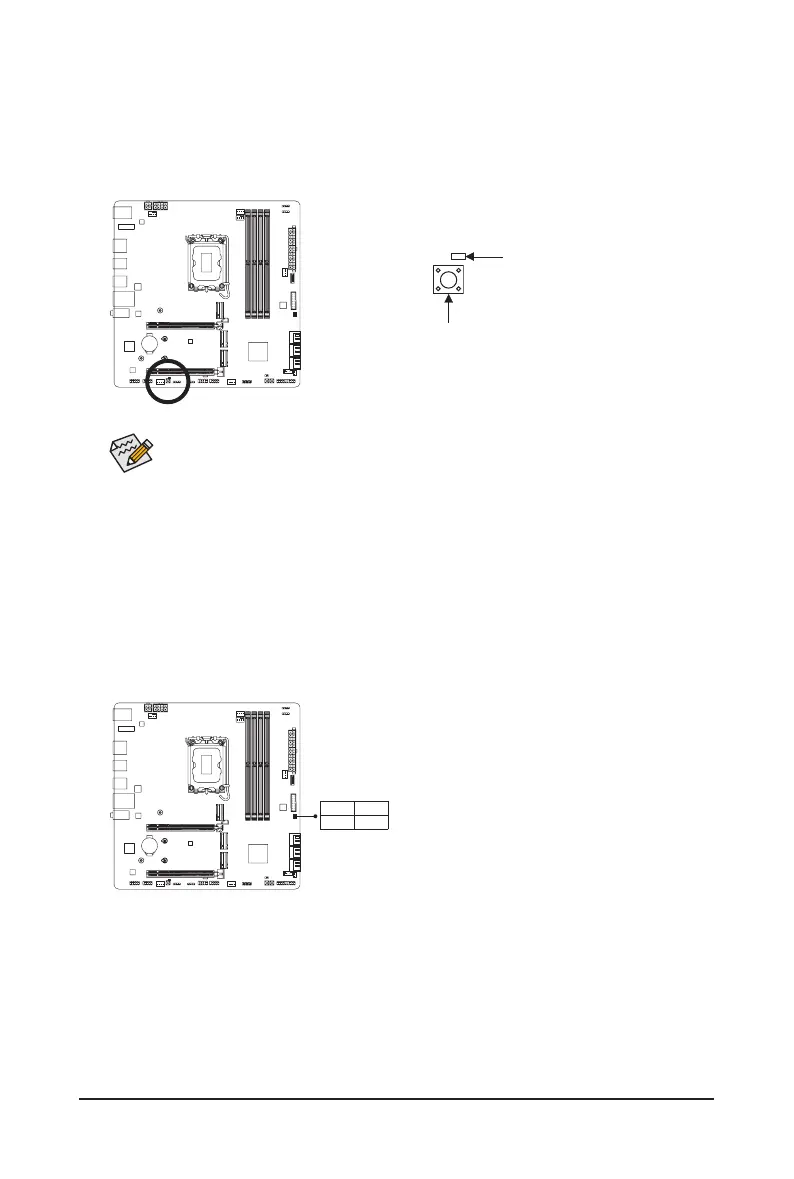

QFLASH_PLUS (Q-Flash Plus Button)
Q-Flash Plus allows you to update the BIOS when your system is off (S5 shutdown state). Save the latest
BIOS on a USB thumb drive and plug it into the dedicated port, and then you can now ash the BIOS
automatically by simply pressing the Q-Flash Plus button. The QFLED will ash when the BIOS matching and
ashing activities start and will stop ashing when the main BIOS ashing is complete.
To enable the Q-Flash Plus function, please navigate to the "Unique Features" page of GIGABYTE's
website for more information.
QFLASH_PLUS
QFLED
Status LEDs
(Note)
The status LEDs show whether the CPU, memory, graphics card, and operating system are working properly
after system power-on. If the CPU/DRAM/VGA LED is on, that means the corresponding device is not working
normally; if the BOOT LED is on, that means you haven't entered the operating system yet.
CPU DRAM
VGA BOOT
CPU: CPU status LED
DRAM: Memory status LED
VGA: Graphics card status LED
BOOT: Operating system status LED
(Note) Only for PCB rev. 1.1 or later.

Gigabyte Z790M AORUS ELITE AX Specifications

General

Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Gold
Supported processor sockets	LGA 1700
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	7600, 7400, 7200, 4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000 MHz
Supported memory clock speed (max)	7600 MHz
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet interface type	2.5 Gigabit Ethernet
USB 2.0 connectors	2
Number of SATA III connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB connector type	USB Type-A, USB Type-C
DisplayPort version	1.2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	0
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	10
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
Cables included	SATA
Bundled software	Norton Internet Security
PCI Express x16 slots	3
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	256 Mbit
Desktop Management Interface (DMI) version	2.7
Maximum resolution	4096 x 2304 pixels
Parallel processing technology support	Crossfire
Component for	PC
Motherboard chipset	Intel Z790
PC health monitoring	FAN, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64

Weight and Dimensions

Width	244 mm
