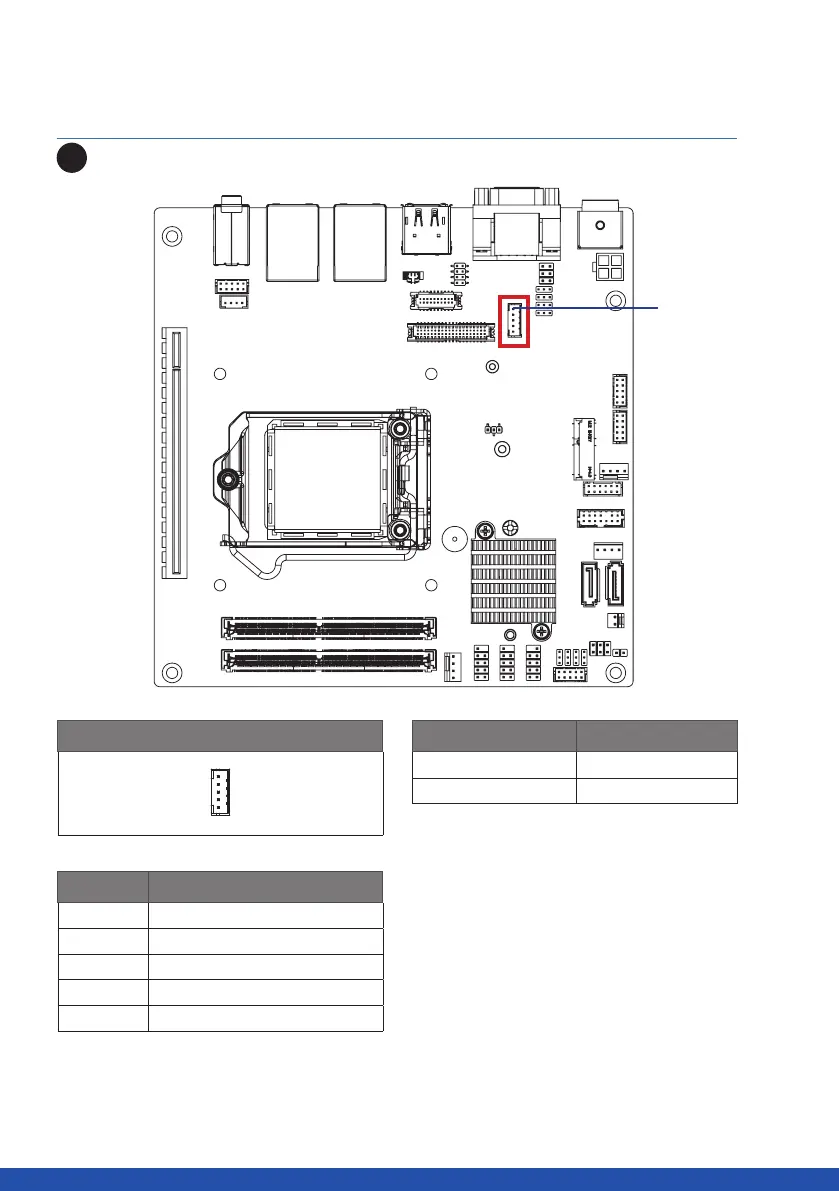

2.2.9 BKL_CN (Backlight Control connector)
11
Backlight Control connector
1
5
Pin No. Definition
1 5V
2 PWM
3 Back Light Enable
4 GND
5 12V
Connector PN Vendor
85205-0270L ACES
A1250WV-S-02PC JOINT-TECH
Pin 1
