GIGAIPC QBi-6412A User Manual

30
www.gigaipc.com
QBi Series - 10” x 10” Embedded Compact Board QBi-6412A(MEHLJAH)

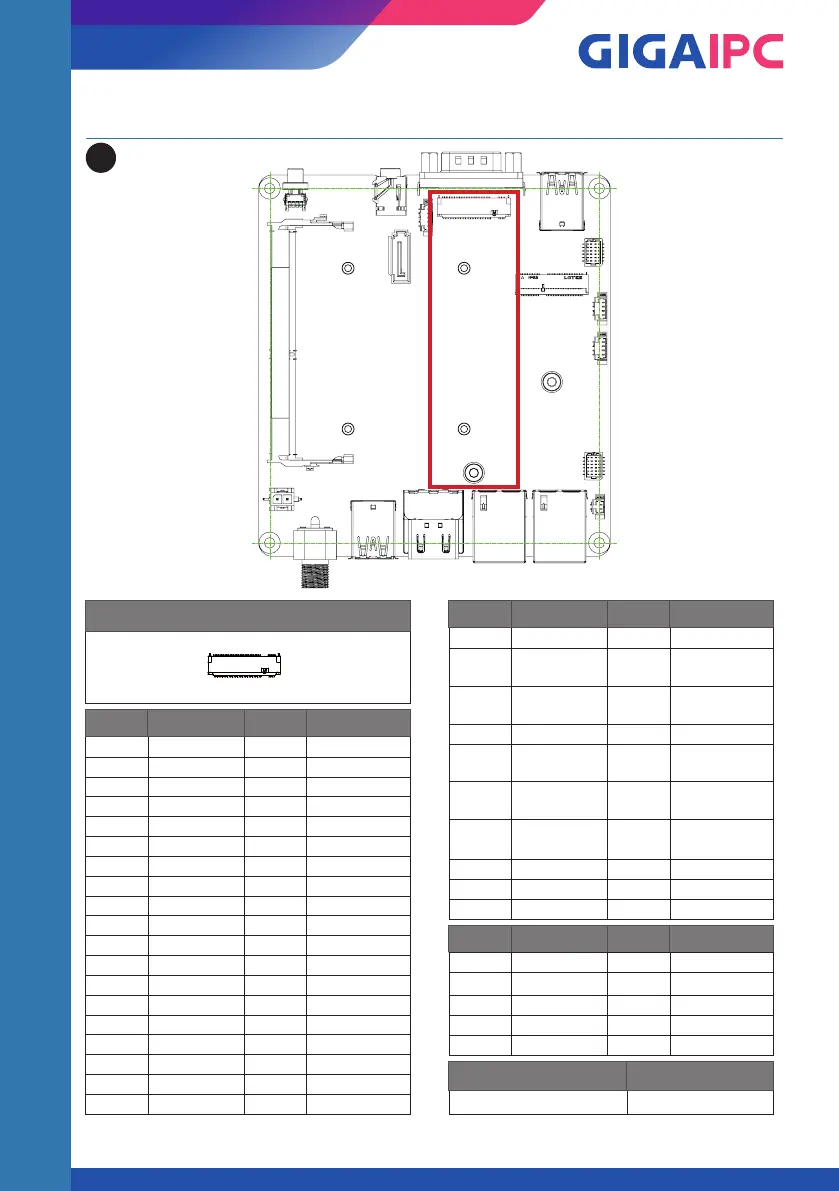

2.2.9 M2M (M.2 Slot, M-Key NGFF 2280)
9
M.2 M Key Connector
1
2
75
74
Pin No. Definition Pin No. Definition
1 GND 2 3.3V
3 GND 4 3.3V
5 NC 6 NC
7 NC 8 NC
9 GND 10 SSD LED
11 NC 12 3.3V
13 NC 14 3.3V
15 GND 16 3.3V
17 NC 18 3.3V
19 NC 20 NC
21 GND 22 NC
23 NC 24 NC
25 NC 26 NC
27 GND 28 NC
29 PCIE1 RXn 30 NC
31 PCIE1 RXp 32 NC
33 GND 34 NC
35 PCIE2 TXn 36 NC
37 PCIE2 TXp 38 NC
Pin No. Definition Pin No. Definition
39 GND 40 NC
41
PCIE0 RXn/
SATA Bp
42 NC
43
PCIE0 RXp/
SATA Bn
44 NC
45 GND 46 NC
47
PCIE0 TXn/
SATA An
48 NC
49
PCIE0 TXp/
SATA Ap
50 PCI Reset
51 GND 52
PCIE Clock
Request
53 PCIE Clock n 54 NC
55 PCIE Clock p 56 NC
57 GND 58 NC
Pin No. Definition Pin No. Definition
67 NC 68 NC
69 Detect 70 3.3V
71 GND 72 3.3V
73 GND 74 3.3V
75 GND
Connector PN Vendor
80159-8521 BELLWETHER
