GILANI ENGINEERING Air Hawk - Charge Battery

46
I2
I1
Installing the battery
Hold the battery handle, insert the other side of the battery into the right‐ side opening of
the battery tube until the battery is all the way inside, then insert the red power plug into the
bottom opening of the battery tube.
Charge the Battery
1.Use available standard alternating current (AC 110‐220
V, 50‐60 Hz) for charging, the charging port is in front
of the
cont
rol panel below.
2.M
ake sure that you power off the wheelch
air before
charging
.

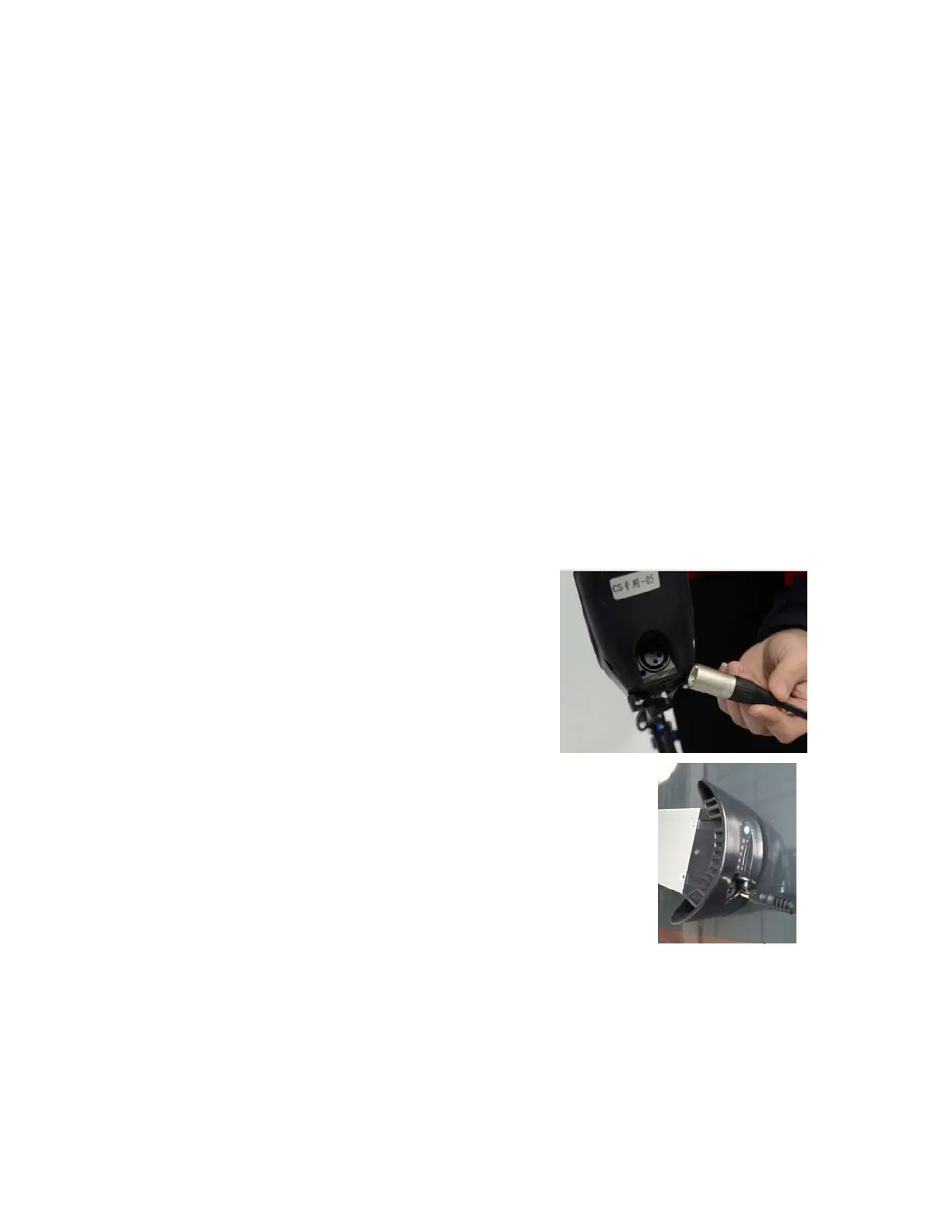

3.Insert the charging cable of the charger
into the
charging port in
front of the control panel below. (As shown in figure
I1) or you can also charge the battery directly (as shown in I2)
3.1 Insert the other side of the charger into the wall socket. If the red
indicator light is on, it shows it’s charging.
3.2 The indicator light to see the next picture: red display power
supply, orange display charge, the green display charging is completed;
