PAGE 23

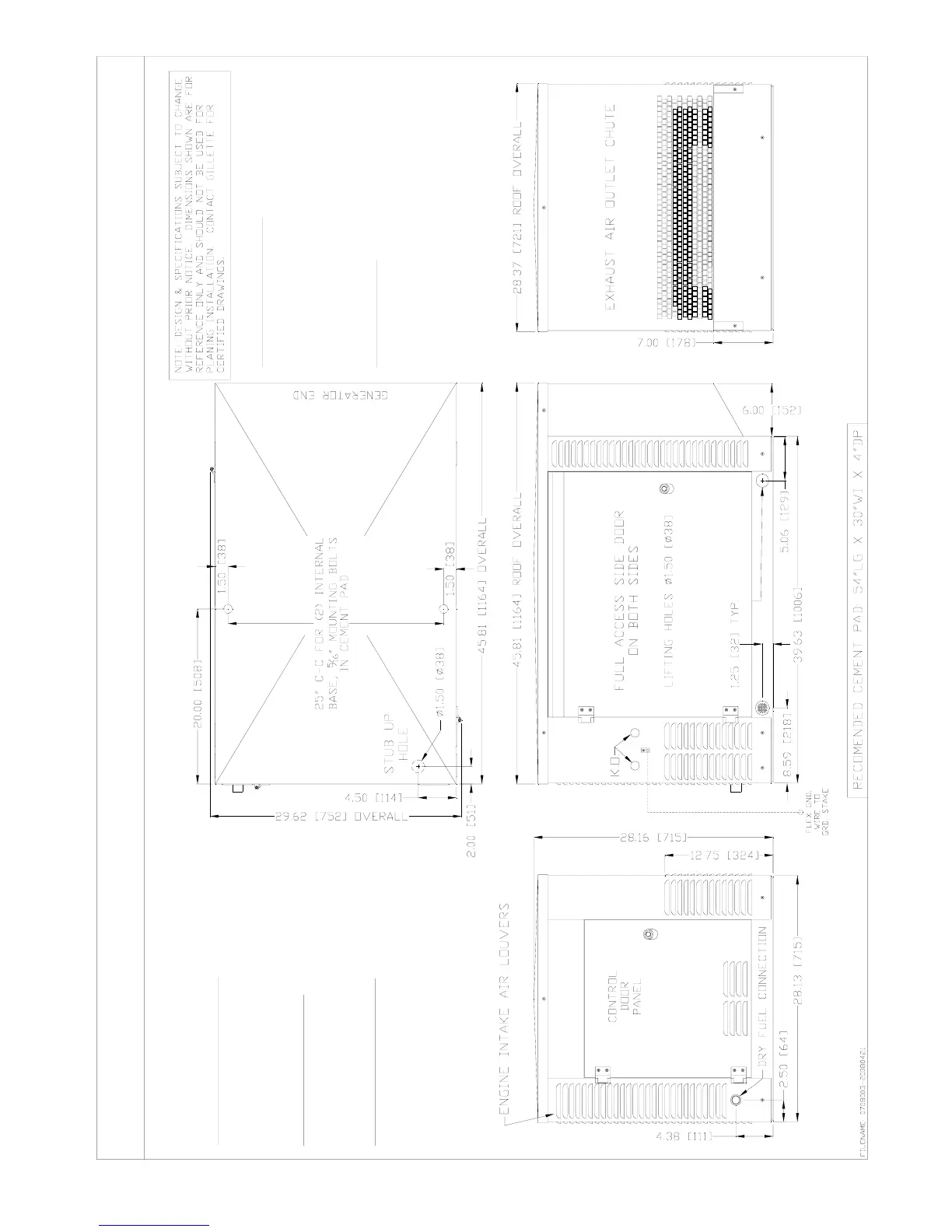

DIMENSIONAL OVERVIEW PRINT OF MODELS: SPS−100, SPH−120, & SPS−120
SIDE VIEW
ENGINE END VIEW
DRAWING NOT TO SCALE & DIMENSIONS = IN [MM]
(4) LIFTING HOLES IN BASE:
1-1/2" DIA. HOLES ARE INSTALLED IN BASE, FOR
LIFTING EQUIPMENT. REMOVE PLASTIC COVERS
IN THESE HOLES, AND RE-INSTALL COVERS WHEN
GEN-SET IS IN PLACE.
DRY FUEL CONNECTION:
LPG OR NAT. GAS CONNECTION IS LOCATED ON
THE ENGINE END PANEL AS SHOWN. THERE IS A
3/4" THREADED MALE PIPE FOR CONNECTION.
ELECTRICAL CONNECTION:
THERE ARE TWO KNOCK-OUT HOLES ON THE
RIGHT HAND SIDE OF GENERATOR END. BOTH
HOLES ARE FOR 3/4" CONDUIT.
GENERATOR END VIEW
CONTROL DOOR PANEL:
THIS PANEL IS HERE TO HELP WITH INITIAL
WIRING INSTALLATION AND QUICK ACCESS TO
GENERATOR CONTROLS. QUALIFIED PERSONEL
ONLY: UN-LOCK AND OPEN, CONTROL DOOR.
REMOVE ROOF SCREW AND SLIDE BLANK PANEL
DOWN AND OFF, FOR FULL WIRING ACCESS
EXHAUST CHUTE:
LOCATED IN THIS CHUTE, IS THE EXHAUST PIPE
OF MUFFLER PLEASE KEEP CLEAR WHILE UNIT IS
RUNNING OR HOT. DO NOT INSTALL UNIT WHERE
THE EXHAUST MAY COME INTO CONTACT WITH
FLAMMABLE OBJECTS. SEE PAGE 13 OF
OWNERS GUIDE FOR MORE INSTALLATION
INFORMATION.
