Gilmour 9400 - Detachable Electronics Feature

4
Detachable Electronics
Easy to Program
Models #9400 & #9408

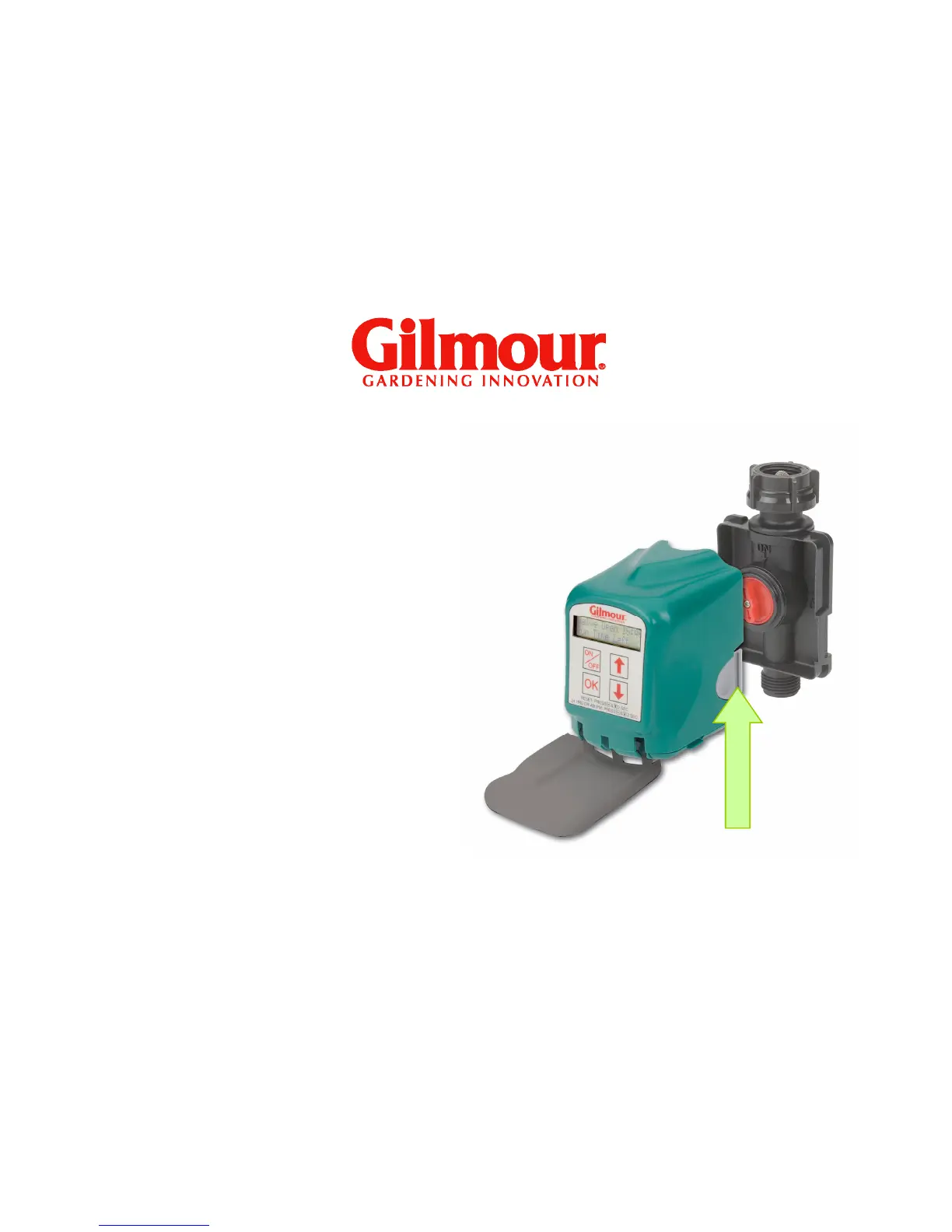

The electronics portion of the
timer can be removed from
the valve section for easier
programming
.
Press
the
gray
Just squeeze the side
grips and pull to remove.
programming
.
Press
the
gray
buttons on each side of the
timer body to release the
electronics.
After programming, slide the
electronics back over the
valve until the gray buttons
snap back into place.
