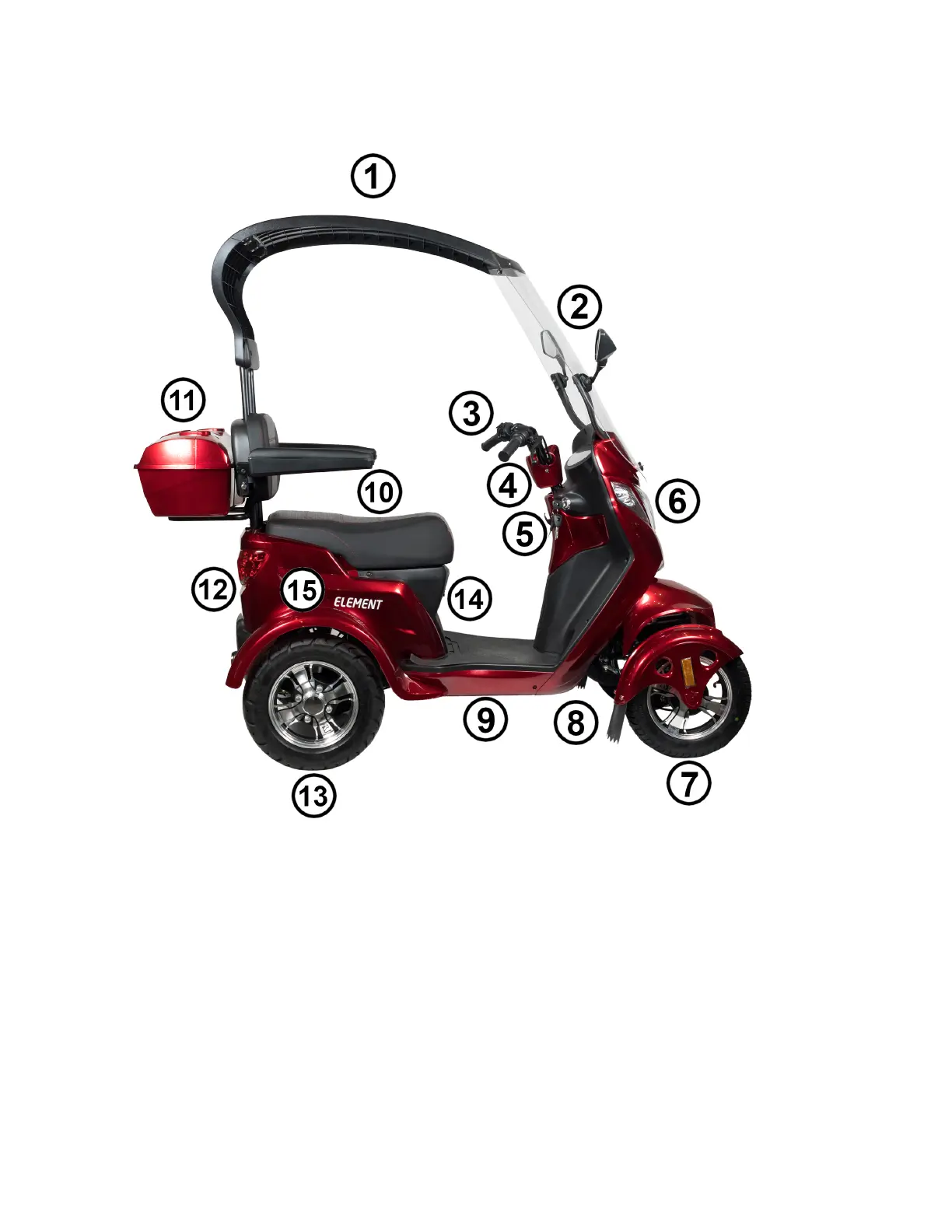

Scooter Diagram
1) Canopy 9) Footrest
2) Mirrors 10) Seat
3) Handlebars & Controls 11) Storage Compartment
4) Steering column & LCD Display 12) Rear lights/turn signals
5) Ignition Switch 13) Rear wheels/brakes
6) Headlight & Turnsignals 14) Charging port
7) Front wheels/brakes 15) Battery, Controller,
8) Front fender/mud flaps Motor (Internal)
