7

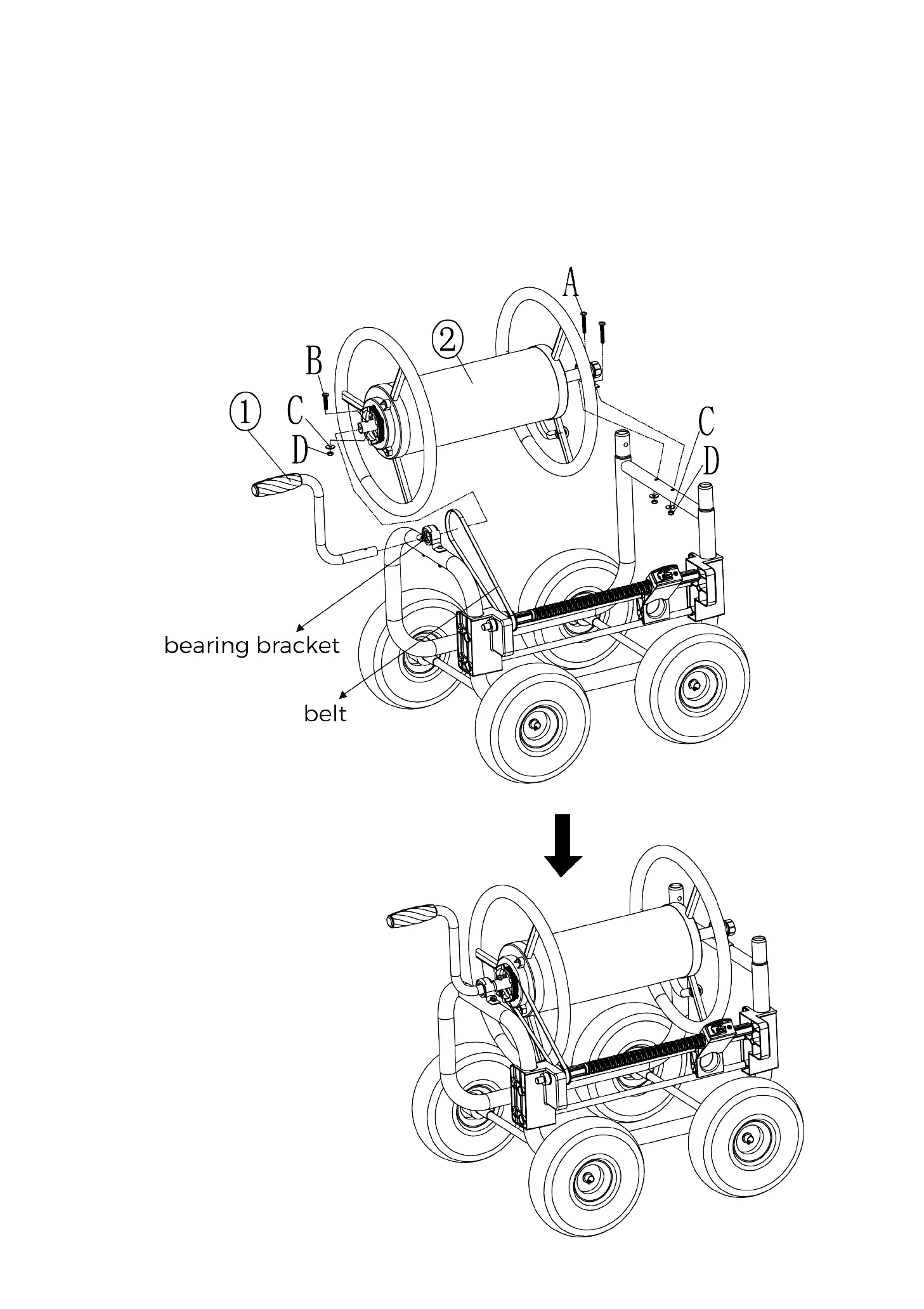

Step 2
：
Insert the
crank handle
①
to the hole of the bearing bracket (do not cross the belt).
Put the
hose reel
②
on hose guide frame and assemble the belt on the gear of
the hose reel. Last, insert the crank handle all in.
Use the M6 x 30 bolt (B), M6 flat washer (C), M6 Nylon nut (D) to install the crank
handle. Use the M6 x 45 bolt (A), M6 flat washer (C), M6 Nylon nut (D) to install the
hose reel, which is shown in picture as follows.
