Page 9 of 14
98GC1029 5 CHANNEL HANDSET

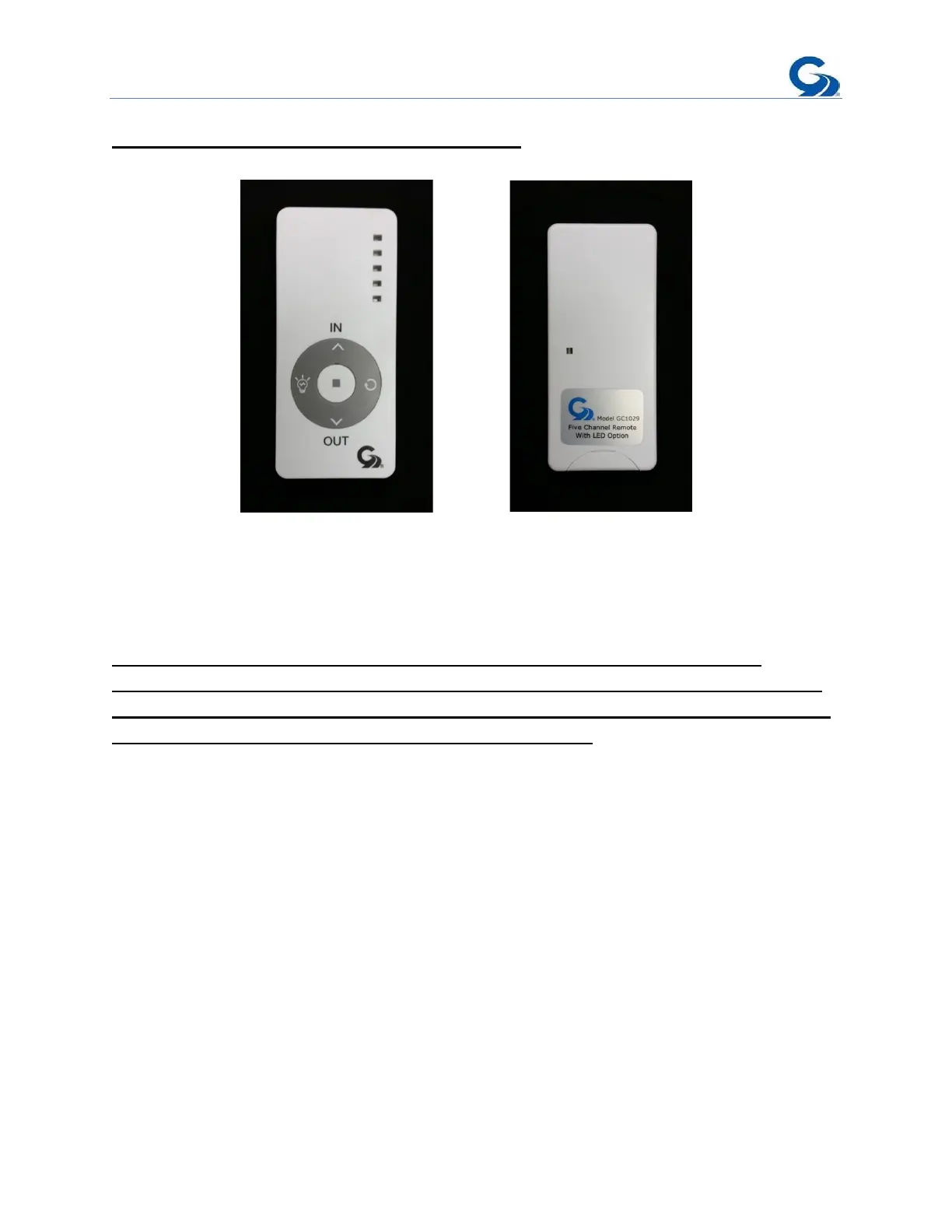

Fig.1 Fig.2
The 98GC1029 remote handset is a 5-channel RF transmitter, which is powered by a
single 3v Lithium battery (CR2430) designed to control up to 5 awnings and operates
the LED lighting strips by means of a multi-functional circular control pad. As shown in
Fig.1 above.
Note; when carrying out this part of the procedure each step must be
executed within 10 seconds of the previous one or the module will revert to
factory settings. It is highly recommended that you read and understand the
following sequence before attempting to execute it.
1) Supply power to the Motor controller. (The GC1146C will emit a soft beep)
2) Select the desired channel on the remote handset.
3) Using an appropriate tool press the P2 button on the back of the Handset
TWICE. ( The GC1146C will Beep with each press)
4) Press the IN button on the wall switch and verify that the awning moves in the
desired direction.
If the awning extends at this point instead of retracting, press the STOP button
immediately, then remove the power supply to the motor controller for at least 10
seconds.
Next repeat steps 1, 2 and 3 above then press the OUT button on the wall switch to
complete the programming procedure.
Ensure that the awning responds correctly to the wall switch by pressing the OUT,
STOP and IN buttons alternately.
