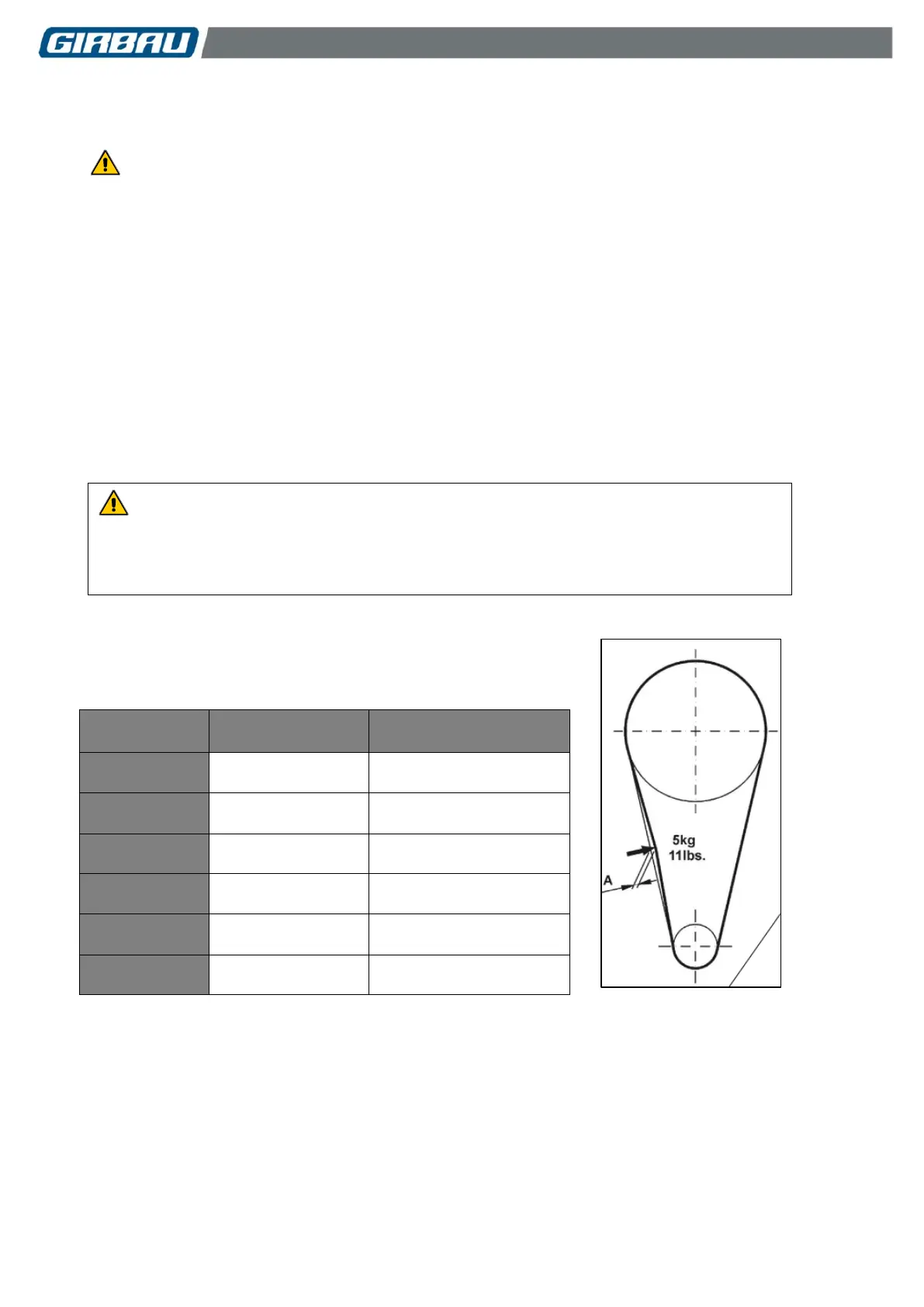

Page #46 background imageLoading...
Page #46 background image
Installation 46
Cod.nº 429043
Rev. No. 21/0519
3.6. External signal. Connection
CAUTION!
Option available in Inteli Control models only.
To be able to use this option, the washing machine must be fitted with the A6 board, duly installed and activated
in the SETUP menu.
External signal. It is possible to use an order from the washing machine control to issue an end of program or
alarm warning.
See Inteli control Operation Manual for further information.
External signal specifications.
Free voltage contact between terminals X4-5 and X4-6 on the A6 board.
Maximum intensity allowed: 1A.
Maximum voltage: 240V.AC.
3.7. Tensioning belts
ATTENTION!
Excessive tightening will
dramatically reduce the life of the motors and can cause
breakage of the pulley or the shaft.
A belt that is too slack can lead to jerky movements and cause damage to the belt itself.
To check the tension of the belts, apply a force in the centre of the
span of 5 kg (11 lb) and tighten until obtaining the values shown in
the table below.
NEW BELTS
BELTS
IN USE
HS-6013
EH030
10 mm (0.39 in) 12 mm (0.47 in)
HS-6017
EH040
7 mm (0.28 in) 9 mm (0.35 in)
HS-6023
EH055
18 mm (0.71 in) 20 mm (0.79 in)
HS-6024
EH060
9 mm (0.35 in) 10 mm (0.39 in)
HS-6028
EH070
9 mm (0.35 in) 11 mm (0.43 in)
HS-6032
EH080
9 mm (0.35 in) 11 mm (0.43 in)
Fig. 3.18
