ENUSER MANUAL GI400 / GI410
36

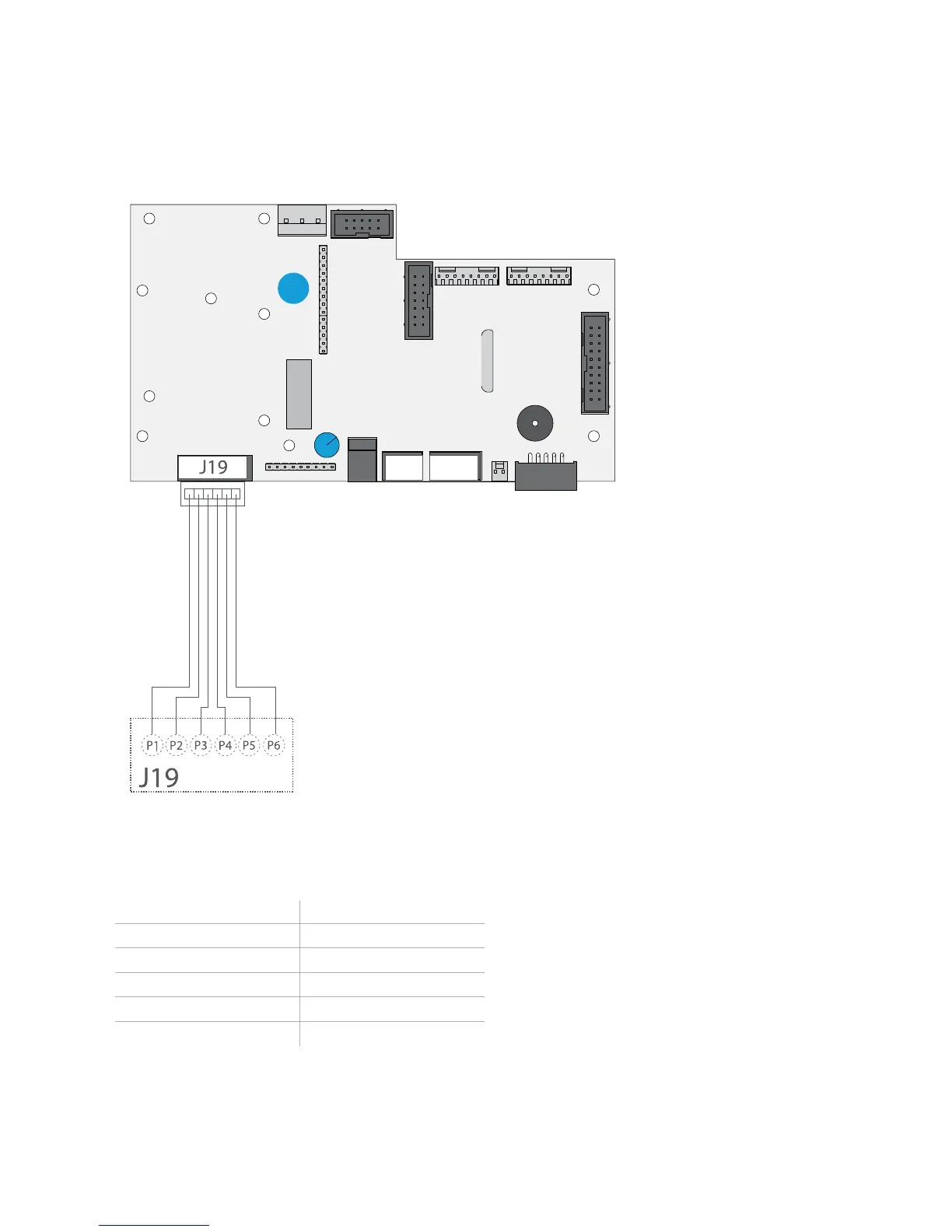

9.2 CONNECTION SCHEME IP65 / IP68
9.2.1 LOAD CELL
CELL CABLE
CONNECTOR J19
pin 1 IN+ (out célula)
pin 2 IN- (out célula)
pin 3 SENSE+
pin 4 SENSE-
pin 5 EXC+
pin 6 EXC-
