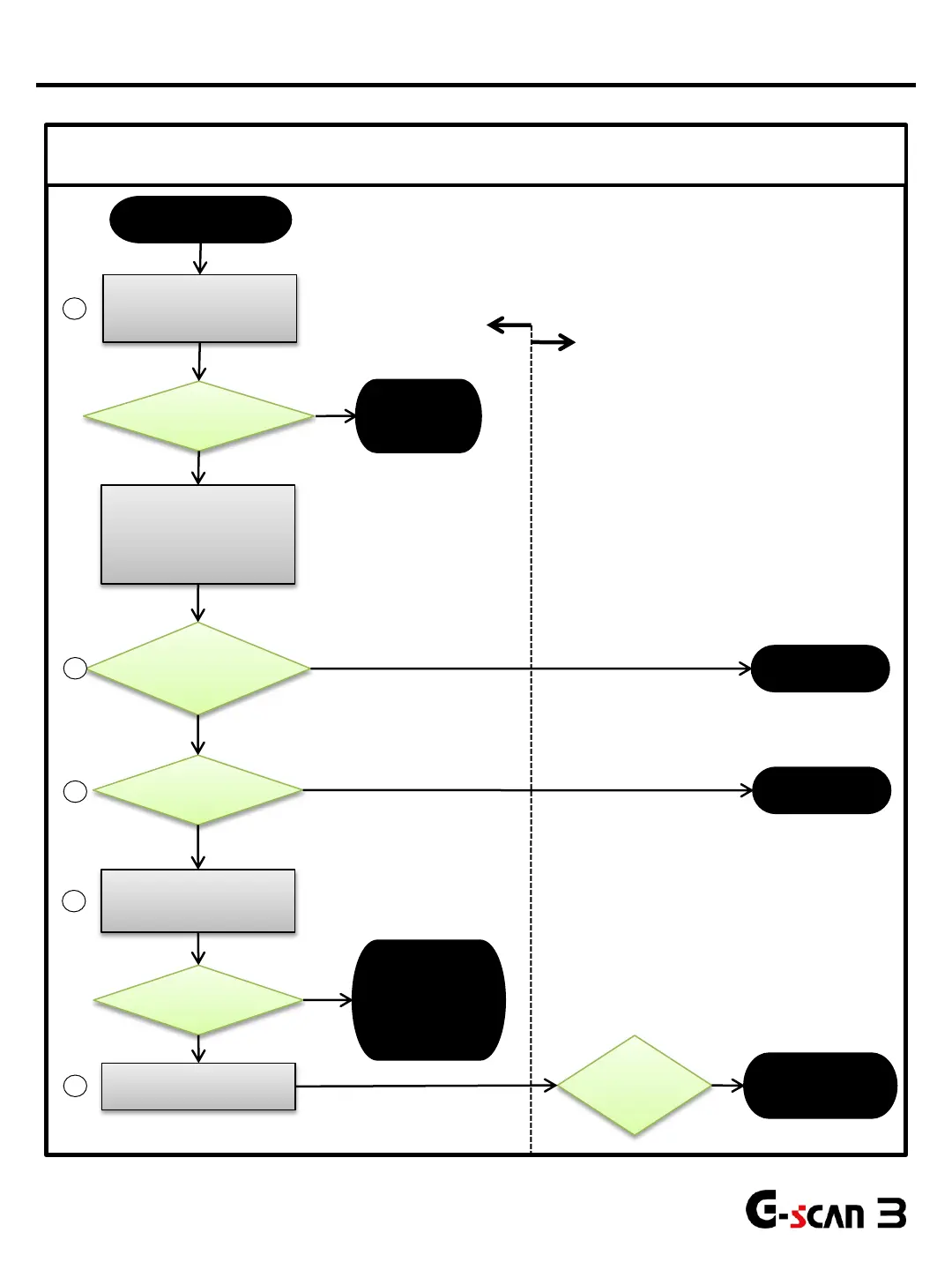

TROUBLE SHOOTING GUIDE
GIT-EZDS
AFTERMARKET DISTRIBUTORSHIP MANUAL
GIT-EZDS AFTERMARKET DISTRIBUTORSHIP MANUAL
Feb 19
th
, 2019
FIRST EDITION
Checked by the customer
Checked by the distributor
16
Check the main DLC cable
and adapter connection.
Is
communication
OK?
Replace the VCI
Attach the self-test adapter
to the end of the main DLC
cable & supply AC/DC power
and execute hardware
self-test function from
configuration menu.
STEP A Error
found?
Press Fix in the
menu and
download the
software again.
Execute Software self-test
function from configuration
menu
Communication error
STEP B Error
Found?
Replace the main
DLC Cable
Found error
during Quick
/Detail self-
test?
Log capture
EZDS
Checks:
software
problem?
Software problem.
Send the patch &
retry diagnosis.
Yes
No
No
No
Yes
Yes
Yes
Make firm
connections
for proper
communication
No
1
2
3
4
5
Communication Problems
To Next Page
