③ Self-Test <Step B>
Select “Step B” from the Self-Test menu.
1. Extend the Self-Test adapter attached to the end of the main DLC Cable to the vehicle-side
diagnostic socket.

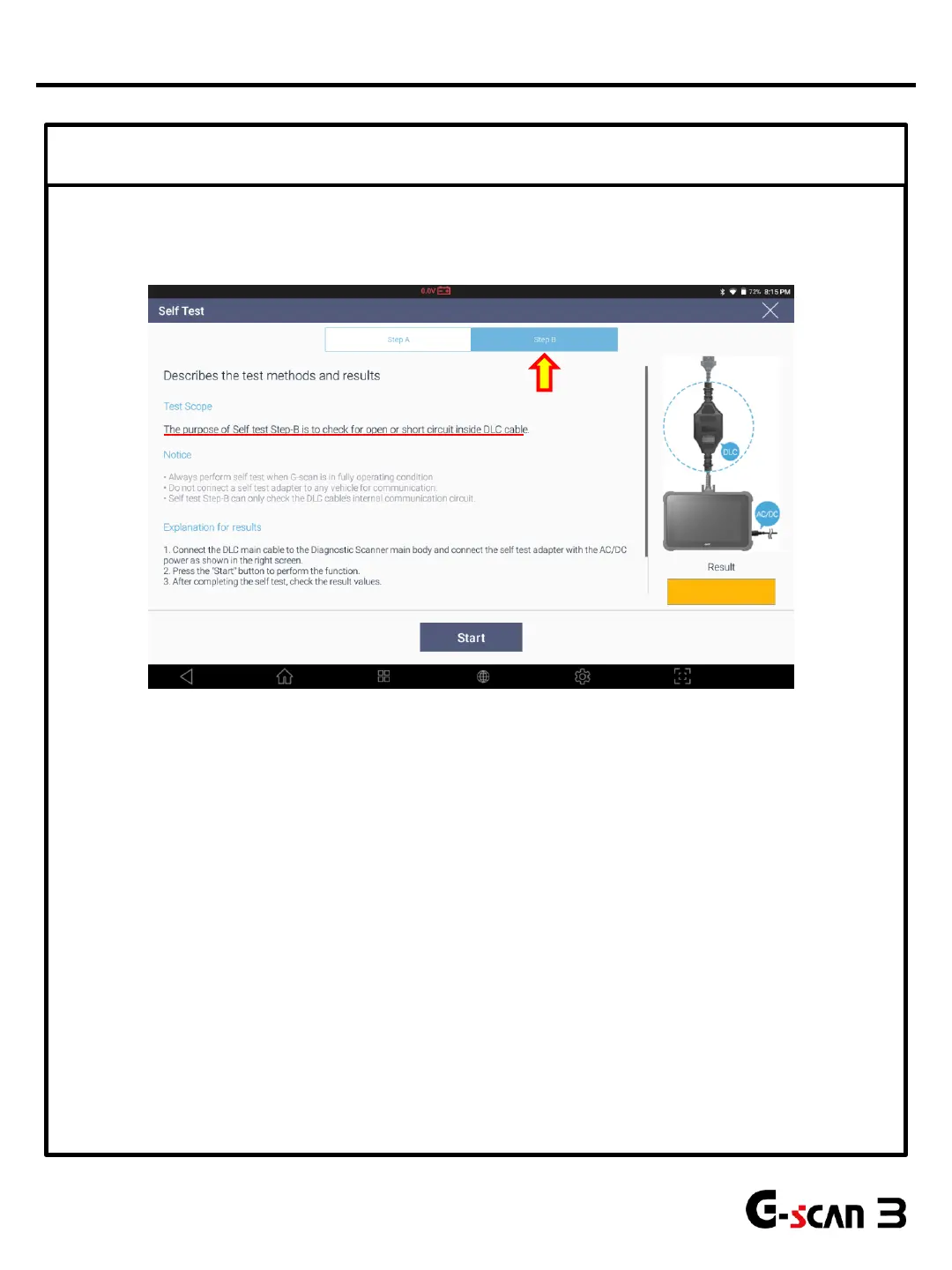

2. Select Step B and click “Start” in the bottom.
3. Check the result.
With Step B test, each communication wire of the main DLC cable is tested to verify if there is any
short or open circuit inside the cable.
 If the result is “No Error Found”, proceed to the step 4.
 If the result is “Error Found”, replace the Main DLC Cable.
