TROUBLE SHOOTING GUIDE
GIT-EZDS
AFTERMARKET DISTRIBUTORSHIP MANUAL
GIT-EZDS AFTERMARKET DISTRIBUTORSHIP MANUAL
Feb 19
th
, 2019
FIRST EDITION

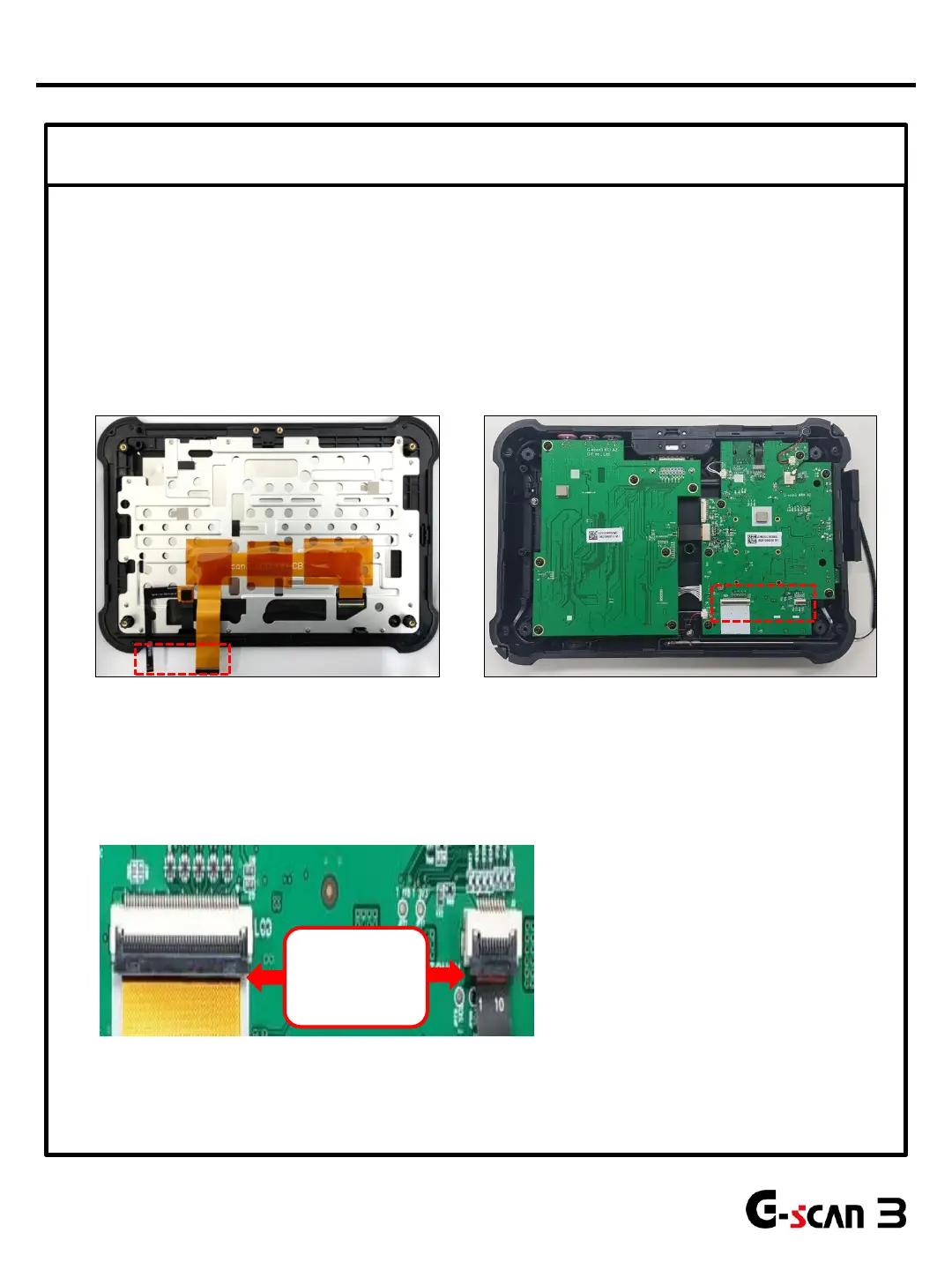

If the brightness is not adjustable, Backlight Control Board of the LCD might be a problem.
Disassemble the front case and replace the LCD module (Refer Part Replacement Manual)
You can see the Kapton tape is attached on the control board.
Kapton tape can be re-attached after replacing the LCD.
• Turn on the power before assembly and check the LCD screen operation.
• Wear gloves as necessary during disassembly and assembly.
LCD Back Light Problem (Replacing Front Case)
26
F-PCB wires
must be aligned
on the line
Front Case
Rear Case
Main Board VCI Board
LCD Problems
To Next Page
