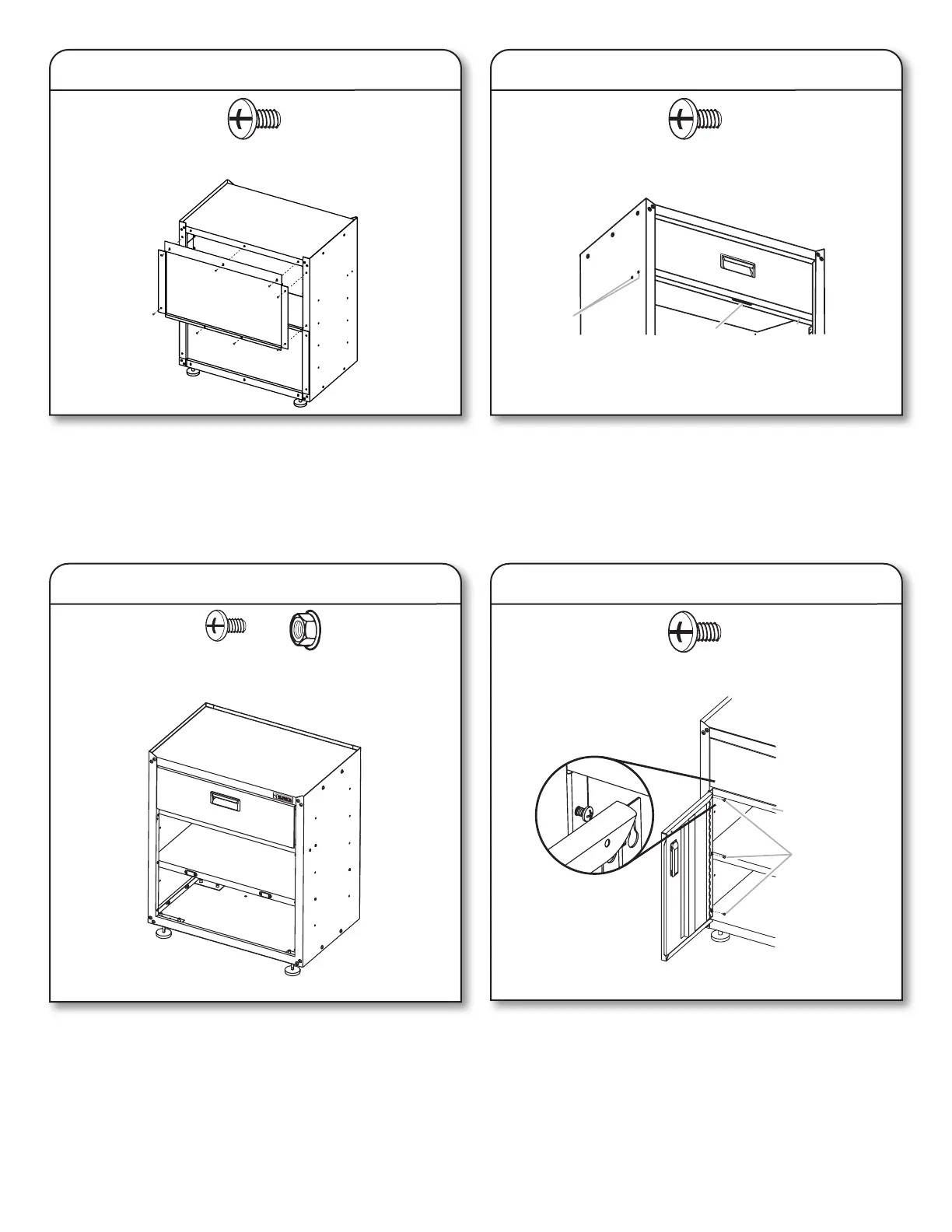

5. Attach Upper Back Panel
Align back panel (P5) with the holes in the top (P2). Using seven
Phillips-head screws (F3c), attach back panel (P5) to the top (P2)
and sides (P1 and P3) as shown. Do not tighten screws completely.
NOTE: Back panel (P5) will slightly overlap back panel (P6) 2.
Using two Phillips-head screws (F3c), attach the upper back
panel (P5) to the lower back panel (P6) as shown. Completely
tighten all back panel screws starting with the sides and
continuing with the top, middle, and bottom.
F3c
F3c Phillips-head screw (9)
P6
P5
P1
P2
D2
6. Install Door Latch Bar
7. Install Shelf 8. Install Doors
IMPORTANT: So the doors will close and lock, the latch bar
(P8) must be installed using the indicated pair of holes on each
cabinet side. Align the latch bar with the pair of holes shown.
NOTE: Make sure the slot in the latch bar is facing down. Using
two Phillips-head screws (F3c) per side, fasten the latch bar (P8)
to the cabinet sides (P1 and P3).
IMPORTANT: The shelf (P9) may be installed using any of the
lower sets of holes in the cabinet sides. Place the shelf (P9) in
the cabinet so that the long edge with the door magnets is facing
out. Align the holes in the shelf ends with the desired set of holes
in the cabinet sides (P1 and P3). Using two Phillips-head screws
(F3c) and two small ange nuts (F5) per side, fasten the shelf to
the cabinet sides (P1 and P3).
IMPORTANT: The door with the lock assembly (P11) should be
installed on the right-hand side of the cabinet. The door hinges
are designed with keyhole slots at the top and bottom so the door
will hang on the cabinet while you are fastening the screws. Start
Phillips-head screws (F3c) in both the top and bottom holes on
each side of the cabinet. Hang the left-hand side door (P10) from
the top and bottom screws, and hand tighten. Insert the middle
two screws through the door hinge into the cabinet and hand
tighten. Repeat steps 2 and 3 to attach the right-hand door (P11).
Align the doors and completely tighten the screws.
F3c
F3c Phillips-head screw (4)
F3c
F3c Phillips-head screw (6)
B
A
P1
D5
P8
F3c F5
F3c Phillips-head screw (4)
F5 Small ange nut (4)
A
D5
P2
P4
P9
P8
P10
P2
P1
P3
D5
P9
A. Holes for installing latch bar
B. Slot in latch bar
A. Screws
To Next Page
