Internal Components
34

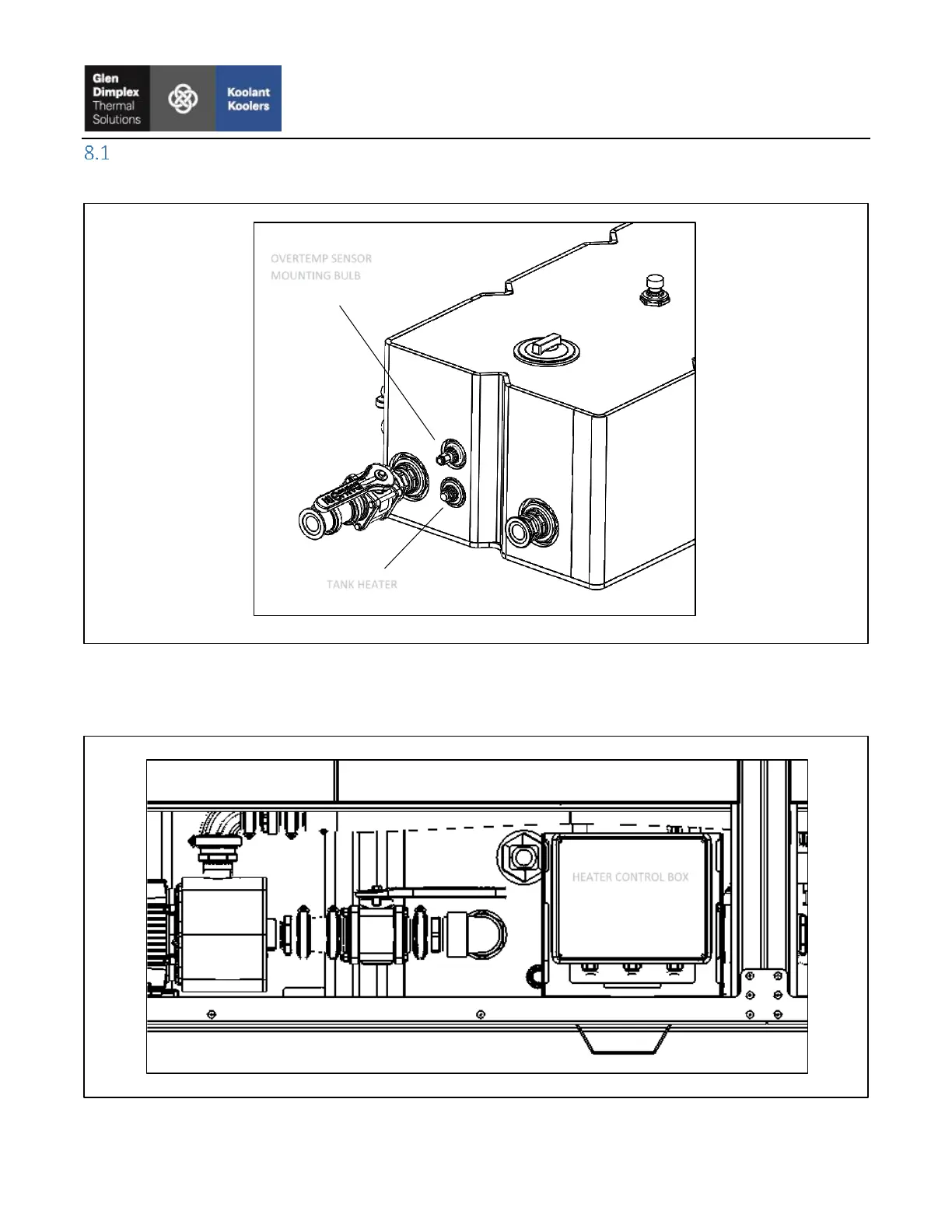

Units Equipped with a Tank Heater
Tank heaters are mounted on the front of the tank with an over temperature switch mounted directly above it.
Figure 23: Tank Heater
Figure 24: Tank Heater Control Box
OVERTEMP SENSOR
MOUNTING BULB
TANK HEATER
HEATER CONTROL BOX
