The Glide Gear DST 50 is a versatile camera mounting system designed for overhead shooting, product photography, and various other applications requiring a stable and adjustable camera position. It offers two primary mounting configurations: attachment to a C-Stand (not included) or a table/desk using the provided Table Clamp (B). This flexibility makes it suitable for both studio and on-location setups.

Function Description:

The core function of the DST 50 is to provide a stable, adjustable arm that can position a camera directly over a subject. This is particularly useful for capturing top-down shots of products, documents, or artistic endeavors, eliminating the need for bulky tripods that can obstruct the workspace. The system allows for precise control over camera height, arm length, arm angle, and camera angle, ensuring optimal framing and perspective for a wide range of creative and professional tasks.

Key Components and Their Functions:

Main Telescopic Pole (A): This is the primary vertical support of the system. Its height can be adjusted to suit different shooting requirements, whether mounted on a C-Stand or a table. The telescopic design allows for compact storage and transport.
Table Clamp (B): Provided for desk or table mounting, this clamp securely attaches the Main Telescopic Pole (A) to a flat surface. It features a tightening screw to ensure a firm grip.
Telescopic Arm (C): Extending horizontally from the Main Telescopic Pole (A), this arm holds the camera platform. Its telescopic nature allows for adjustment of the camera's horizontal reach, enabling the camera to be positioned closer to or further from the main pole.
Locking Screw (D): Used to secure the Main Telescopic Pole (A) to either the Table Clamp (B) or a C-Stand, preventing unwanted movement.
Main Hinge (E): This critical joint connects the Telescopic Arm (C) to the Main Telescopic Pole (A). It allows for adjustment of the arm's angle relative to the vertical pole, providing flexibility in camera positioning. It must be fully locked after adjustment to maintain stability.
Camera Platform (F): Located at the end of the Telescopic Arm (C), this platform is where the camera is mounted. It includes a hinge that allows for independent adjustment of the camera's tilt angle.

Usage Features:

The DST 50 is designed for ease of assembly and adjustment, offering several features that enhance its usability:

Dual Mounting Options:

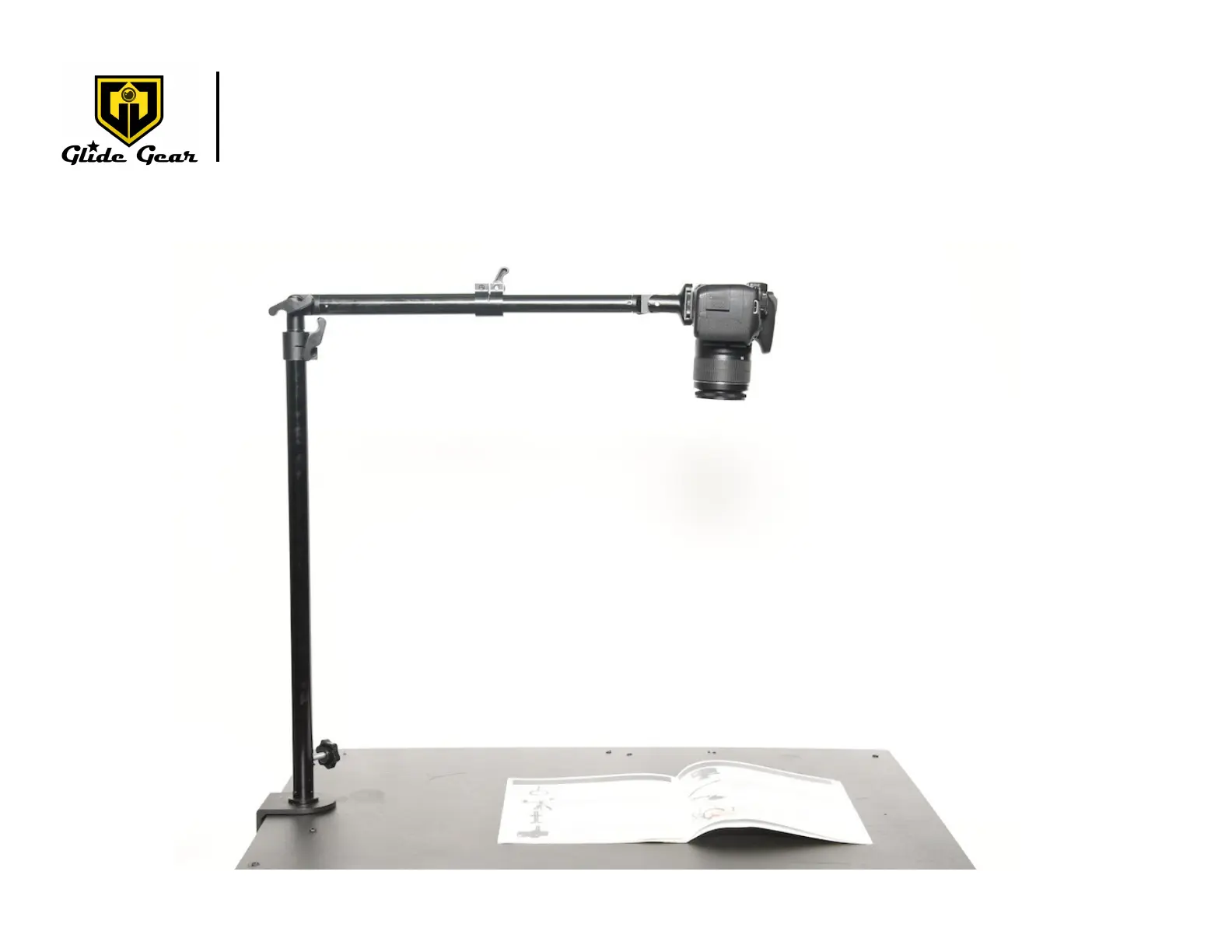

- Table/Desk Configuration: The included Table Clamp (B) allows for direct attachment to any sturdy table or desk. The Main Telescopic Pole (A) slides onto a peg on the clamp and is secured with the Locking Screw (D). This is ideal for fixed setups in a studio or office environment.
- C-Stand Configuration: For users who prefer the stability and versatility of a C-Stand (not included), the Main Telescopic Pole (A) can be mounted directly onto it and secured with the Locking Screw (D). This option is beneficial for dynamic shooting environments or when greater height and stability are required.
Adjustable Height (Vertical Adjustment): The Main Telescopic Pole (A) features a pole clamp that, when loosened, allows the user to adjust the overall height of the camera system. Tightening the clamp locks the pole at the desired height.
Adjustable Arm Length (Telescopic Arm (C) Adjustment): The Telescopic Arm (C) itself is telescopic, meaning its length can be extended or retracted. By loosening and tightening the clamps on the arm, the user can control the horizontal reach of the camera, positioning it precisely over the subject.
Adjustable Arm Angle (Main Hinge (E) Adjustment): The Main Hinge (E) allows the user to change the angle of the Telescopic Arm (C) relative to the Main Telescopic Pole (A). This is crucial for fine-tuning the camera's position and ensuring it is perfectly centered or angled as needed. It's imperative to fully lock this hinge after adjustment to prevent the arm from shifting.
Adjustable Camera Angle (Camera Platform (F) Adjustment): The Camera Platform (F) has its own hinge, allowing the mounted camera to be tilted independently. This feature enables precise control over the camera's pitch, ensuring the lens is perfectly perpendicular to the subject or angled as desired.
Secure Locking Mechanisms: All adjustable joints and telescopic sections are equipped with locking screws or clamps. Users are instructed to ensure all joints are fully locked into position after making adjustments to guarantee the stability and safety of the mounted camera.

Important Technical Specifications (Inferred from images and text):

Material: While not explicitly stated, the robust appearance of the components suggests durable materials, likely aluminum or steel, for stability and longevity.
Mounting Compatibility: Compatible with C-Stands (standard industry size) and tables/desks (thickness limited by the Table Clamp's opening).
Adjustability: High degree of adjustability in height, arm length, arm angle, and camera angle.
Camera Compatibility: Designed to accommodate various cameras, from DSLRs to mirrorless cameras, given the robust nature of the platform. (Specific weight capacity not provided, but implied to handle standard camera setups).

Maintenance Features:

The manual does not explicitly detail maintenance features, but based on the design of such equipment, general maintenance would involve:

Regular Cleaning: Wiping down the poles and clamps to remove dust and debris, which can affect the smooth operation of telescopic parts and locking mechanisms.
Inspection of Locking Mechanisms: Periodically checking all screws, clamps, and hinges for wear or looseness. Tightening any loose components to ensure continued stability and safety.
Lubrication (if applicable): For telescopic parts, a light application of a suitable lubricant might be beneficial over time to maintain smooth extension and retraction, though this should be done sparingly and with appropriate products to avoid attracting dust.
Proper Storage: Storing the DST 50 in a clean, dry environment will prolong its lifespan and prevent corrosion or damage to its components.

In summary, the Glide Gear DST 50 is a highly adaptable and user-friendly camera support system, ideal for professionals and enthusiasts seeking precise overhead camera positioning. Its robust construction, intuitive adjustments, and dual mounting options make it a valuable tool for a variety of photographic and videographic applications.
