Global 390 D - Page 23

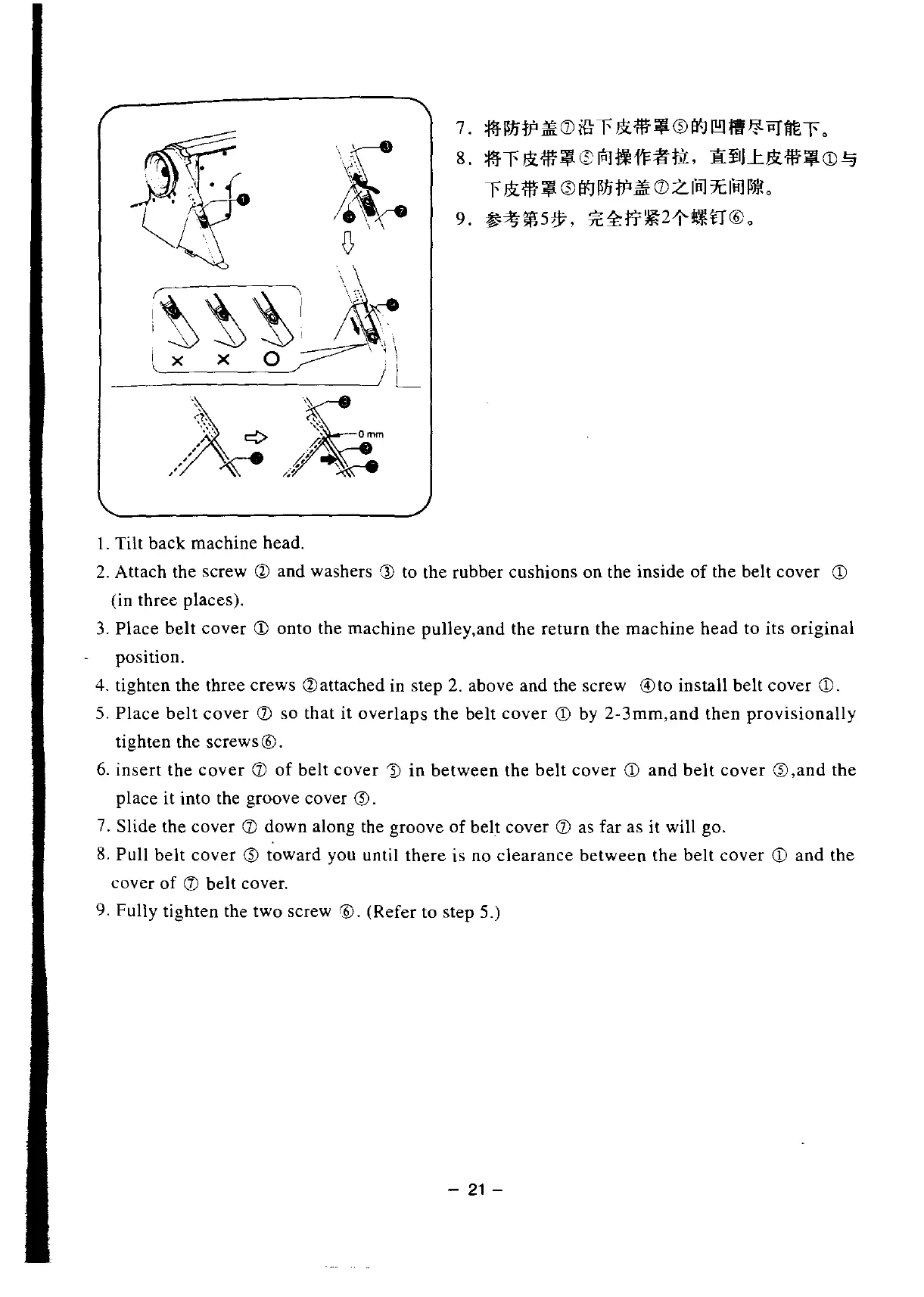

1. Tilt back machine head.
1. -~~-rn~~~-~®~~m~~~~-
s. -~~-~~~-~~~. I~~-•~ro~
~ ~-~ m~~~• rnzfiilxi\!J~ll!.
9. ti:~~5&, ie~fi'~2-N.!UT®.
2. Attach the screw CD and washers @ to the rubber cushions on the inside of the belt cover ro
(in three places).
3. Place belt cover ro onto the machine pulley,and the return the machine head to its original
position.
4. tighten the three crews CD attached in step 2. above and the screw ®to install belt cover ro.
5. Place belt cover rn so that it overlaps the belt cover ro by 2-3mm,and then provisionally
tighten the screws®.
6. insert the cover rn of belt cover'}) in between the belt cover ro and belt cover ®,and the
place it into the groove cover
®.
7. Slide the cover rn down along the groove of belt cover rn as far as it will go.
8. Pull belt cover ® toward you until there is no clearance between the belt cover ro and the
cover
of rn belt cover.
9. Fully tighten the two screw ®.(Refer to step 5.)
- 21-
