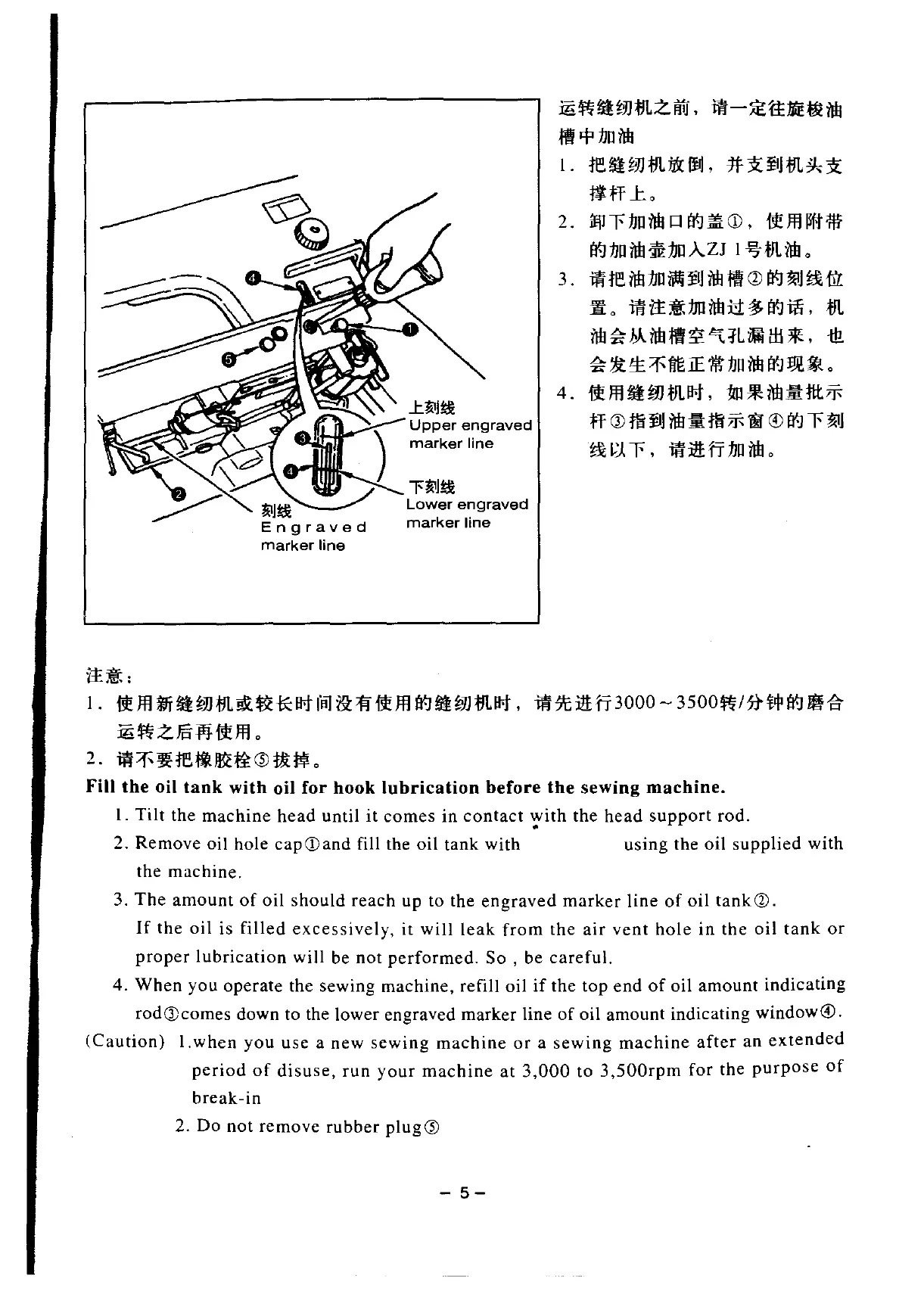

Fill the oil tank with oil for hook lubrication before the sewing machine.
I. Tilt the machine head until it comes in contact with the head support rod .
•
2. Remove oil hole cap CD and fill the oil tank with using the oil supplied with
the
machine.
3. The amount of oil should reach up to the engraved marker line of oil tankcrl.
If the oil is filled excessively, it will leak from the air vent hole in the oil tank or
proper lubrication will be not performed. So , be careful.
4. When you operate the sewing machine, refill oil if the top end of oil amount indicating
rodQ)comes down to the lower engraved marker line of oil amount indicating window®.
(Caution) I. when you use a new sewing machine or a sewing machine after an extended
period of disuse, run your machine at 3,000 to 3,500rpm for the purpose of
break-in
2. Do not remove rubber plugal
- 5-
